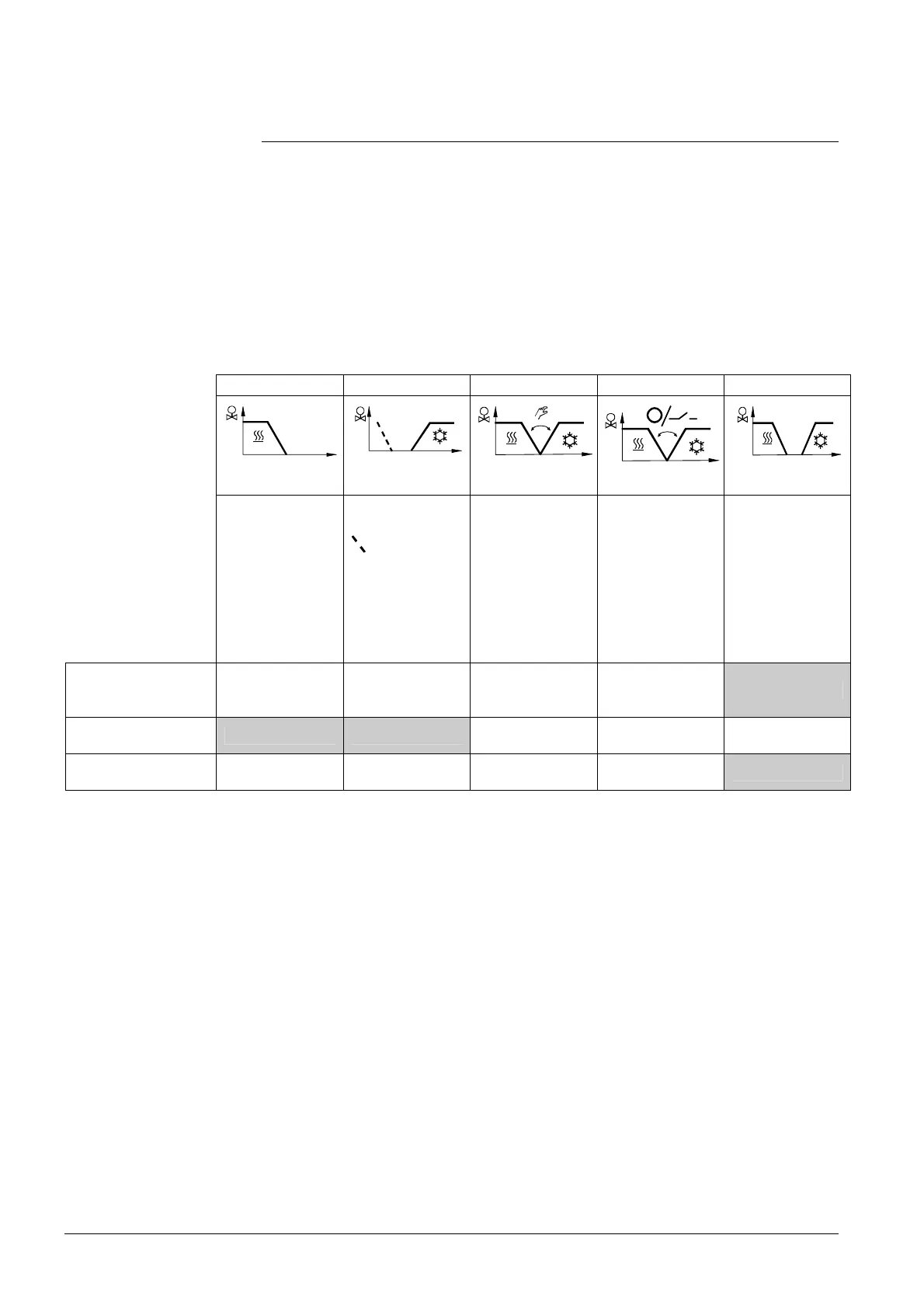

4.7 Control sequences
4.7.1 Sequences overview (setting via parameter P01)
The sequence can be set via parameter P01.
The thermostats can be used in systems featuring:
 Heating only (P01 = 0)
 Cooling only (P01 = 1)
 Manual heating / cooling changeover (P01 = 2)
 Automatic heating / cooling changeover (P01 = 3)
 Heating and cooling mode (e.g. 4-pipe system) (P01 = 4)
The available modes depend on the application
(selected via DIP switch, see section 4.5).
Parameter
P01 = 0 P01 = 1 P01 = 2 P01 = 3 P01 = 4
Sequence
T °C
T °C
T °C
T °C
T
T °C
Mode
Available
for basic
application
1)
:

Heating mode Cooling
= heating
sequence for
el. heater /
radiator
Manually select
heating or
cooling
sequence
(using the
button on the
thermostat)
Automatic
heating/cooling
changeover via
external water
temperature
sensor or
remote switch
Heating and
cooling mode,
i.e. 4-pipe
2-pipe,
2-pipe & el. heater
2-pipe & radiator
   
4-pipe
4-pipe & el. heater

2)

2)

2-stage heating or
cooling
   
1) Chilled / heated ceiling and radiator applications: see section 4.7.9;
Comp
ressor applications: see section 4.7.10.
2)
Manual and automatic changeover for 4-pipe applications, see section 4.7.6:
– 4-pip
e manual changeover (P01 = 2) means activating either cooling or
heating outputs
– 4-pipe automatic changeover (P01 = 3) means swapping the control outputs
according to a heating / cooling sensor or remote switch (main and secondary
application), see section 4.7.6
Note
s
