Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3181en
Building Technologies Mechanical design 14 Dec 2011
7 Mechanical design
7.1 General
The room thermostat consists of 2 sections:
Plastic housing which accommodates the electronics, the operating elements
and the temperature sensor
Mounting plate with the screw terminals
The housing engages in the mounting plate and is secured with 2 screws on the
left side.

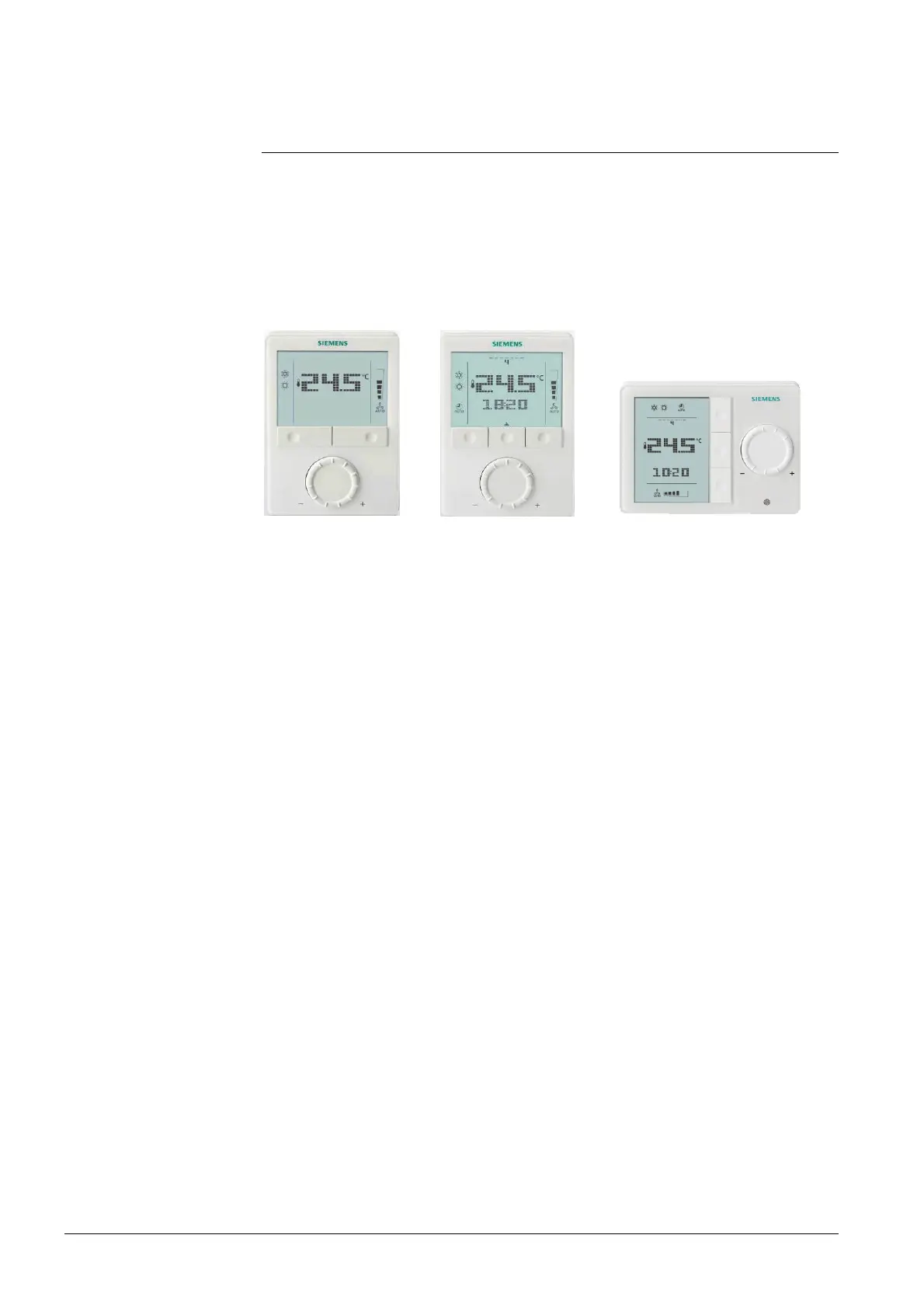

RDG100
RDG110
RDG140
RDG160
RDG100T RDG100T/H
For operation, refer to section 5.2.
