Siemens RDG100T Basic Documentation

59 / 66
Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3181en
Building Technologies Engineering 14 Dec 2011

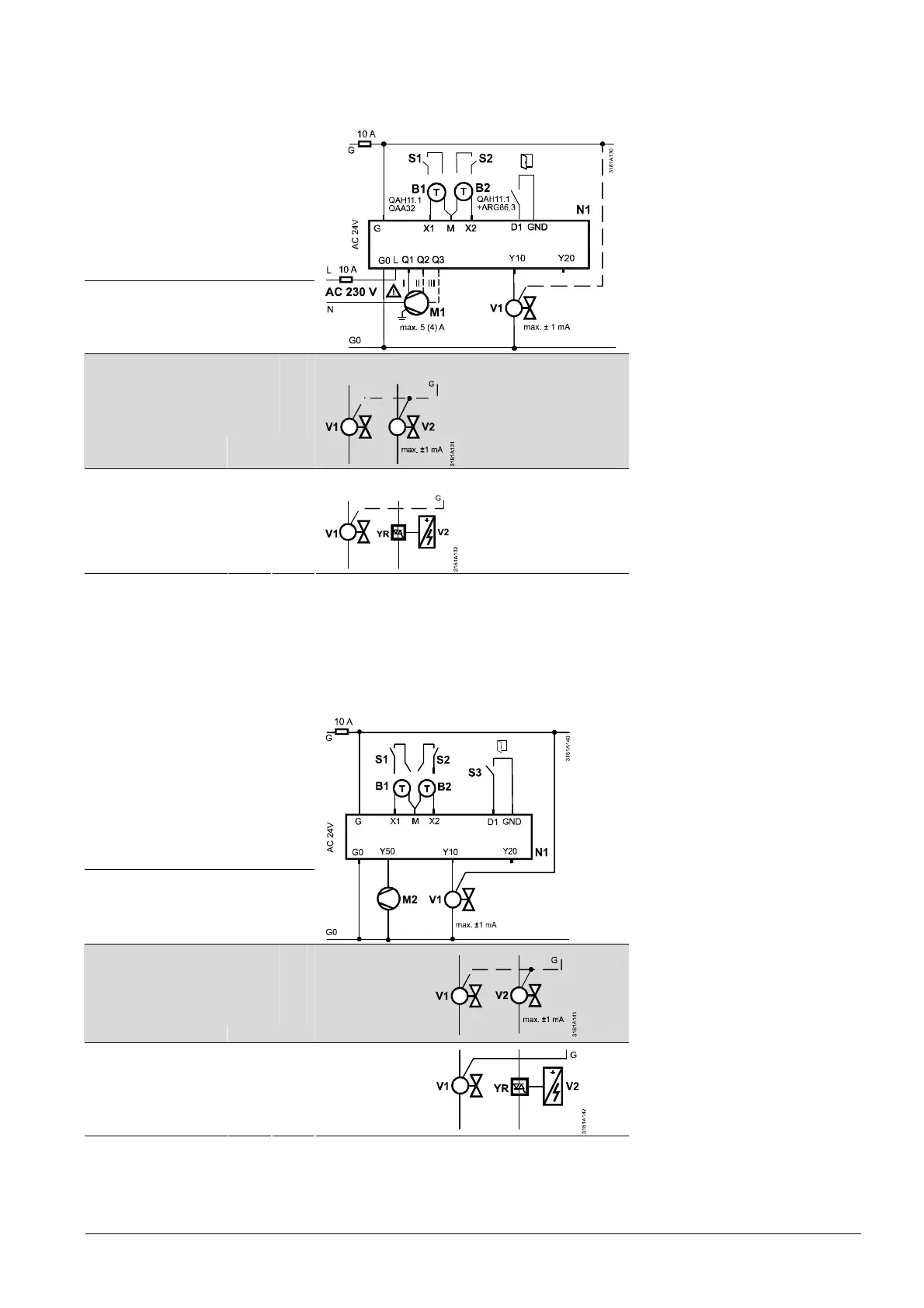

RDG140
1- or 3-speed fan
Application
V1

V2

 2-pipe
YHC
S3
 2-pipe & radiator
 4-pipe
 2-stage
YHC
YH
1st
YR
YC
2nd
 2-pipe & el.
heater
YHC E1
N1 Room thermostat RDG140
M1 1- or 3-speed fan
V Valve actuators DC 0…10 V:
Heating, cooling, radiator
heating / cooling,
1st or 2nd stage
E1 Electric heater
YR DC 0…10 V controlled
converter / current valve
S1, S2 Switch (keycard, window
contact, etc.)
S3 Switch at SELV input
(keycard, window contact)
B1, B2 Temperature sensor (return
air temperature, external
room temperature,
changeover sensor, floor
temperature limit, etc.)
Q Relay outputs
Y DC 0…10 V outputs
YH Heating valve actuator
YC Cooling valve actuator
YHC Heating / cooling valve
actuator
YR Radiator valve actuator
E1 Electric heater with
current valve YR
1
st
/ 2
nd
1
st
/ 2
nd
stage
RDG160
EMC fan DC 0…10 V
Application
V1

V2

 2-pipe
YHC
 2-pipe & radiator
 4-pipe
 2-stage
YHC
YH
1st
YR
YC
2nd
 2-pipe & el.
heater
YHC E1
N1 Room thermostat RDG160
M2 EMC fan DC 0…10 V
V Valve actuators DC 0…10 V:
Heating, cooling, radiator
heating / cooling,
1st or 2nd stage
E1 Electric heater
YR DC 0…10 V controlled
converter / current valve
S1, S2 Switch (keycard, window
contact, etc.)
S3 Switch at SELV input
(keycard, window contact)
B1, B2 Temperature sensor (return
air temperature, external
room temperature,
changeover sensor, floor
temperature limit, etc.)
Y DC 0…10 V outputs
YH Heating valve actuator
YC Cooling valve actuator
YHC Heating / cooling valve
actuator
YR Radiator valve actuator
YE Electric heater with
current valve YR
1
st
/ 2
nd
1
st
/ 2
nd
stage
