Connection

Application examples

A6V11545892_en--_c

165 | 180

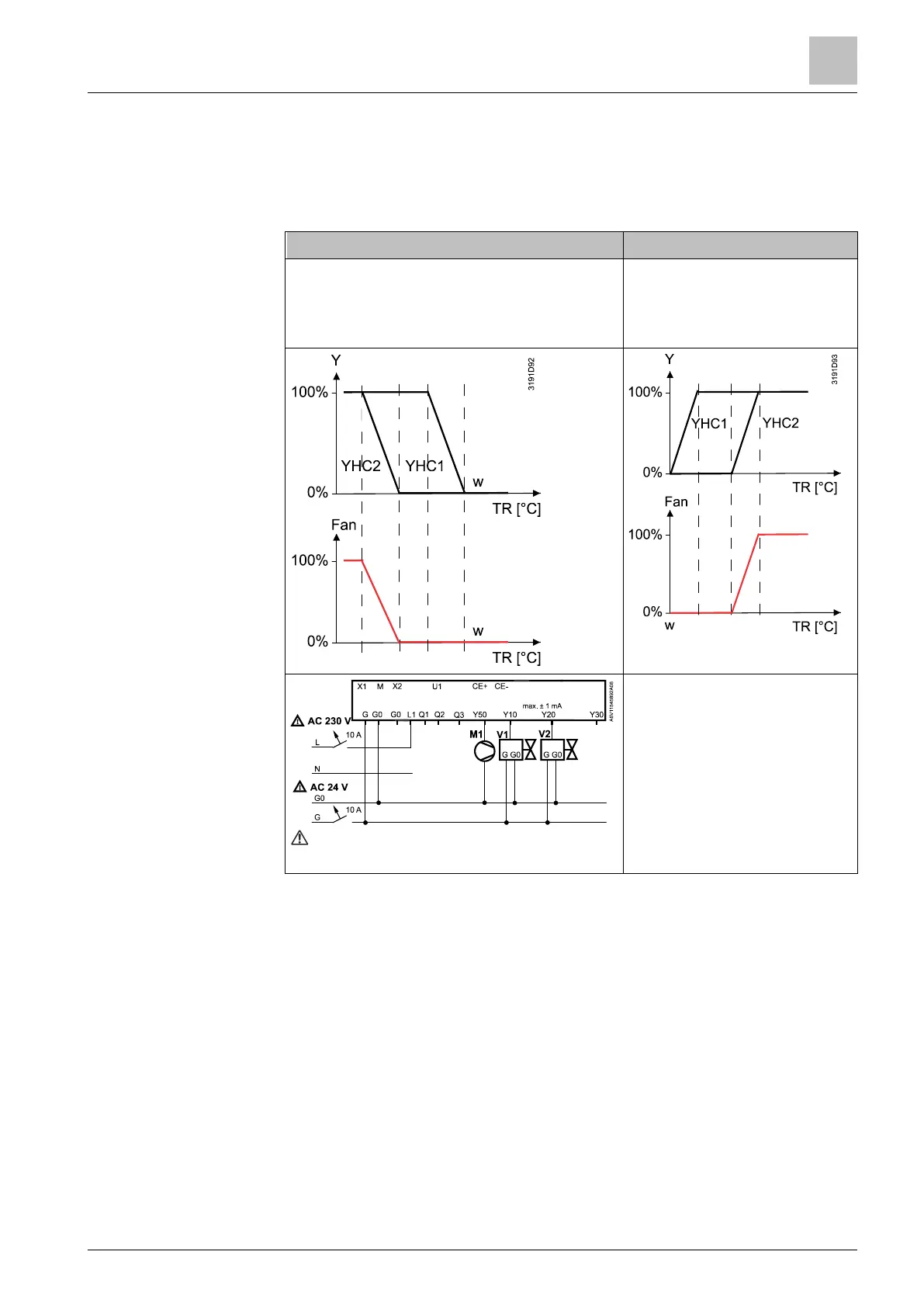

6.4.3 Swap function and/or fan in the 2nd stage

2-pipe fan coil application for floor heating/cooling (2-stage heating/cooling), fan

runs only in the 2

stage:

Commissioning

Outputs used

● Fan P350 = 4 (2

stage)

● Valve P201 = 5 (floor)

● Valve P203 = 5 (fan coil

unit)

● M1 DC 0...10 V fan

● V1 DC valve floor

● V2 DC valve fan coil

units

See Technical data [➙ 170] for min. and

max. ratings

RDG26..KN

Example 1:

Fan in the 2

stage
