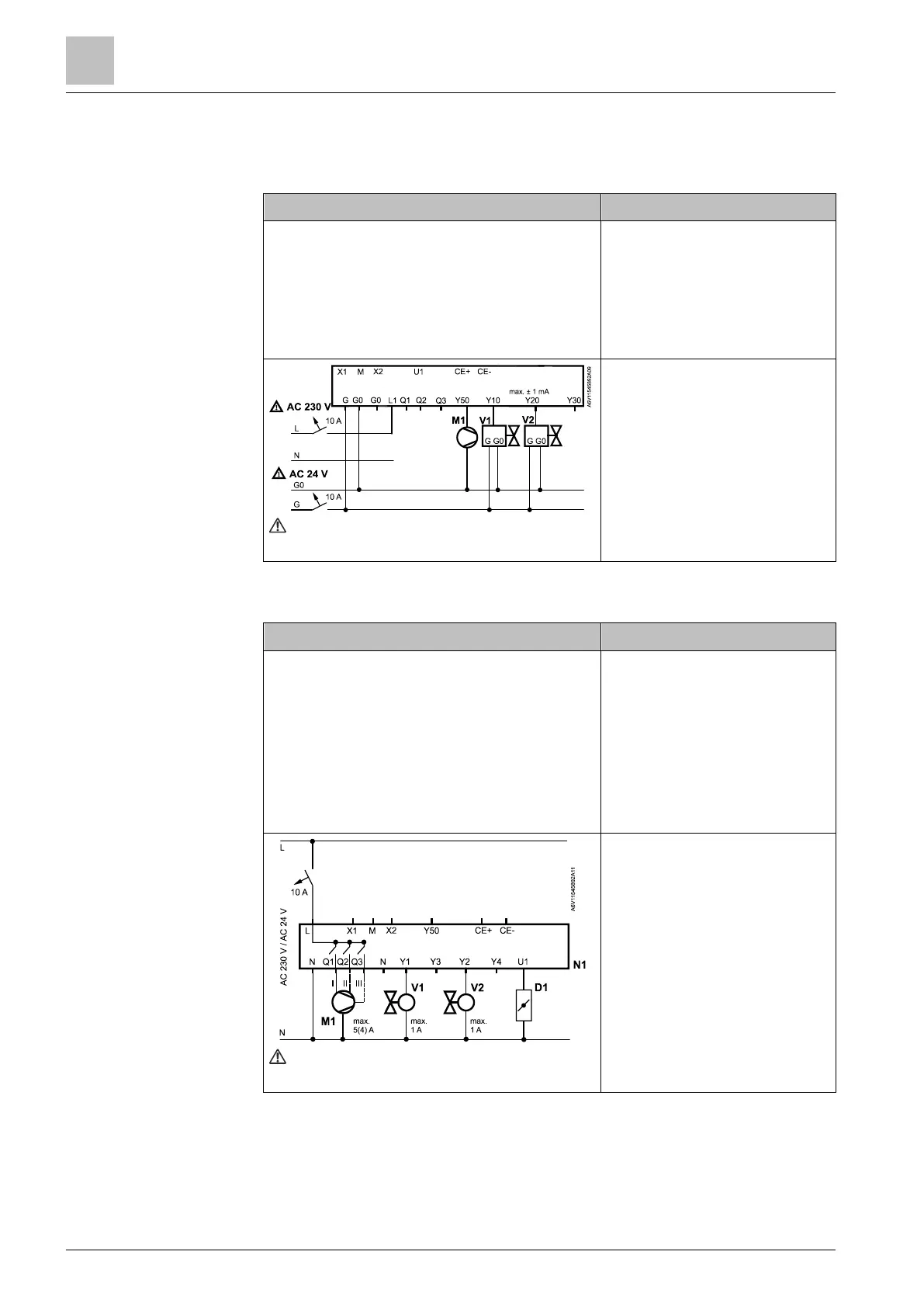

Connection
Application examples
6
168 | 180
A6V11545892_en--_c
Commissioning
Outputs used
Application 4-pipe
Fan P351 = 3 (DC 0...10 V)
Valve P201 = 5 (default)
Valve P203 = 5 (default)
Control strategy P450 = 0 (temp.)
IAQ indication P009 = 7 (text)
M1 DC 0...10 V fan
V1 DC valve
V2 DC valve
See Technical data [ 170] for min. and
max. ratings
RDG264KN
Commissioning
Outputs used
Application 4-pipe
Fan P351 = 2 (3-speed)
Valve P201 = 3 (heating)
Valve P203 = 3 (cooling)
Control strategy P450 = 2 (default)
Damper signal P453 = 1 (DC)
IAQ setpoint P023 = 1000 (def.)
IAQ indication P009 = 6 (ppm)
M1 3-speed fan
V1 PWM valve H
V2 PWM valve C
D1 DC damper
See Technical data [ 170] for min. and
max. ratings
RDG204KN
Example 1:
IAQ monitoring
Example 2:
IAQ control with DC
damper
