Changeover (P001 = 2 or P001 = 3,
P254 = 1) (swap function)

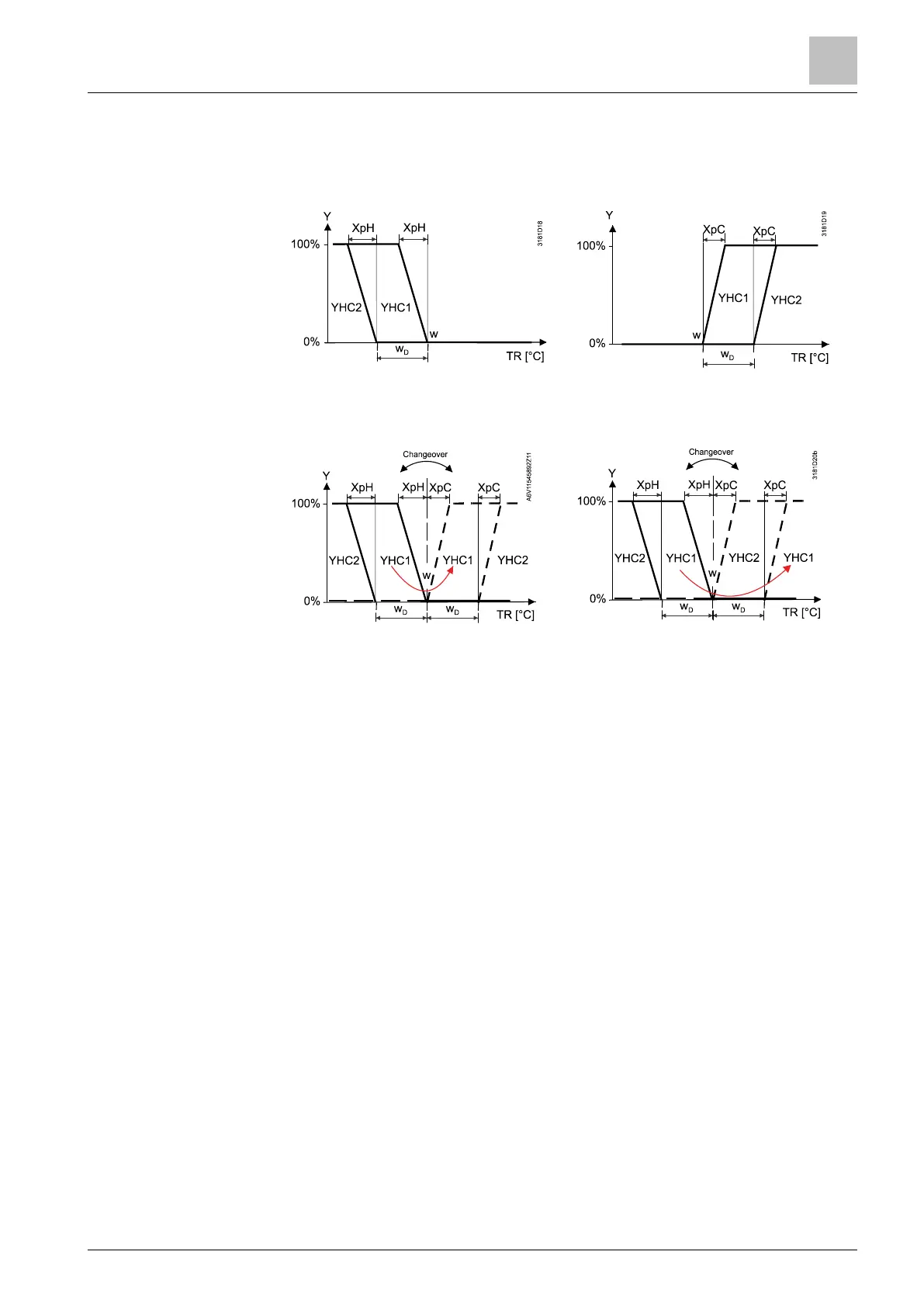

T[°C] Room temperature
w Room temperature setpoint
YHC1 Control command "Stage 1"
YHC2 Control command "Stage 2"
XpH Proportional band "Heating"
(P050)
XpC Proportional band "Cooling"
(P052)
w
D
Setpoint differential (P056)
The diagrams only show the PI thermostat’s proportional part.
For setting sequence and control outputs, see Application overview [➙ 42],
Sequence overview (setting via P001) [➙ 75] and Control outputs [➙ 99].
● For applications with different signals, On/Off (1
st
stage) and DC (2
nd
stage),
heating/cooling P-band modulating (P050, P052), a small switching differential
SDH / SDC (P051, P053) is suggested to start 1
st
sequence as soon as heating
/ cooling demand is requested.
● Set the heating flow limitation function with parameter P256 (RDG26..KN)
when using a PICV in this application. See Additional functions [➙ 47].
