Siemens RDH10RF User Manual

7/10
Siemens Room temperature controllers CE1N3070en
Building Technologies 20.11.2007
Operation
Climatic conditions
Temperature
Humidity
IEC 60 721-3
Class 3K3
0...+45 °C
<85% r.h.
Storage and transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
IEC 60 721-3
Class 2K3
− 25...+70 °C
<93% r.h.
Class 2M2
conformity
EMC directives
Low-voltage directives
Radio equipment
2004/108/EC
2006/95/EC
1999/5/EC
Product safety
Automatic electrical controls for EN 60 730-1 and
household and similar use EN 60 730-2-9
Information technology equipment -
Safety - General Requirements EN 60950-1
Generic standards - Compliance to
lower power electronic apparatus EN 50371-1
Electromagnetic compatibility and radio
spectrum matters–Short range devices EN 300220-3 V1.1.1
Electromagnetic compatibility and radio
spectrum matters – EMC EN 301489-3 V1.4.1
Approval
In the following countries All ECC countries,
Norway, Iceland and Switzerland
Safety class
Degree of pollution
II as per EN 60 730
2
Color
Unit front
Base
Signal-white RAL 9003
Gray RAL 7035
Dimensions 83x104x32 mm

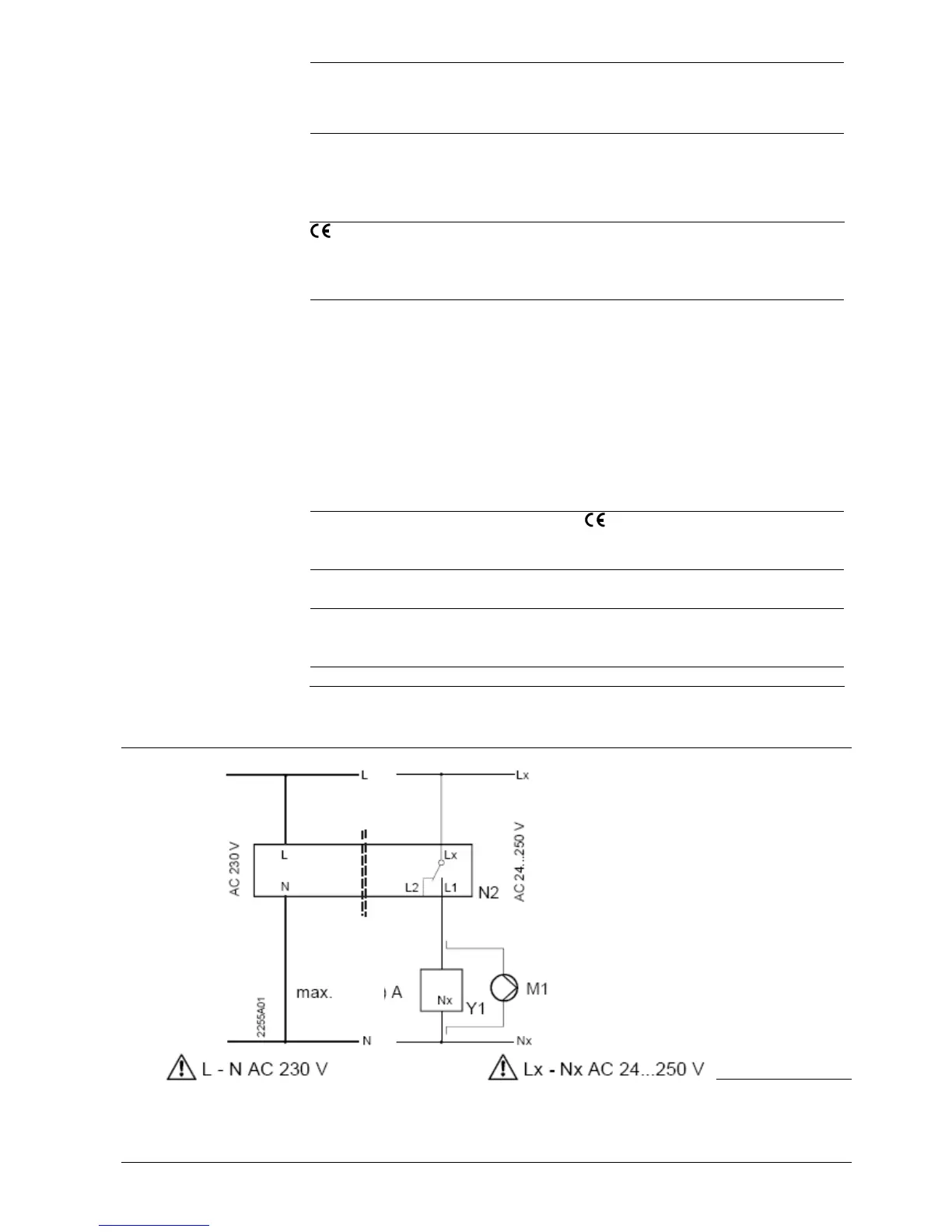

Connection diagram
Environmental conditions
Standards
L Live, AC 230 V
Lx Live, AC 24…250 V
L1 N.O. contact, AC 24…250 V / 8 (3) A
L2 N.C. contact, AC 24…250 V / 8 (3) A
M1 Circulating pump
N Neutral conductor
Nx Neutral conductor
N2 Receiver RCR10/433
Y1 Actuating device
8(3)

Siemens RDH10RF Specifications

General

Mounting	Wall-mounted
Wireless	Yes
Display	LCD
Frost Protection	Yes
Power Supply	Battery
Set Temperature Range	5°C to 30°C
Switching Voltage	230V AC
Wireless Range	30m
