4/10
Siemens Room temperature controllers CE1N3070en
Building Technologies 20.11.2007

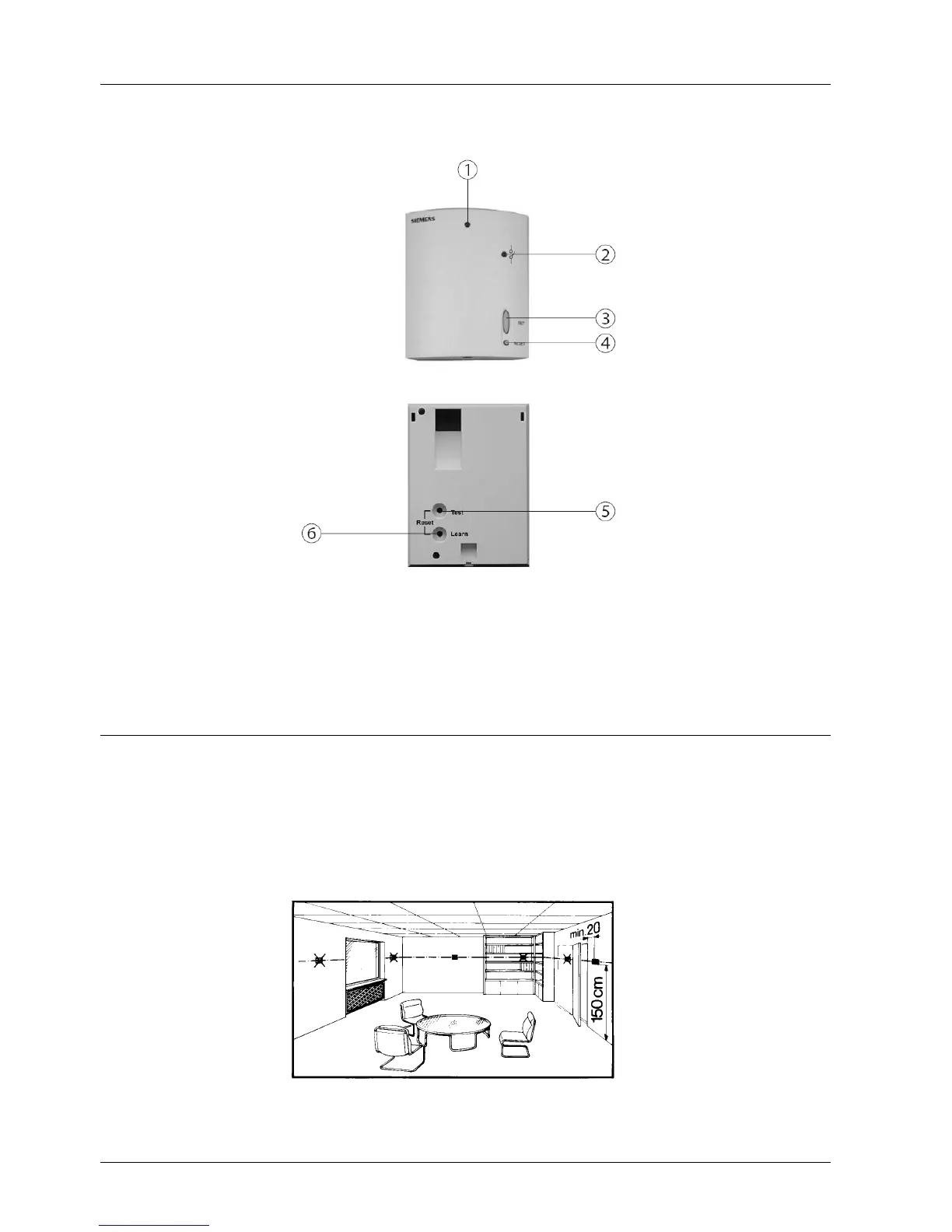

Mechanical design
The RCR10/433 receiver is located in a plastic housing with LEDs and buttons.
1 LED signal indicator
2 LED relay indicator
3 SET button
4 RESET button
5 Test button
6 Learn button
Notes
Mount the room temperature controller in a location where the air temperature can be
acquired as accurately as possible without getting adversely affected by direct solar
radiation or other heat or refrigeration sources.
The controller can also be used in a portable manner. It features a fold-out stand allow-
ing it to be placed on a horizontal surface such as a bedside table.
Mounting height is about 1.5 m above the floor.
The unit can be fitted to a recessed conduit box.
