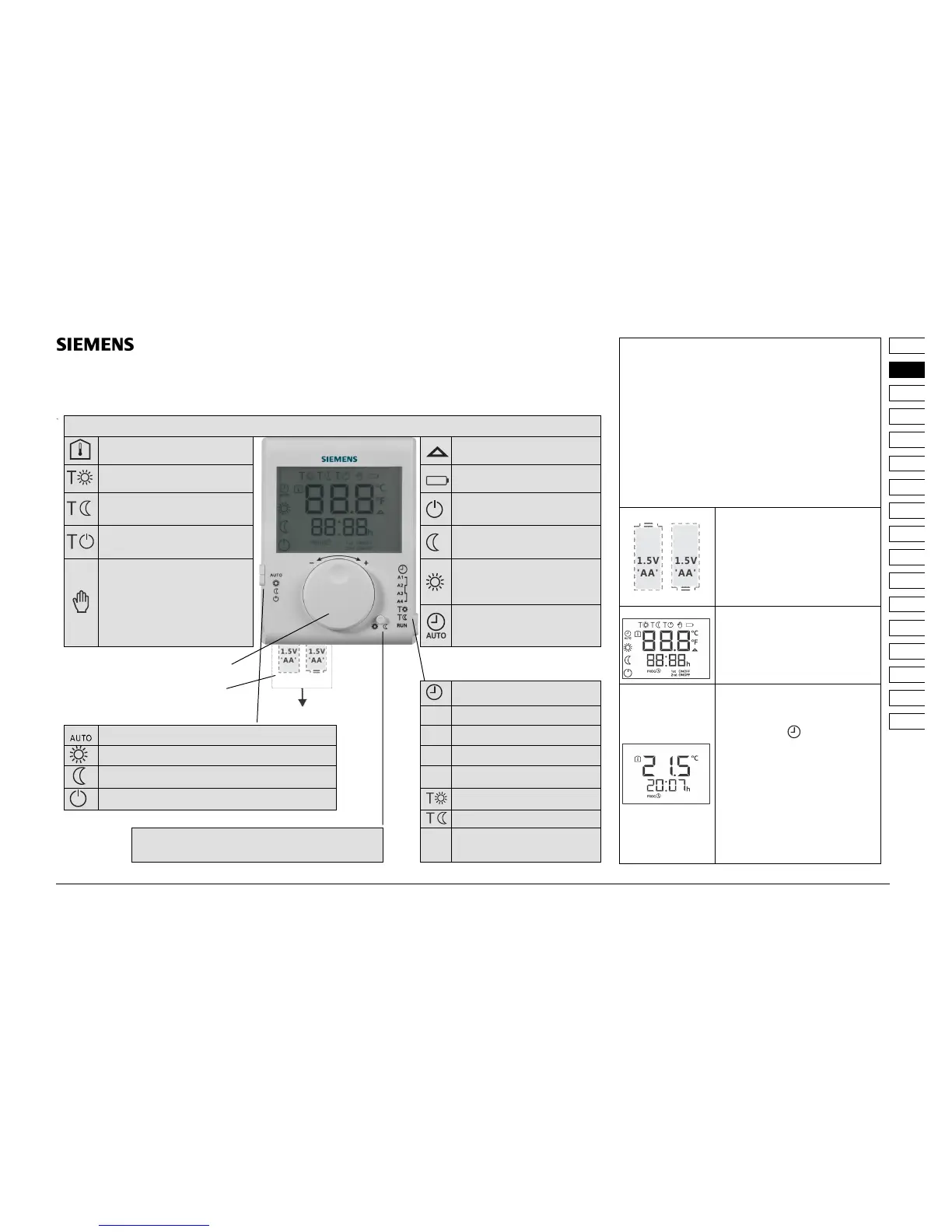

The RDJ100 is a room thermostat with a 24-hour time program that allows you to set the desired room temperature (setpoint)
for the desired time. The unit features an ergonomic setting knob for easy temperature control.
Display
Actual room temperature in ºC
Indicates when heating is
demanded
The unit controls to the selected
comfort temperature
Replace batteries
The unit controls to the selected
energy saving temperature
Frost protection: The unit controls
continuously to frost protection
temperature
The unit controls to the selected frost
protection temperature
Energy saving mode: The unit
controls continuously to energy
saving temperature
Indicates when the temperature
setpoint was changed by the user.
This setpoint will be maintained until
the next switching time. This function
is only active in automatic mode and
comfort mode.
Comfort mode: The unit controls
continuously to comfort temperature
Automatic mode: The unit controls
to the selected time and
temperature programs
2 alkaline batteries type AA, 1.5 V
Time setting position
Operating mode selector
A1
First switch-on time
Automatic mode: The unit controls to the selected time and
temperature programs
A2
First switch-off time
Comfort mode: The unit controls continuously to comfort
temperature
A3
Second switch-on time
Energy saving mode: The unit controls continuously
to energy saving temperature
A4
Second switch-off time
Frost protection: The unit controls continuously to
frost protection temperature. This setpoint is fixed at 5 ºC
Comfort temperature setting
Advance button
Energy saving temperature setting
Switches the operating mode from comfort to energy saving,
or vice versa, until the next switching time in automatic mode
RUN
Set the controller to RUN after
programming is completed
Introduction
This leaflet provides easy-to-follow instructions to set up your
RDJ100 room thermostat.
Contents
Commissioning
Initial power-up
Setting the time
Setting switch-on and switch-off times
Setting the comfort temperature
Setting the energy saving temperature
Changing the current setpoint temporarily
What does the Advance button do?
Changing batteries
Energy saving tips
Commissioning
· Remove the black transit tabs
from the alkaline batteries.
Check to see if the battery
compartment is in its correct
position
· If no batteries are inserted, fit
2 alkaline batteries type AA in
the battery compartment
Initial power-up
Once batteries are inserted, all symbols
are displayed as shown for about
2 seconds.
Setting the time
1. Set the programming selector to
position .The current time
setting flashes
2. Turn the setting knob to the left
to decrease the time, or to the
right to increase the time
3. When the correct time is
displayed, move the
programming selector to any
other position to confirm your
setting
