11/17
Building Technologies Raumtemperaturregler REV23.03RF CE1N2265en
HVAC Products 22.02.2006
• Site REV23.03RF at preferred location for mounting at wall or setting up with stand
• Also refer to “Mounting and siting notes REV23.03RF and REV-R.03/1“
a) Switch off power at REV-R.03/1
b) Switch on REV23.03RF, site at preferred location and press override button
for
about 4 seconds: REV23.03RF transmits test telegrams every 2 seconds.
Transmission of test telegrams stops automatically after 10 minutes or after press-
ing either “ESC” button or override button
c) Switch on power at REV-R.03/1
d) Observe both LEDs on REV-R.03/1 from a distance of 2…3 meters
e) Orange LED_2 must flash briefly every 2 seconds. If LED_2 does not flash every
2 seconds, distance between REV23.03RF and REV-R.03/1 is too far. Mount
REV-R.03/1 closer to REV23.03RF
f) LED_1 shows received signal strength of last telegram:
LED_1 flashes red: Signal is too weak to get a durable link. Mount REV-R.03/1
closer to REV23.03RF
LED_1 flashes green: We distinguish between three signal strengths:
Very good (flashes 3x), Good (flashes 2x) and
Satisfactory (flashes 1x).
As soon as LED_1 flashes in green, link between
REV23.03RFand REV-R.03/1 is basically ok.
g) Move REV-R.03/1 within an area of approximately 1 square meter to find location of
best RF reception. Always observe LEDs from a distance of 2…3 meters. To get a
durable link, we recommend to site REV-R.03/1 at a location where signal strength
is at least “Good”.
4. Site REV23.03RF
5. Find location of
best RF reception

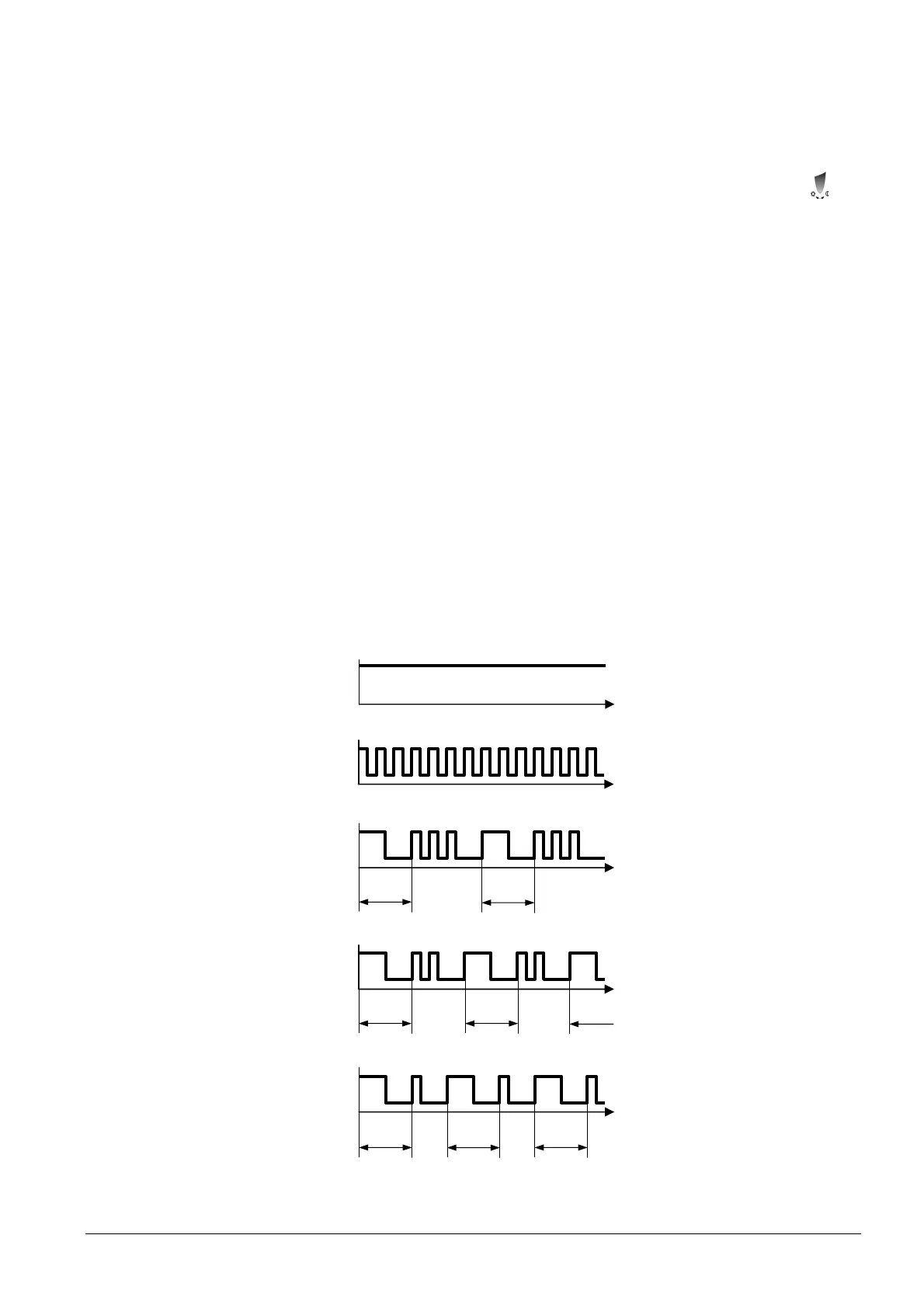

6. Explanations
to LEDs
LED_1 lights always
in red
LED_1 flashes in red
LED_1 flashes
3 times in green
LED_1 flashes
2 times in green
LED_1 flashes
1 time in green
Red on
Red off
Red on
Red off
Green on
Green off
Si
nal stren
th: Ver
ood
1 2 3
1 2 3
Starting
sequence
Starting
sequence
Green on
Green off
Si
nal stren
th: Good
1 2
1 2
Starting
sequence
Starting
sequence
Starting
sequence
Green on
Green off
Si
nal stren
th: Satis
actor
1
1
Starting
sequence
Starting
sequence
1
Starting
sequence
