Menu-driven heating
engineer settings

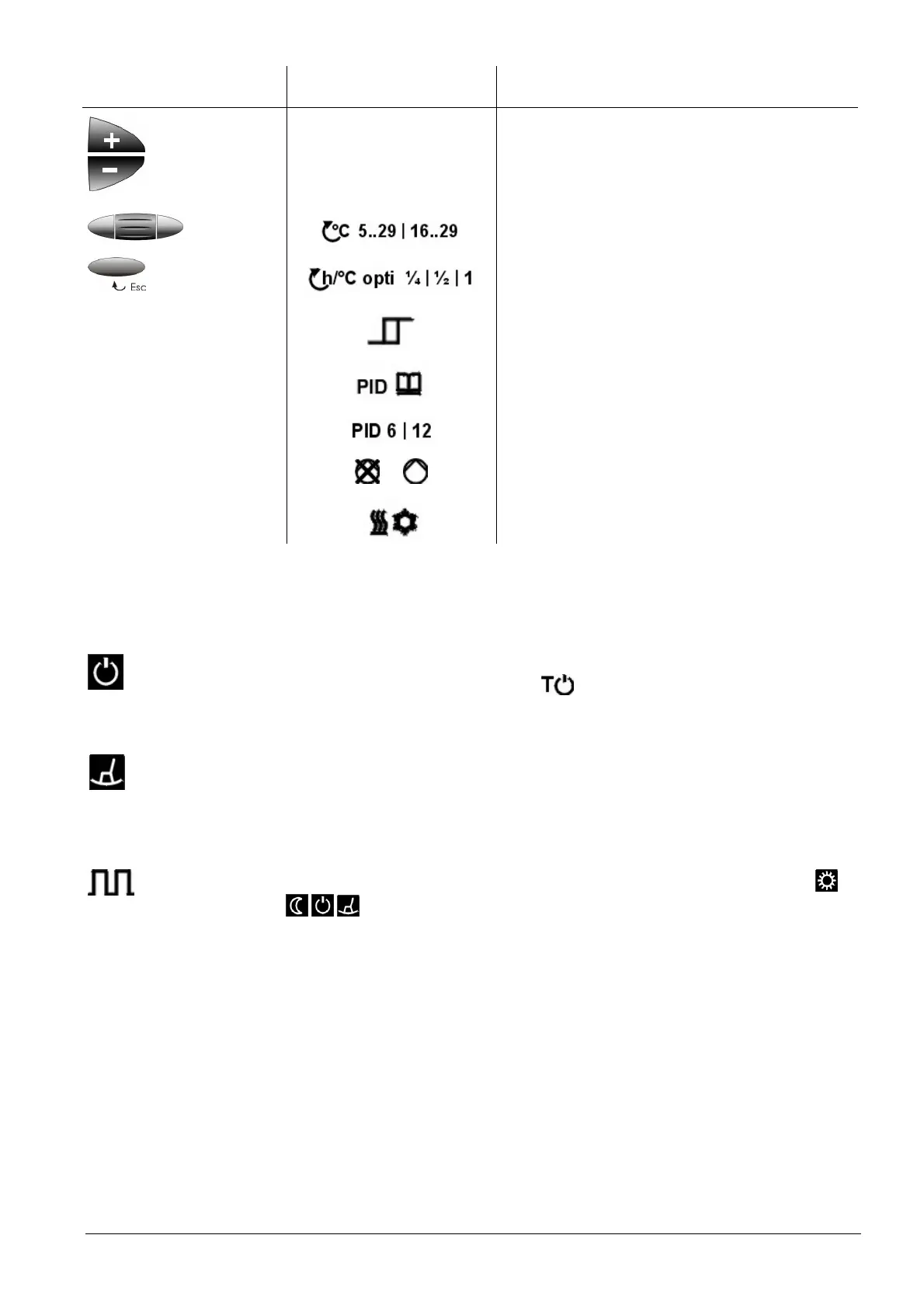

Menu items Settings
CAL
Sensor calibration
Setpoint limitation
Optimum start control for the first heating period
(in unit of time per 1 °C)
2-position control
PID mode, self-learning
PID mode, switching cycle 6 or 12 minutes
/
Periodic pump run off / on
Heating / cooling mode
In automatic operating modes, the temperature setpoints can be individually adjusted
for every comfort period and for the continuous operating modes. The temperature
setpoint of economy mode is the same in automatic and continuous operation.
In frost or overtemperature protection mode, the room temperature is constantly moni-
tored. If it falls (rises) below (above) the adjusted setpoint, control to the adjusted frost
or overtemperature protection setpoint
will be ensured.
The controller operates in 24-hour operating mode according an individually adjustable
24-hour program with 1 heating / cooling period.
To adjust heating / cooling period, select 24-hour operating mode and adjust time pro-
gram and desired temperature setpoint by roller selector.
24-hour operating mode is maintained until another operating mode is selected.
The switching program can be used as a 7-day or 24-hour program, depending on
programming. It is also possible to select one of the continuous operating modes
with which the switching program is not used.
With the 7-day program, all individual days, working days (1-5), weekend (6-7), or the
entire week (1-7) can be programmed.
For each heating / cooling period, 3 different switching patterns are available.
There is a choice of 1, 2 or 3 heating / cooling periods. For each heating / cooling pe-
riod, the start time, end time and comfort setpoint are to be entered.
In between heating / cooling periods, it is always the same economy temperature set-
point that is used. This economy temperature setpoint can be adjusted on the tempera-
ture menu.
