6/17
Building Technologies Raumtemperaturregler REV23.03RF CE1N2265en
HVAC Products 22.02.2006

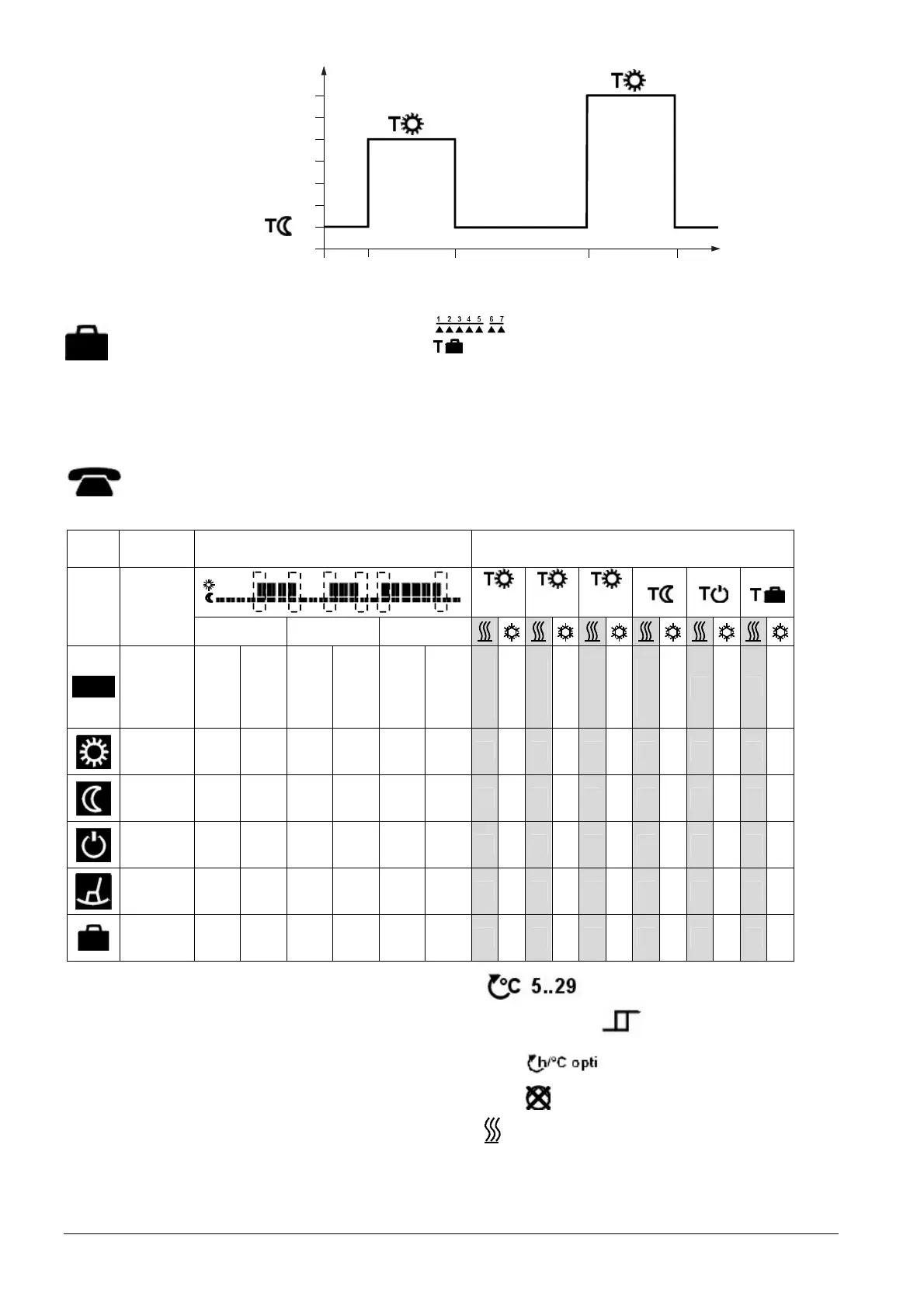

2261Z02
16
°C
18
20
22
08 10 18 22
h
Heizphase 1
Heizphase 2
The holiday function is to be selected on the user menu. Set the start of the holiday
period (day of departure /
/ weekday), the duration of the holiday period and
the temperature setpoint (
). This will enable the controller to maintain the adjusted
temperature for a period of up to 99 days. Every day at midnight, the counter subtracts
one day.
When the holiday period is over, the counter reads 00, and the controller will automati-
cally resume the operating mode selected last.
To be flexible, the REV23.03RF has no connection facility for remote operation.
Switching times Temperatures in ° C
1st
period
2nd
period
3rd
period
Oper-
ating
mode
Block /
week-
days
1st period 2nd period 3rd period
Auto
1-5
Mo-Fr
6-7
Sa-Su
06:00
07:00
08:00
23:00
11:00
13:00
17:00
22:00
19
19
23
23
20
23
21
23
16
16
29
29
1-7
Mo-Su
00:00 24:00
19 23
1-7
Mo-Su
00:00 24:00
16 29
1-7
Mo-Su
00:00 24:00
5 35
1-7
Mo-Su
07:00 23:00
19 23
Absence 12 30
Setpoint limitation
Control mode 2-Point control
Optimum start control OFF
Periodic pump run OFF
Heating active
Example with 2 heating
periods per day
Holiday function
Remote operation
Factory settings
Factory settings
Heating engineer level
