Siemens REV23.03RF User Manual

15/17
Building Technologies Raumtemperaturregler REV23.03RF CE1N2265en
HVAC Products 22.02.2006

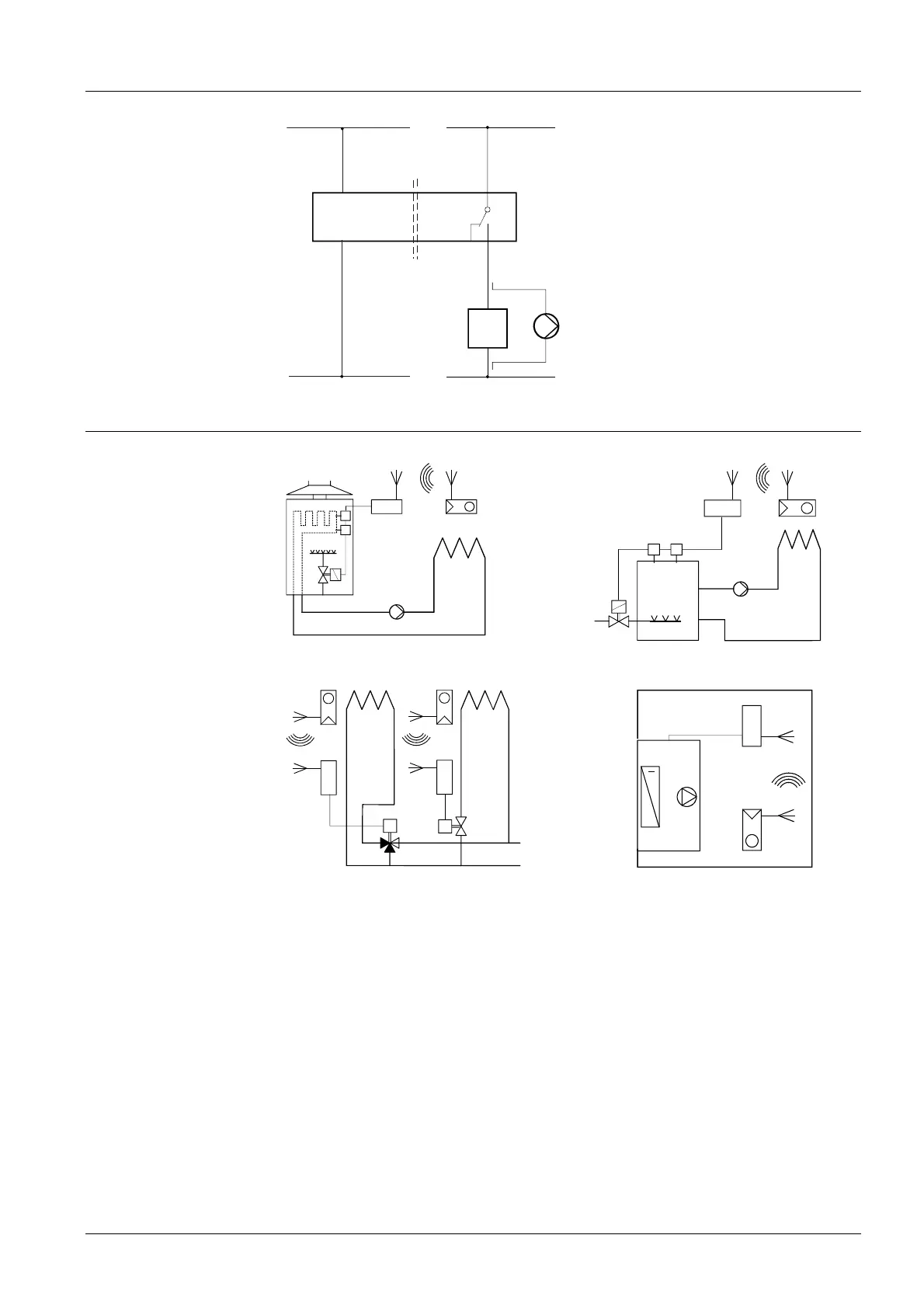

Connection diagram receiver REV-R.03/1
L Live conductor, AC 230 V
N Neutral conductor, AC 230 V
Lx Live, AC 24...250 V
L1
N.O. contact,
AC 24...250 V / 6 (2.5) A
L2
N.C. contact,
AC 24...250 V / 6 (2.5) A
M1 Circulating pump
N2 Receiver REV-R.03/1
Lx
L1
Y1
M1
N2
Nx
L
N
L2
2255A01
AC 230 V
AC 24...250 V
Lx
Nx
N
L
Y1 Actuating device
Application examples
T
T
F1
F2
N2
M1
Y2
2255S01
N1
T
F1
F2
N2
M1
Y2
2255S02
T T
T
N1
Instantaneous hot water heater Atmospheric gas burner
N1
Y4
2255S03
Y3
N2
T
N4
T
N3
T
N1
2255S05
E1
N2
Zone valve Cooling equipment

Siemens REV23.03RF Specifications

General

Brand	Siemens
Model	REV23.03RF
Category	Temperature Controller
Language	English
