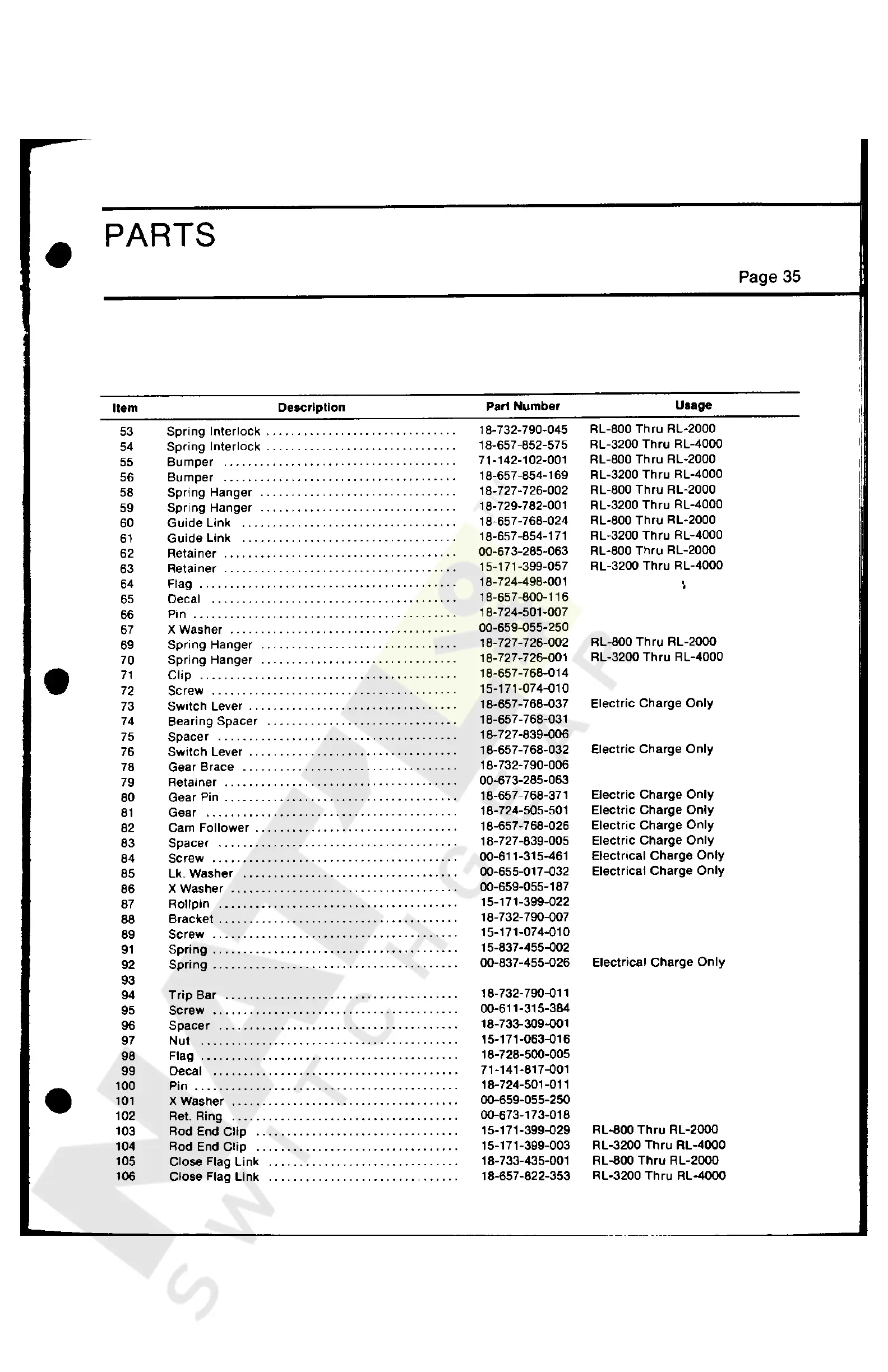

Siemens RL Instructions

•
PARTS
Page 35
Item
Description
Part
Number
Usage
!I
,.
53
Spring Interlock
' ..............................
18-732-790-045
RL-800
Thru RL-2000
54 Spring
Interlock
...............................
18-657-852-575
RL-3200
Thru RL-4000
55 Bumper
......................................
71-142-102-001
RL-800
Thru RL-2000
56
Bumper
......................................
18-65 7 -854-169
RL-3200
Thru RL-4000
58 Spring Hanger
................................
18-727-726-002
RL-800
Thru RL-2000
59
Spring Hanger
................................
18-729-782-001
RL-3200
Thru RL-4000
60
Guide Link
...................................
18-657-768-024
RL-800
Thru RL-2000
61
Guide Link
......... ' .........................
18-657-854-171
RL-3200
Thru RL-4000
62
Retainer
......................................
00-67 3-285-063
RL-800
Thru RL-2000
63
Retainer
............ ' .........................
15-171-399-057
RL-3200
Thru RL-4000
64 Flag
. . . . . . . . . . . ' ..............................
18-724-498-001
•
•
65
Decal
........................................
18-657-800-116
66
Pin
...........................................
18-724-501-007
67 X Washer
............. ' .......................
00-659-055-250
69
Spring Hanger
........ ' .......................
18-727-726-002
RL-800
Thru RL-2000
70
Spring Hanger
........ ' .......................
18-727-726-001
RL-3200
Thru RL-4000
•
71
Clip
..........................................
18-657-768-014
72 Screw
........................................
15-171-074-010
73
Switch Lever
..................................
18-657-768-037
Electric Charge Only
74 Bearing Spacer
...............................
18-657-768-031
75 Spacer
.......................................
18-727-839-006
76
Switch Lever
.......... ' .......................
18-65 7 -768-032
Electric Charge Only
78
Gear Brace
........... ' .......................
18-732-790-006
79
Retainer
.............. ' .......................
00-673-285-063
80
Gear Pin
......................................
18-657-768-371
Electric
Charge Only
81
Gear
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-724-505-501
Electric Charge Only
82 Cam
Follower
.................................
18-657-768-026
Electric Charge Only
83
Spacer
.......................................
18-727-839-005
Electric
Charge Only
84 Screw
........................................
00-611-315-461
Electrical Charge Only
85
Lk. Washer
...................................
00-655-017-032
Electrical
Charge Only
86
X Washer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-659-055-187
87
Rollpin
.......................................
15-171-399-022
88
Bracket
.......................................
18-732-790-007
89
Screw
........................................
15-171-074-010
91 Spring
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-837-455-002
92
Spring
........................................
00-837-455-026
Electrical
Charge Only
93
94
Trip Bar
......................................
18-732-790-011
95
Screw
........................................
00-611-315-384
96
Spacer
.......................................
18-733-309-001
97
Nut
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-171-063-016
98
Flag
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-728-500-005
99 Decal
........................................
71-141-817-001
•
100 Pin
. ..........................................
18-724-501-011
101 X Washer
.....................................
00-659-055-250
102 Rel. Ring
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-673-173-018
103
Rod End
Clip
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-171-399-029
RL-800
Thru RL-2000
104 Rod End
Clip .................................
15-171-399-003
RL-3200
Thru RL-4000
105 Close Flag
Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-733-435-001
RL-800
Thru RL-2000
106 Close Flag
Link
...............................
18-657-822-353 RL-3200 Thru RL-4000
