Siemens RL Instructions

r
'
'
!
;, I
I
I
' .
I
_,

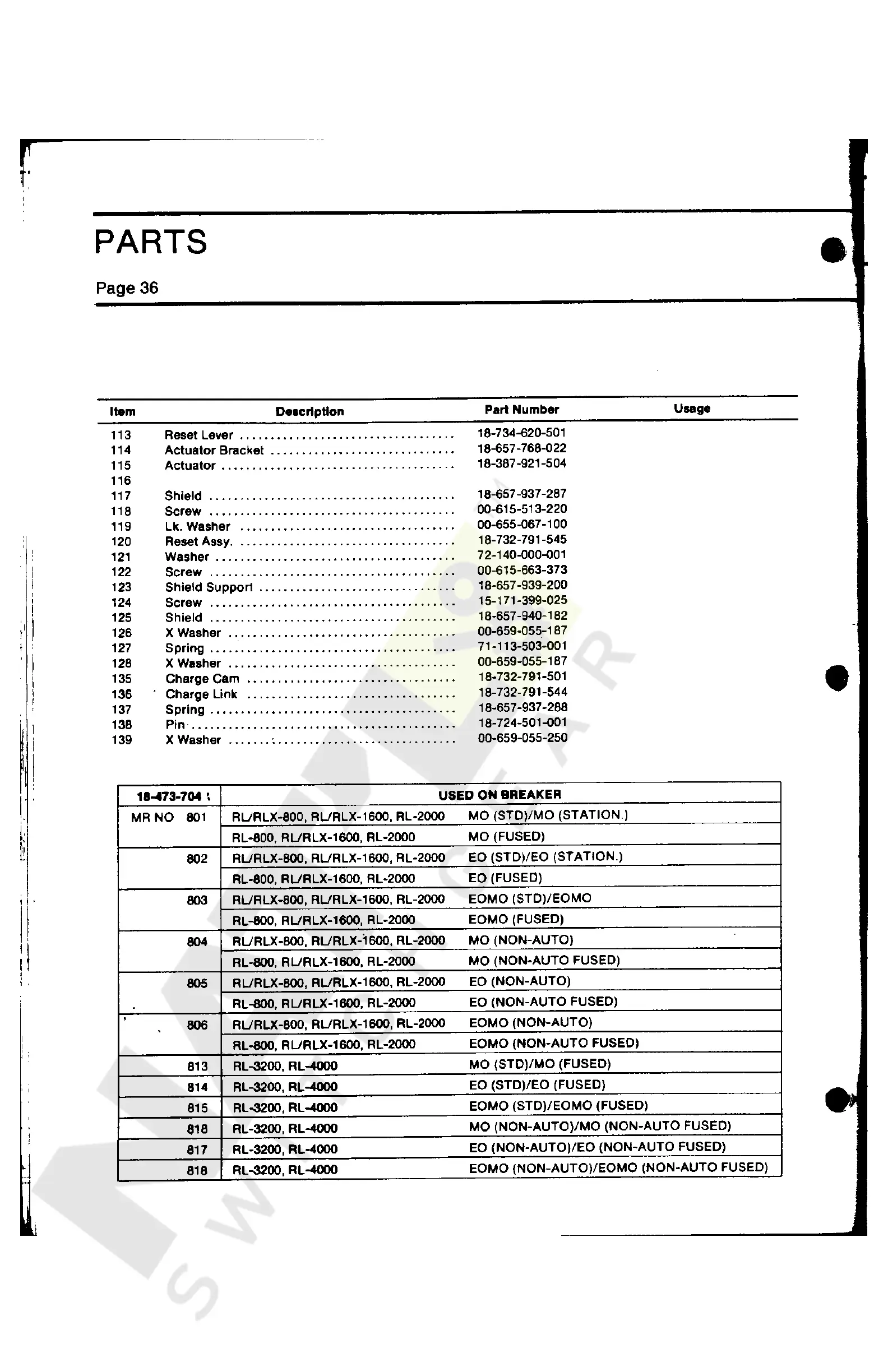

PARTS
Page 36
Item
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
135
136
137
138
139
Description
Reset Lever
.................................. .
Actuator Bracket
............................ ..
Actuator .................................... ..
Shield ....................................... .
Screw
....................................... .
Lk. Washer
.................................. .
Reset Assy
................................... .
Washer
...................................... .
Screw
...................................... ..
Shield Support ............................... .
Screw
....................................... .
Shield
....................................... .
XWasher .................................... .
Spring
....................................... .
XWasher .................................... .
Charge Cam ................................. .
Charge Link
................................ ..
Spring ...................................... ..
Pin ......................................... ..
XWasher ....... , ............................ .
Part Number
18-734-620-501
18-657-768-022
18-387-921-504
18-657-937-287
00-615-513-220
00-655-067-100
18-732-791-545
72-140-000-001
00-615-663-373
18-657-939-200
15-171-399-025
18-657-940-182
00-659-055-187
71-113-503-001
00-659-055-187
18-732-791-501
18-732-791-544
18-65 7-937-288
18-724-501-001
00-659-055-250
Usage
18-473-704 I
USED ON BREAKER
MANO
801
RURLX-800, RURLX-1600, RL-2000
MO (STD)/MO (STATION.)
RL-800, RURLX-1600, RL-2000
MO (FUSED)
802
RURLX-800, RURLX-1600, RL-2000
EO (STD)/EO (STATION.)
RL-800, RURLX-1600, RL-2000
EO (FUSED)
803
RURLX-800, RURLX-1600, RL-2000
EOMO (STD)/EOMO
RL-800, RURLX-1800, RL-2000
EOMO (FUSED)
804
RURLX-800, RURLX-1600, RL-2000
MO (NON-AUTO)
RL-800, RURLX-1600, RL-2000
MO (NON-AUTO FUSED)
805
RURLX-800, RURLX-1600, RL-2000
EO (NON-AUTO)
RL-800, RURLX-1600, RL-2000
EO (NON-AUTO FUSED)
'
806
RURLX-800, RURLX-1600, RL-2000
EOMO (NON-AUTO)
RL-800, RURLX-1600, RL-2000
EOMO (NON-AUTO FUSED)
813
RL-3200, RL-4000
MO (STD)/MO (FUSED)
814
RL-3200, RL-4000
EO (STD)/EO (FUSED)
815
RL-3200, RL-4000
EOMO (STD)/EOMO (FUSED)
816
RL-3200, RL-4000
MO (NON-AUTO)/MO (NON-AUTO FUSED)
817
RL-3200, RL-4000
EO (NON-AUTO)/EO (NON-AUTO FUSED)
816
RL-3200, RL-4000
EOMO (NON-AUTO)/EOMO (NON-AUTO FUSED)
•
•
