Siemens RUGGEDCOM RSG907R Installation Guide

RUGGEDCOM RSG907R
Installation Guide
Chapter 2
Installing the Device
Connecting the Device to the Network 19
Port Connect To...
A Not used
B Not used
5 (Coupler) Connect to an Ethernet-capable device if the
RUGGEDCOM RSG907R is configured as an HSR or
PRP RedBox
1 to 4 Connect to an Ethernet-capable device
2
1
2
1
3

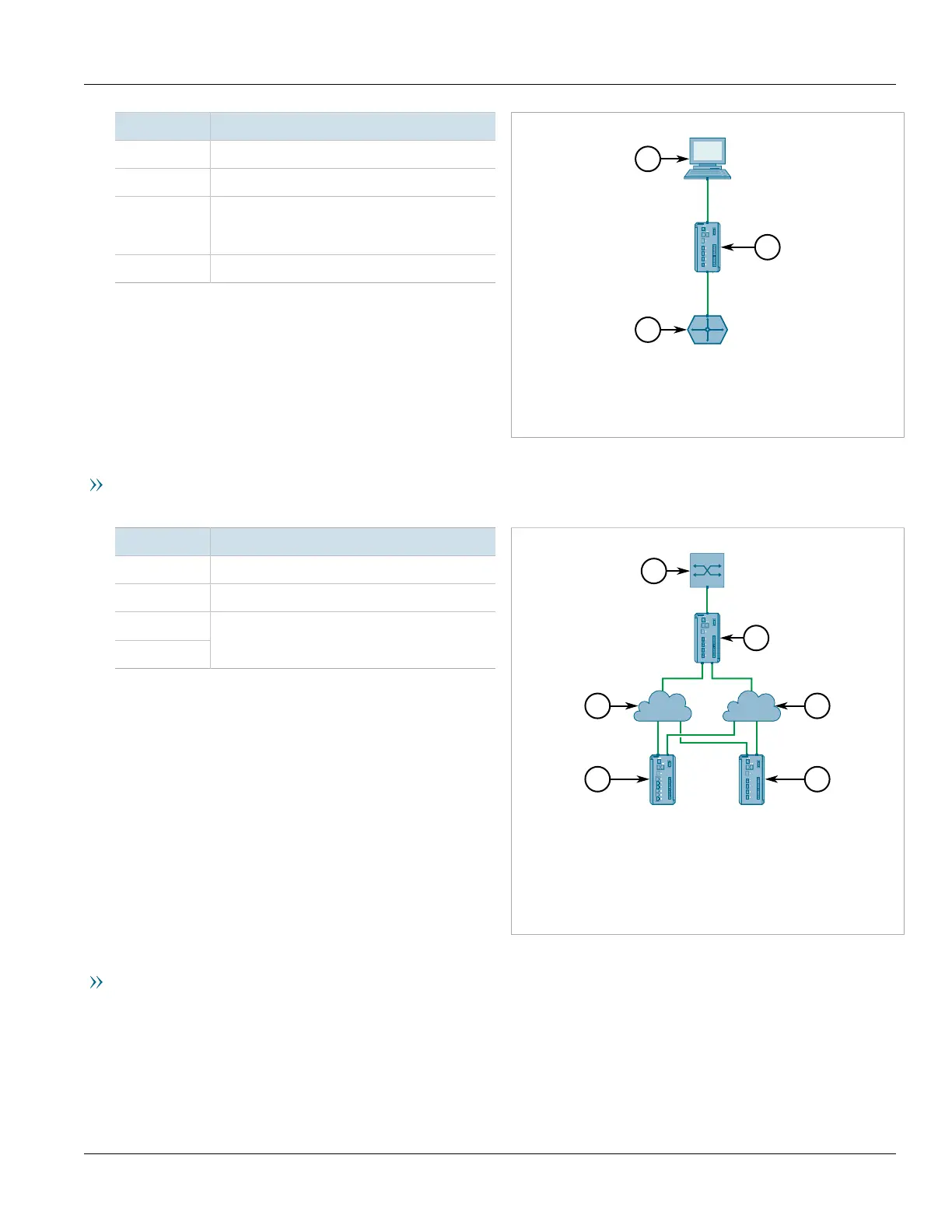

Figure18:LAN
1.Ethernet-Capable Device 2.Switch (RUGGEDCOM RSG907R)
3.Router
Connecting to a PRP Network
In this application, the device operates as a PRP RedBox on a PRP network. Connect the device as follows:
Port Connect To...
A Connect to LAN A
B Connect to LAN B
5 (Coupler)
1 to 4
Connect to one or more Singly Attached Nodes
(SANs)
AB AB
B
A
AB
1
2
1
3
5
4
6
Figure19:A PRP Network
1.VDAN 2.PRP RedBox (RUGGEDCOM RSG907R)
3.LAN B 4.LAN A 5.DAN (RUGGEDCOM RSG907R
RSG909R;RSG908C;RSG910C) 6.DAN (RUGGEDCOM RSG907R
RSG907R)
Connecting to an HSR Ring
In this application, the device operates as an HSR RedBox in an HSR ring. Connect the device as follows:
