Fiber Optic Ethernet Ports 27
Port Types
21

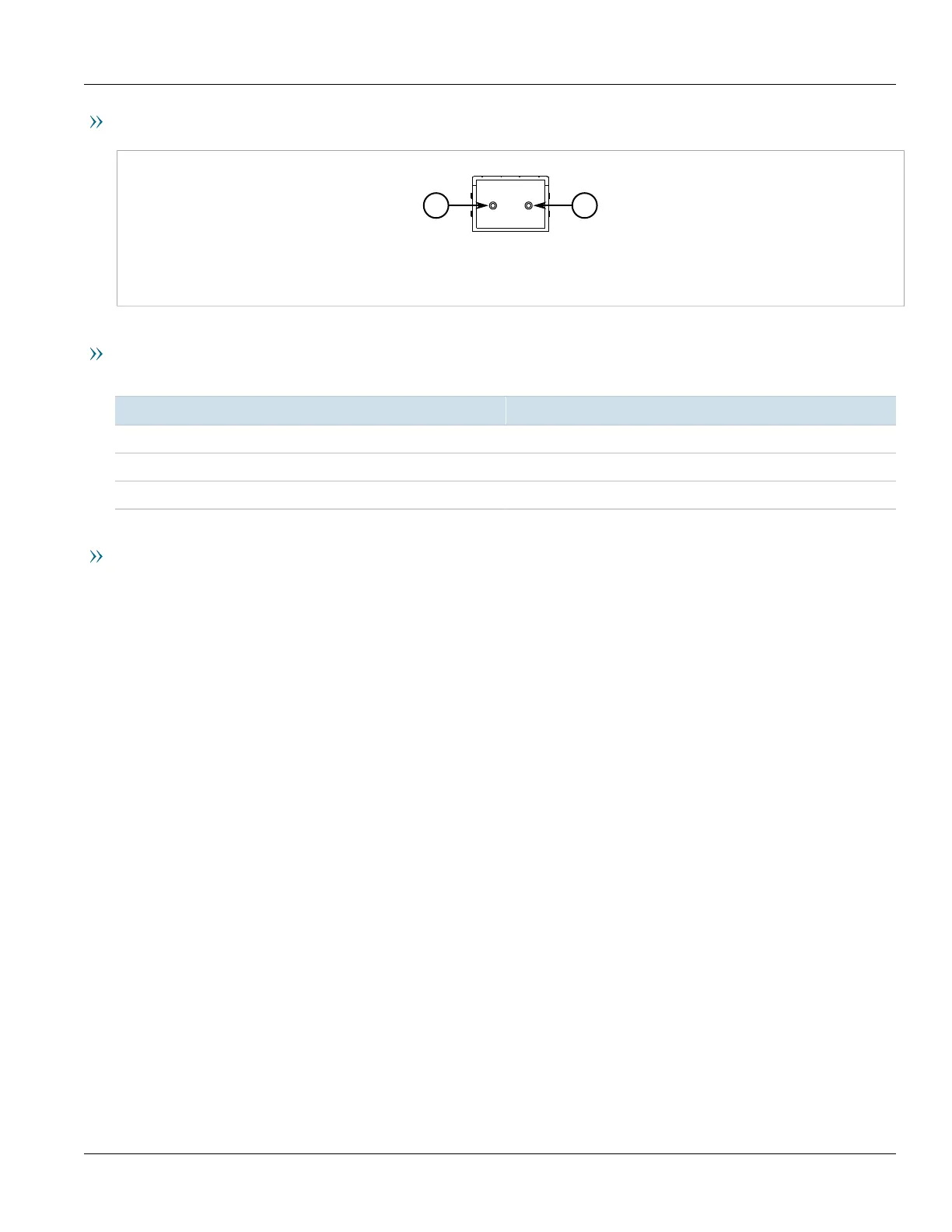

Figure25:LC Port
1.Tx Connector 2.Rx Connector
LEDs
Each port features an LED that indicates the link/activity state of the port.
State Description
Green (Solid) Link established
Green (Blinking) Link activity
Off No link detected
Specifications
For specifications on the available fiber optic Ethernet ports, refer to Section5.4, “Fiber Optic Ethernet Port
Specifications”.
