19 / 60
Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Handling 2019-04-09

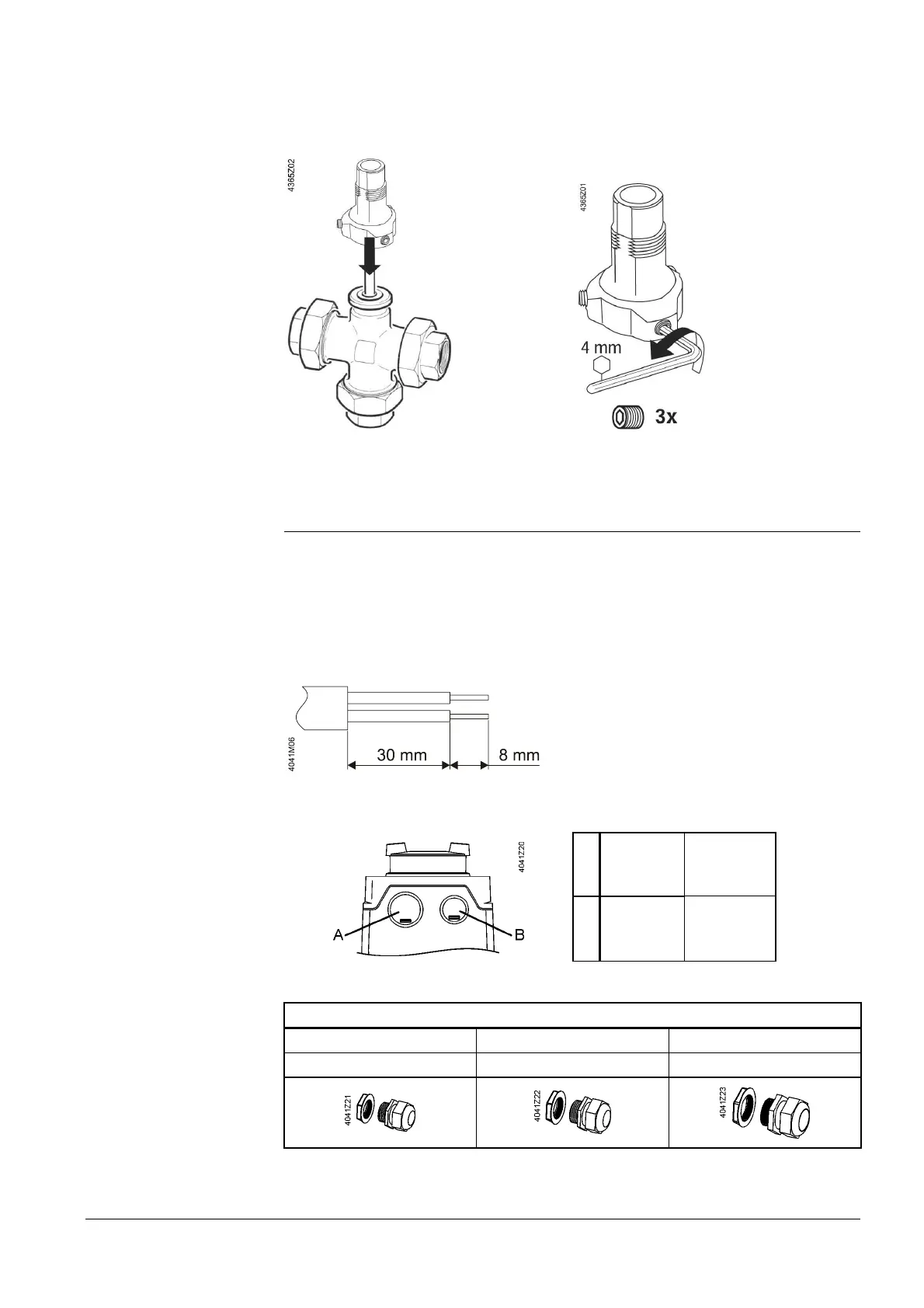

Adapter set for ex-Landis & Gyr valves with 4 mm or 5.5 mm strokes:
X3i.., VVG45.., VXG45.., VXG46.., VVI51...
See Mounting instructions M4365.2
3.1.4 Wiring (installation)
Conduct the electrical connections in accordance with local regulations on
electrical installations as well as chapter "
Connection terminals" on page 48.
The cable endings must be prepared before as follows:
A
EU: M20
US: ½“
Connection
actuator
B
EU: M16
US: ½“
Connection
accessories
Cable glands (not contained in scope of delivery)
Metric Metric Inch thread
M16 M20 ½“
Adapter set
ASK30
Preparation of wire
endings
Cable entries
Cable glands
To Next Page
