Siemens SCALANCE S615 User Manual

Description of the device
3.6 Terminals
SCALANCE S615
Operating Instructions, 10/2022, C79000-G8976-C389-07
25
3.6 Terminals
Position

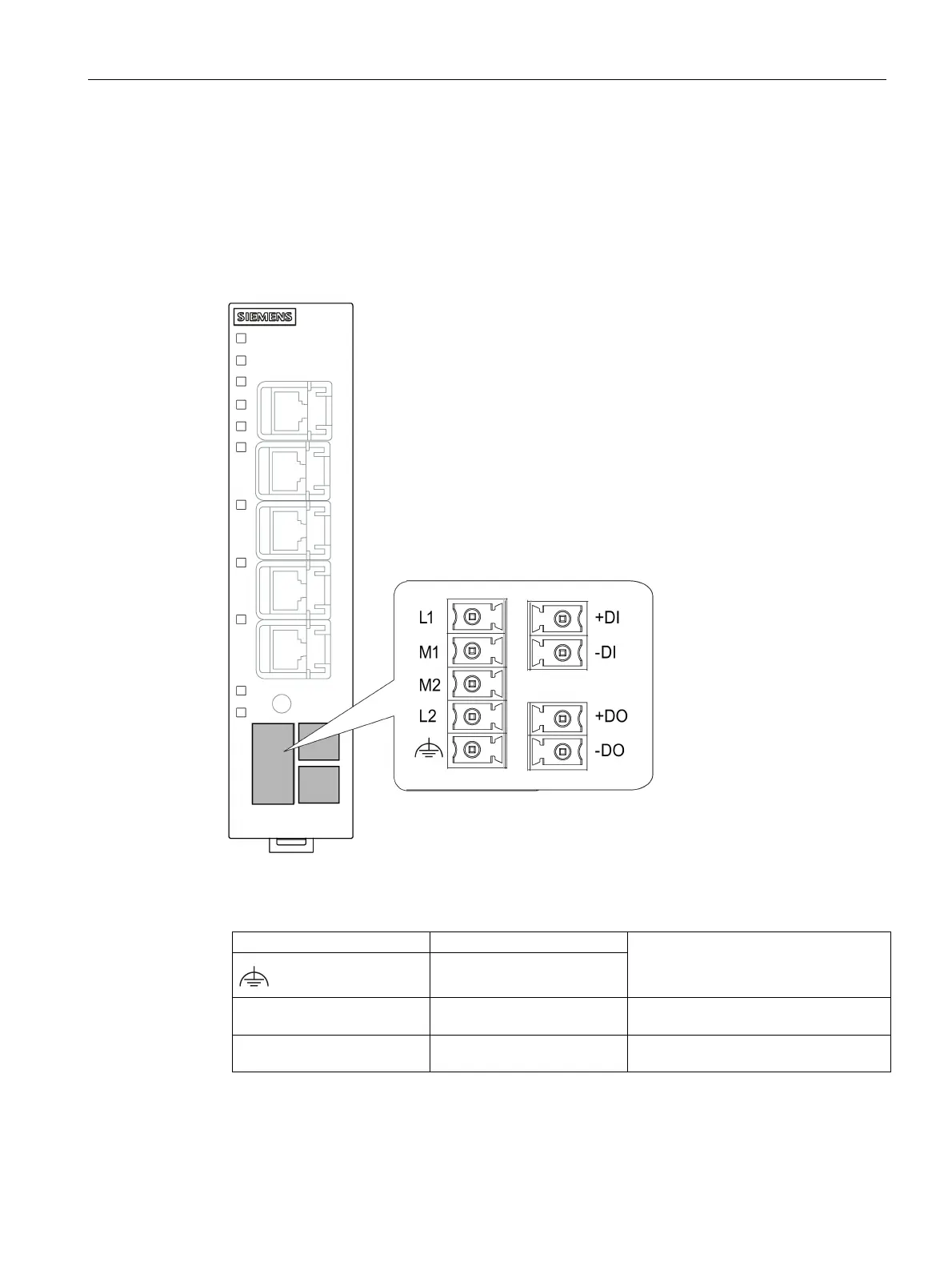

The device has a 5-pin plug-in terminal block for the power supply and two 2-pin plug-in
terminal blocks for the digital input and output.
Connectors and terminal markings
L1, M1, L2, M2
Input for the power supply
Terminal block with five terminal
connectors
Functional grounding
+DI, -DI
Digital input
Terminal block with two terminal
connectors
+DO, -DO
Digital output
Terminal block with two terminal
connectors

Siemens SCALANCE S615 Specifications

General

Protocols	IPsec, OpenVPN
Power Supply	24 V DC
Mounting Type	DIN Rail
Product Name	SCALANCE S615
Ports	5
Firewall	Yes
Weight	0.6 kg
Certifications	CE
