Dimension drawings
9.2 19" installation frame
SCALANCE S615
70 Operating Instructions, 10/2022, C79000-G8976-C389-07
9.2 19" installation frame
Dimensions are specified in mm.

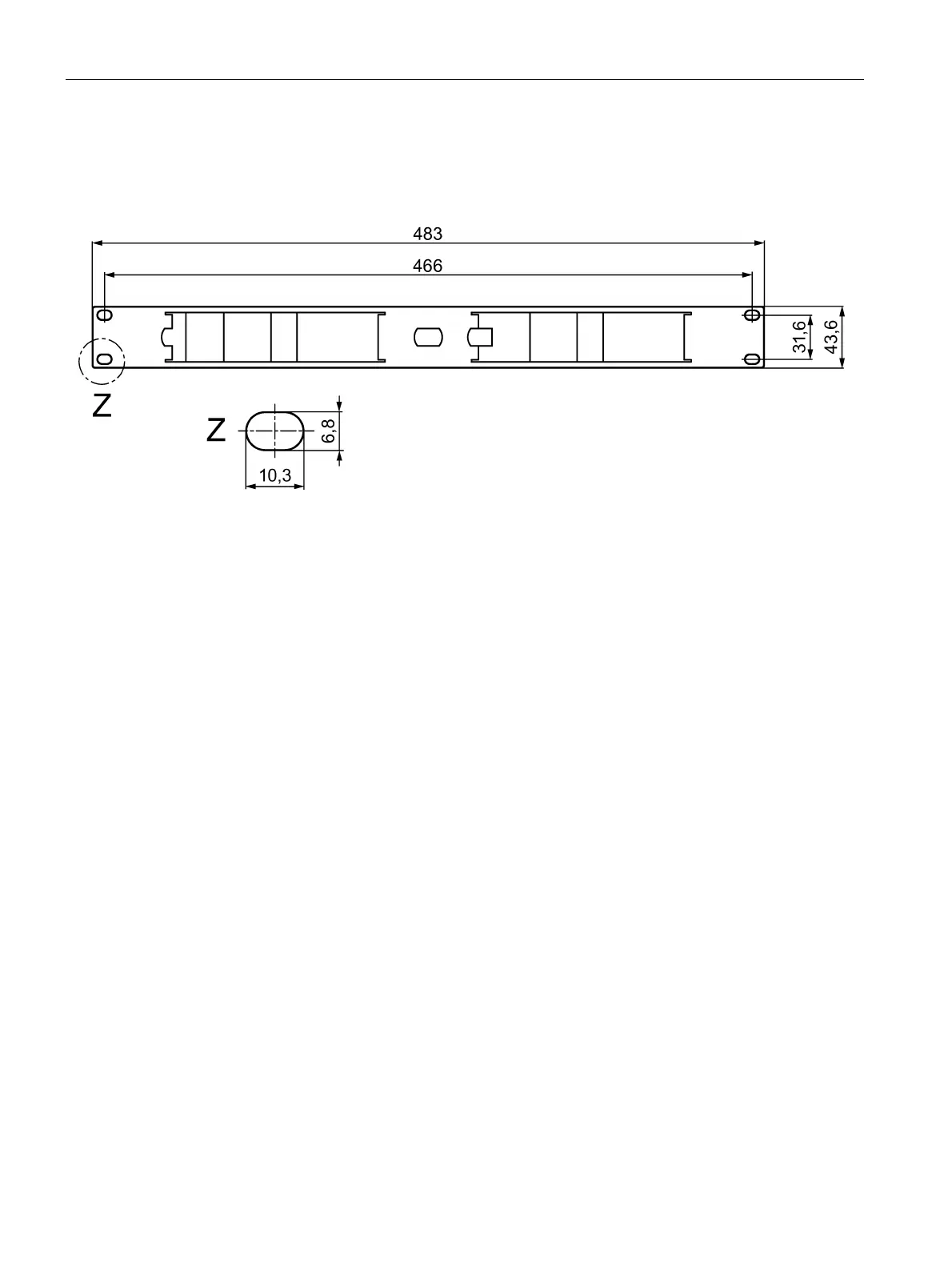

Figure 9-3 Front view
See also
Installation in a 19" mounting frame (Page 41)
