5.2 Power supply

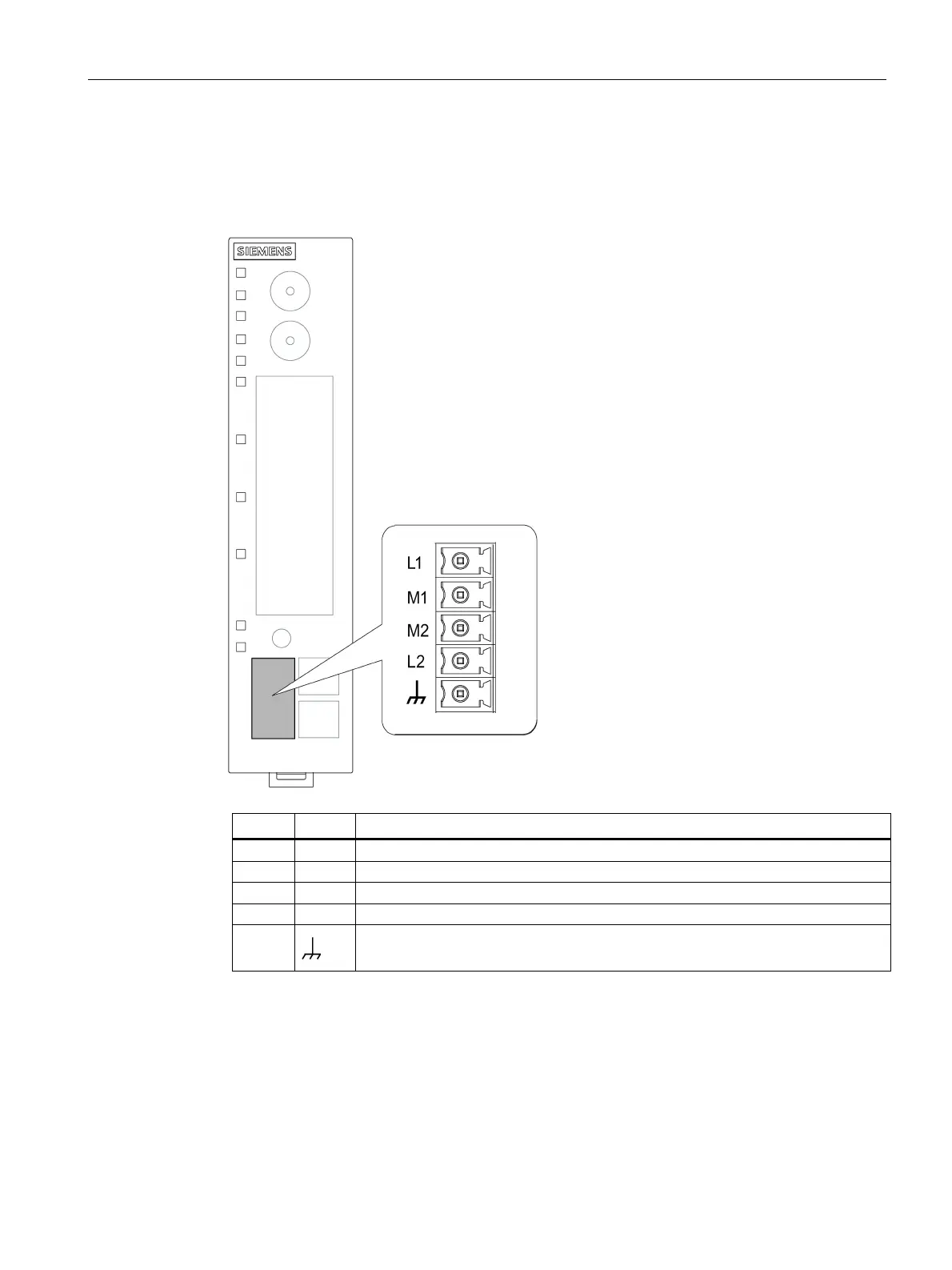

The power supply is connected using a 5-pin terminal block. The power supply is non-
floating.
PIN
Signal
Description
1
L1+
24 VDC
2
M1
Ground
3
M2
Ground
4
L2+
24 VDC
5
Functional ground, refer to the section "Grounding (Page 52)"
You can find information on wiring in the section "Terminals (Page 25)".
