Digital output

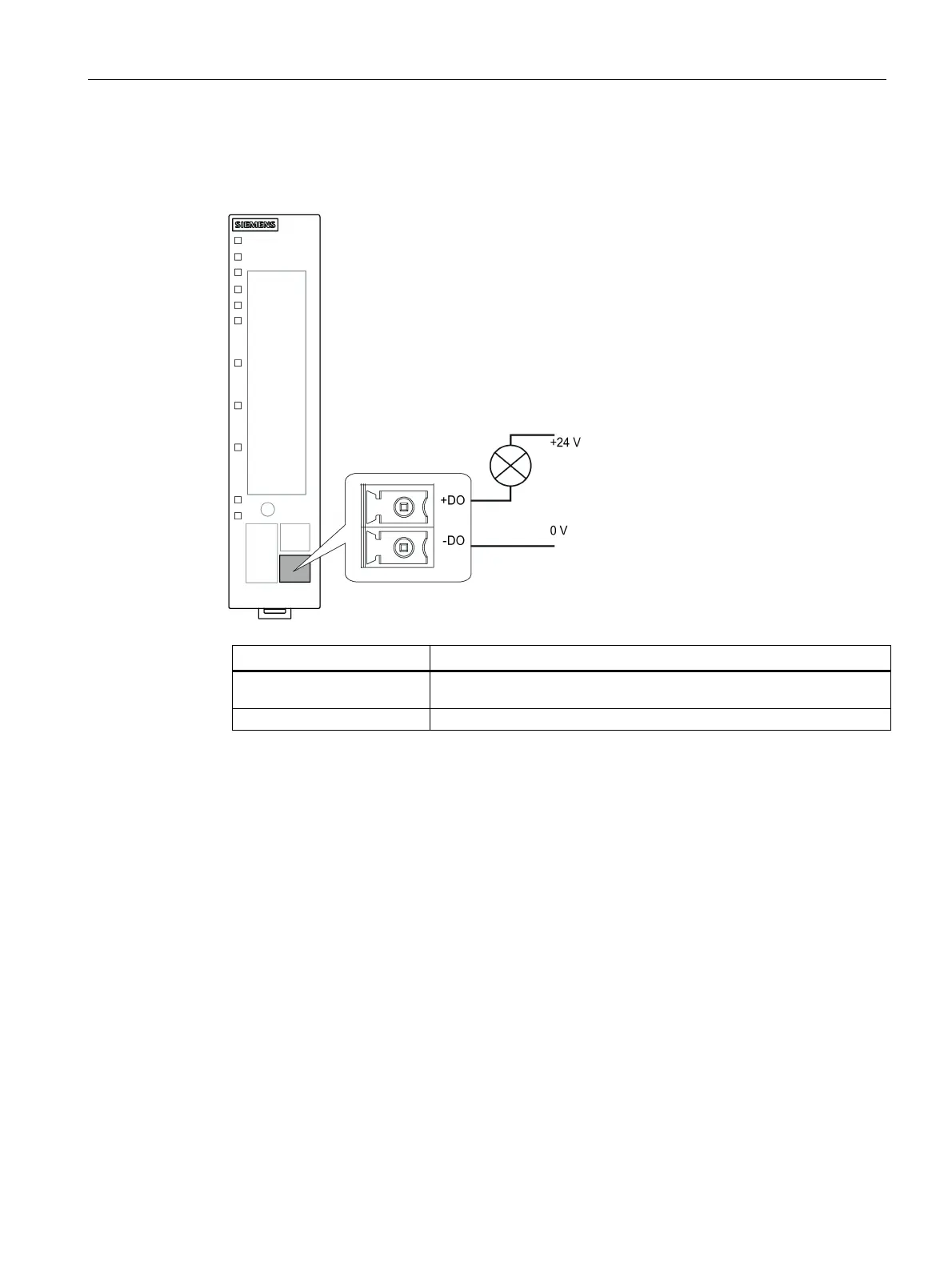

The 2-pin terminal block has the following assignment:
Contact
Assignment
+DO
Switching signal
Relay 24 V DC / 1 A
-DO
Ground
The output is a switch that switches the signal at +DO to -DO.
5.5 Ethernet port
The device has a certain number of ports to which the network nodes can be connected, e.g.
a DSL router, a programmable controller, a machine with an Ethernet interface for remote
monitoring or a PC.
For the connection, use a path cable with an RJ-45 plug. You will find the properties of the
Ethernet interface in the technical specifications.
