Mounting
4.1 Wall mounting
SCALANCE W774-1 /W734-1
28 Operating Instructions, 01/2017, C79000-G8976-C325-08
4.1
Wall mounting

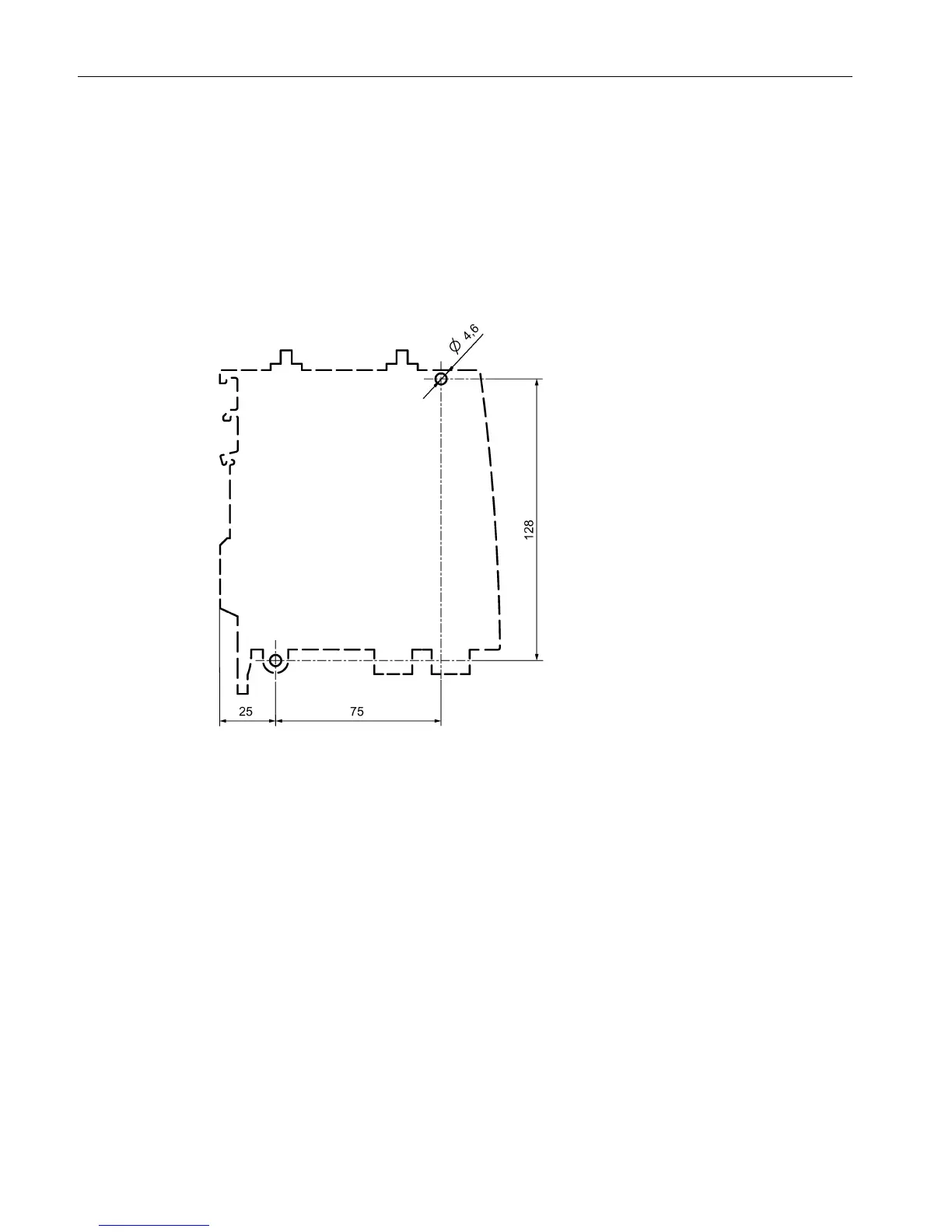

Drilling template
The location of the holes for mounting the SCALANCE W774/W734 on a wall is shown in the
following figure:
