5.3 Ethernet
SCALANCE W774-1 /W734-1
42 Operating Instructions, 01/2017, C79000-G8976-C325-08
5.3
Ethernet

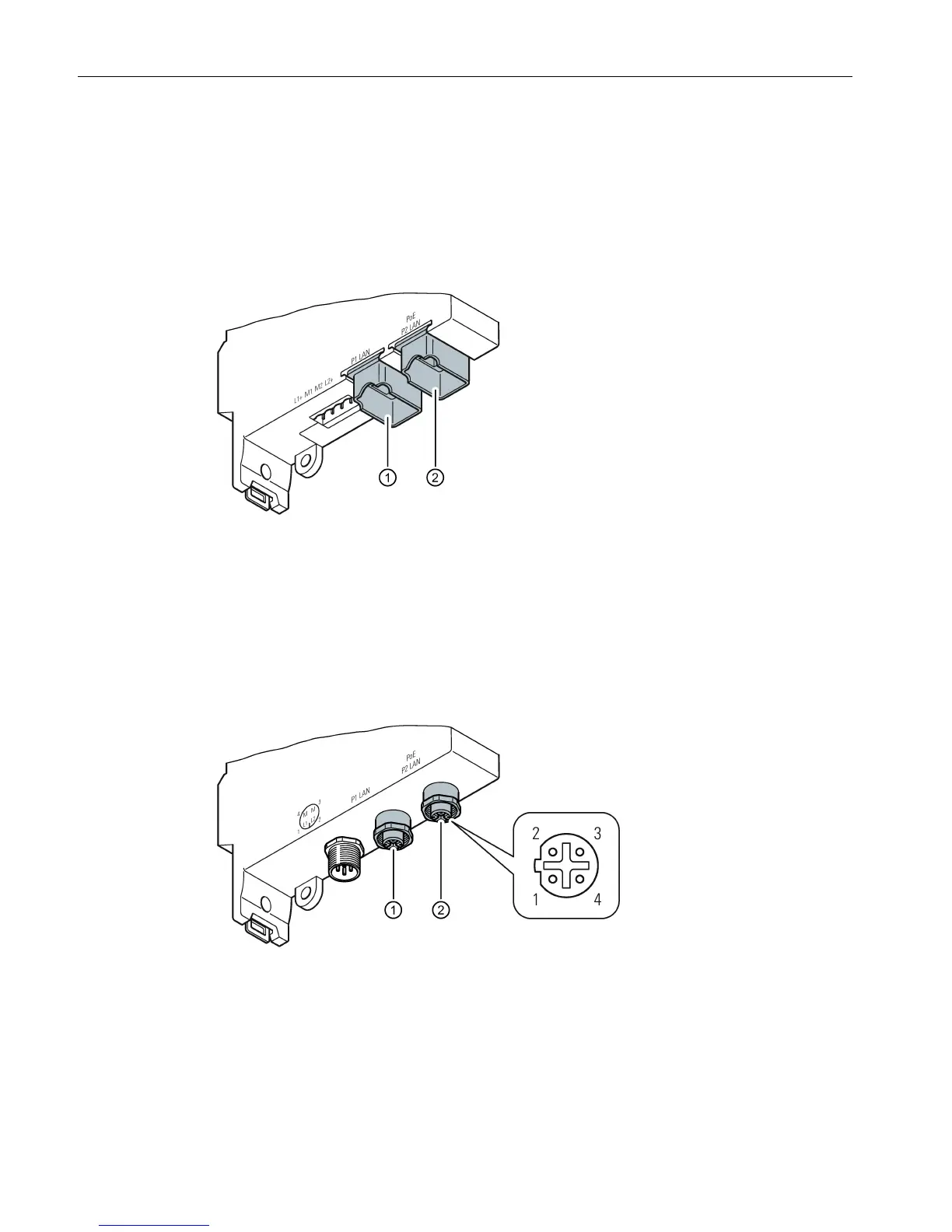

The SCALANCE W774/W734 devices have two Ethernet interfaces located on the underside
of the device. Depending on the version, either RJ-45 or M12 sockets are available.
SCALANCE W774/W734 RJ-45
①
Ethernet interface P1
②
Ethernet interface P2
The power can also be supplied via this interface (Power over Ethernet).
SCALANCE W774/W734 M12 EEC
①
Ethernet interface P1
②
Ethernet interface P2
The power can also be supplied via this interface (Power over Ethernet).
