Connection
5.4 Antenna connectors
SCALANCE W774-1 /W734-1
44 Operating Instructions, 01/2017, C79000-G8976-C325-08

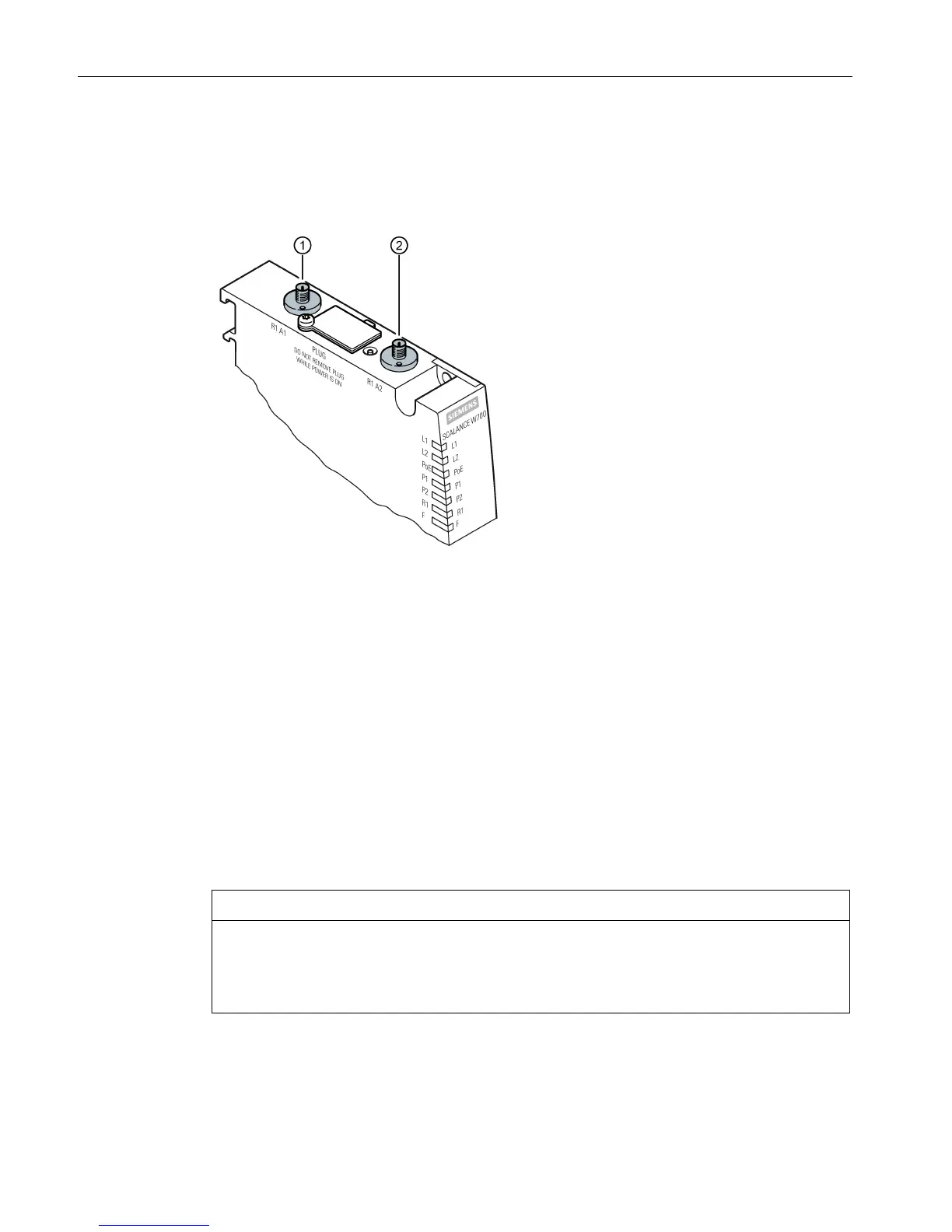

The SCALANCE W774/W734 has two antenna connectors of the type R-SMA located on the
top of the device.
Follow the steps below to connect a cable for an external antenna to a SCALANCE
W774/734:
1. Insert the connector on the antenna cable into the R-SMA socket and tighten the sleeve
nut of the plug on the socket (key size SW8, tightening torque 1 Nm). If you only use one
antenna, you need to connect this to the device via antenna connector R1 A1 (position
①).
2. Screw a terminating resistor to the unused antenna socket R1 R2 (position
②) if you are
only using one antenna.
UL approval only for use in buildings
Within the area of authority of the NEC and CEC, the SCALANCE W770/W730 devices and
the antennas connected to them may only be used in a closed building. For this reason, do
not lead antennas into the outdoor area if you need to meet UL requirements.
