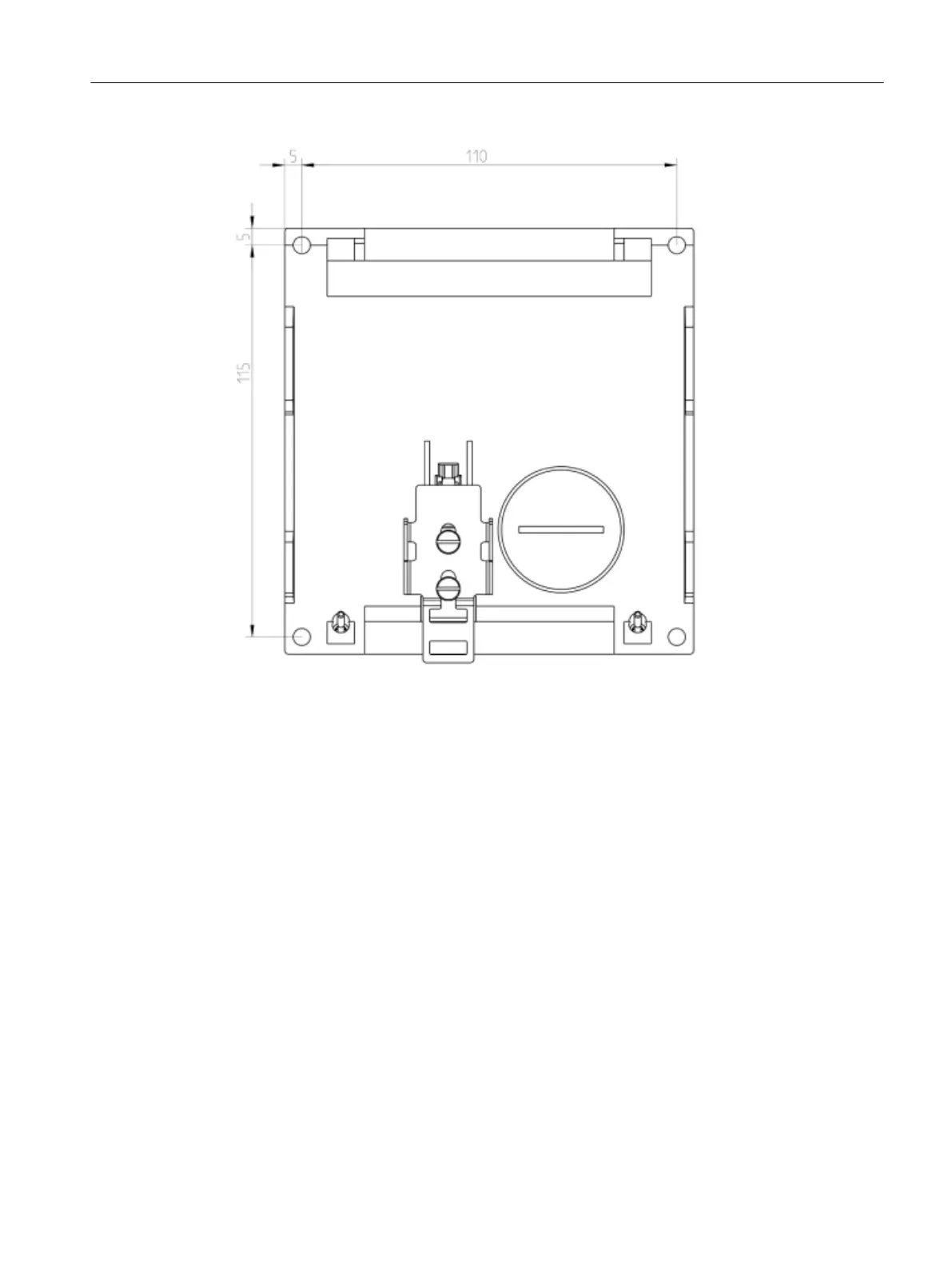

Figure 10-4 Medium design dimension drawing (IE Switch X-300)
Graphics
10.1 Dimension drawing
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 223
