Siemens SCALANCE X-400 Compact Operating Instructions

Assembly
4.2 Installing/uninstalling the EM495-8 twisted pair extender for SCALANCE X414-3E
SCALANCE X-400 extender modules
Compact Operating Instructions, 04/2013, A5E00367421-10
23
8. Using a slotted screwdriver with a 2.8 mm wide blade, tighten the two captive slug screws
on slot 11. The screws lock the two guide bolts, so do not use excessive force when
tightening them.
9. Fit the CV490 4x100 cover to slot 11 of the basic device and slots 12 and 13 of the
twisted pair extender.

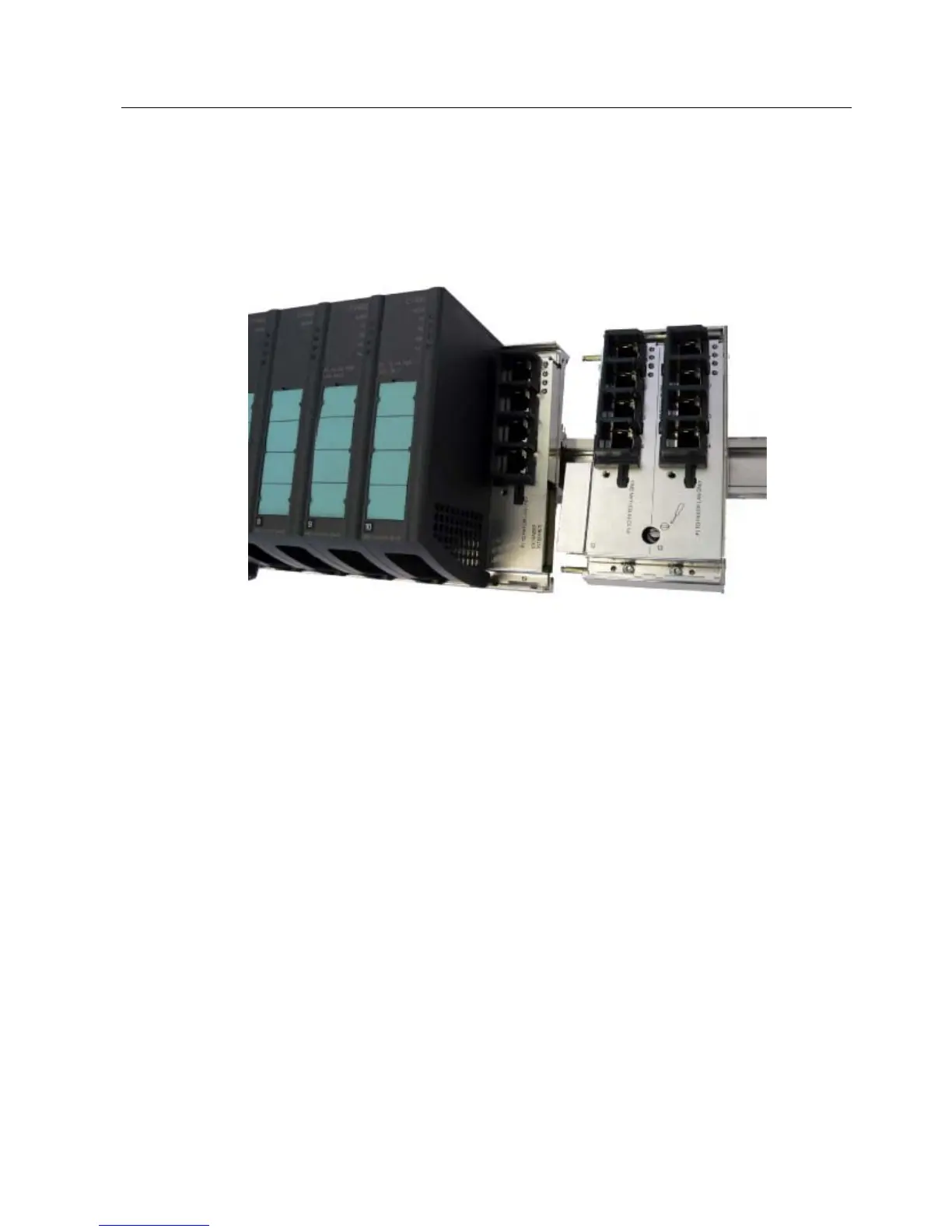

Figure 4-2 Installing the twisted pair extender on the 35 mm DIN rail
