3. A message box displays as shown in Figure 39 to confirm the deletion.
4. Click OK to delete the selected switch or on Cancel to leave the settings as
they were.

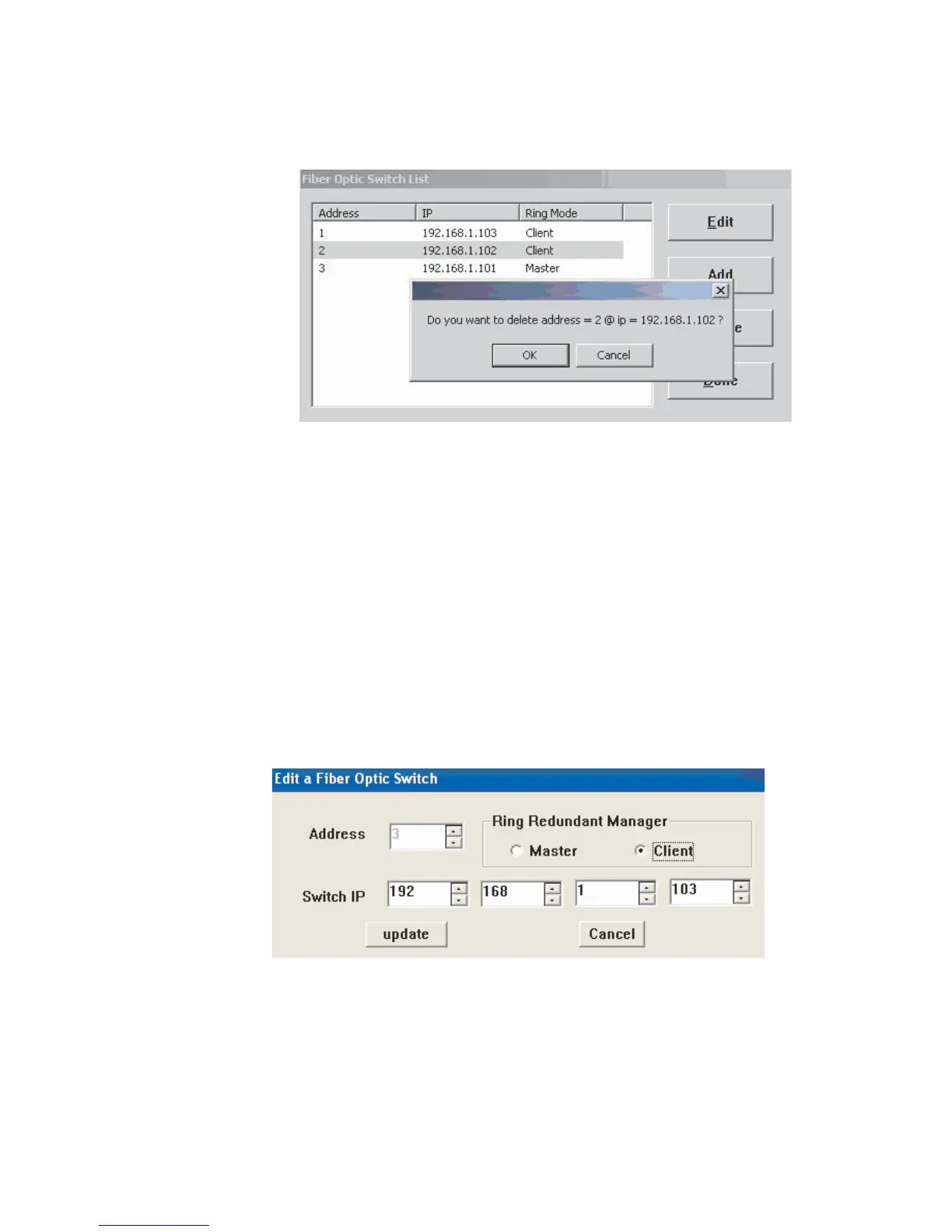

Figure 39
Deleting A Fiber Optic Switch
Update a Switch To update a switch follow these steps:
1. Select the switch you want to update from the Fiber Optic Switch List
window.
2. Click on the Edit button or double click on the selected switch on the list.
3. An update window displays as shown in Figure 40 except that the address
field is disabled.
4. You can update the IP address and /or the Ring Redundant Manager setting.
5. Click on the update button to complete the changes or on Cancel to leave
the settings as they were.
Figure 40
Updating A Fiber Optic Switch
