Network topologies
3.4 Redundant coupling of network segments
SCALANCE X-300
44 Operating Instructions, 05/2016, A5E01113043-20
3.4
Redundant coupling of network segments
Redundant coupling of network segments
The example of redundant coupling of two network segments as shown here, for example
rings with a redundancy manager, can be implemented homogeneously with all SCALANCE
X300 variants.

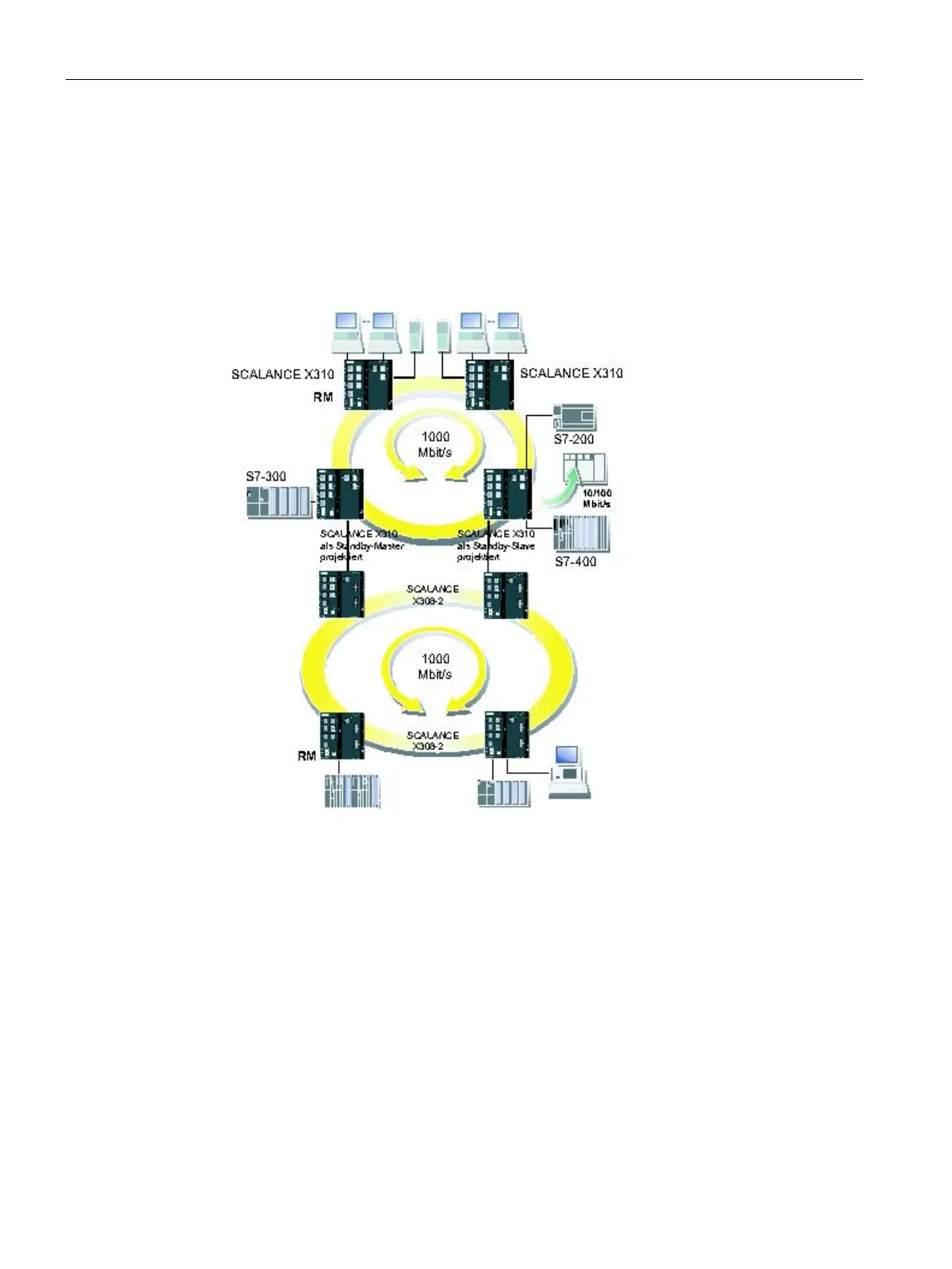

Image 3-5 Redundant coupling of two subnets in mixed operation with SCALANCE X310 and
SCALANCE X308-2
In this case, network segments are rings with a redundancy manager (RM). The rings can
also be interrupted at one point (linear topology).
For a redundant link as shown in the figure, two IE Switches X-300 must be configured within
a network segment. This configuration is set in Web Based Management, Command Line
Interface or using SNMP access. For more detailed information, refer to the "Configuration
Manual SCALANCE X-300 and SCALANCE X-400 Industrial Ethernet Switches". The two
IE Switches X-300 connected in the configuration exchange data frames with each other to
