Description of the device
4.2 Product groups
SCALANCE X-300
72 Operating Instructions, 05/2016, A5E01113043-20
Possible attachments (example)
Use only approved media modules in the module slots
The connection of end devices or other network segments does not depend on the module
slot, but rather on the selected media module.
Refer to the section Media module installation in slot.
Example: Fitted with media modules MM992-2 and MM991-2

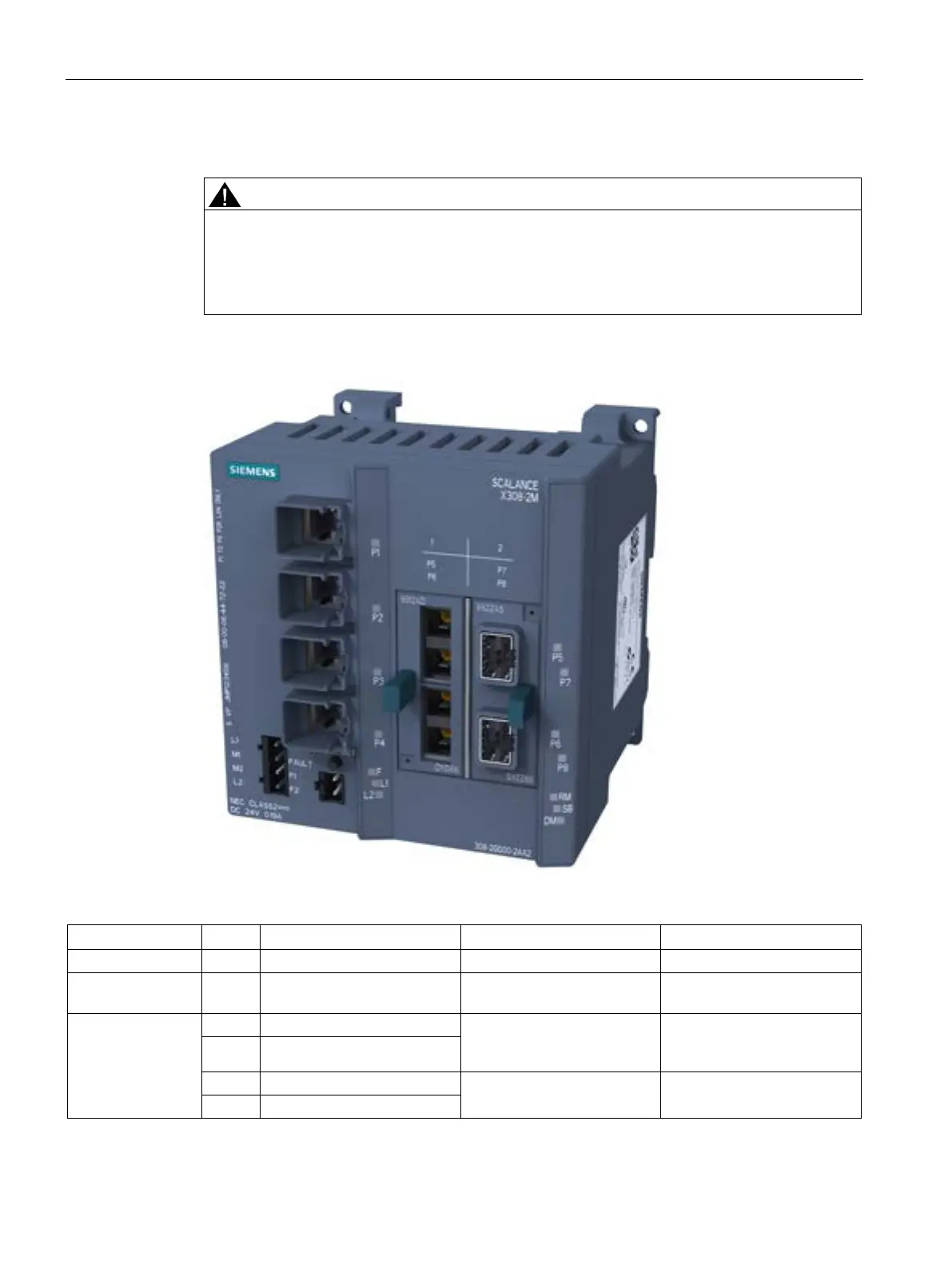

Image 4-23 SCALANCE X308-2M PoE with MM992-2 and MM992-2SFP
- - MM992-2 MM992-2SFP
P5 (gigabit multimode fiber-
optic cable, SC ports)
P7
(interface depends on SFP
- P2 (gigabit Ethernet)
P6 (gigabit multimode fiber-
optic cable, SC ports)
P8(interface depends on SFP
used)
