Description of the device
4.2 Product groups
SCALANCE X-300
76 Operating Instructions, 05/2016, A5E01113043-20
Pin assignment for the RJ-45 connector of a PROFIBUS cable
If you use a PROFIBUS cable along with an IE FC RJ-45 plug 4x2, note the following:
3 White --
Note
Using PROFIBUS standard cable GP
If you use a PROFIBUS standard cable GP, the wires must be stripped before they are
inserted in the FC connector.
Note
If you use cables with a length > 500 m, connection establishment can take up to 2
min.
Note
If you connect an MM992
-2VD media module to existing PROFIBUS cabling, the same
requirements relating to shield contact and the lightning protection concept apply as for
PROFIBUS.
MM992-2M12 product characteristics
Possible attachments
The MM992-2M12 media module has the following:
● 2 x 10/100/1000 Mbps, GE M12 connector electrical

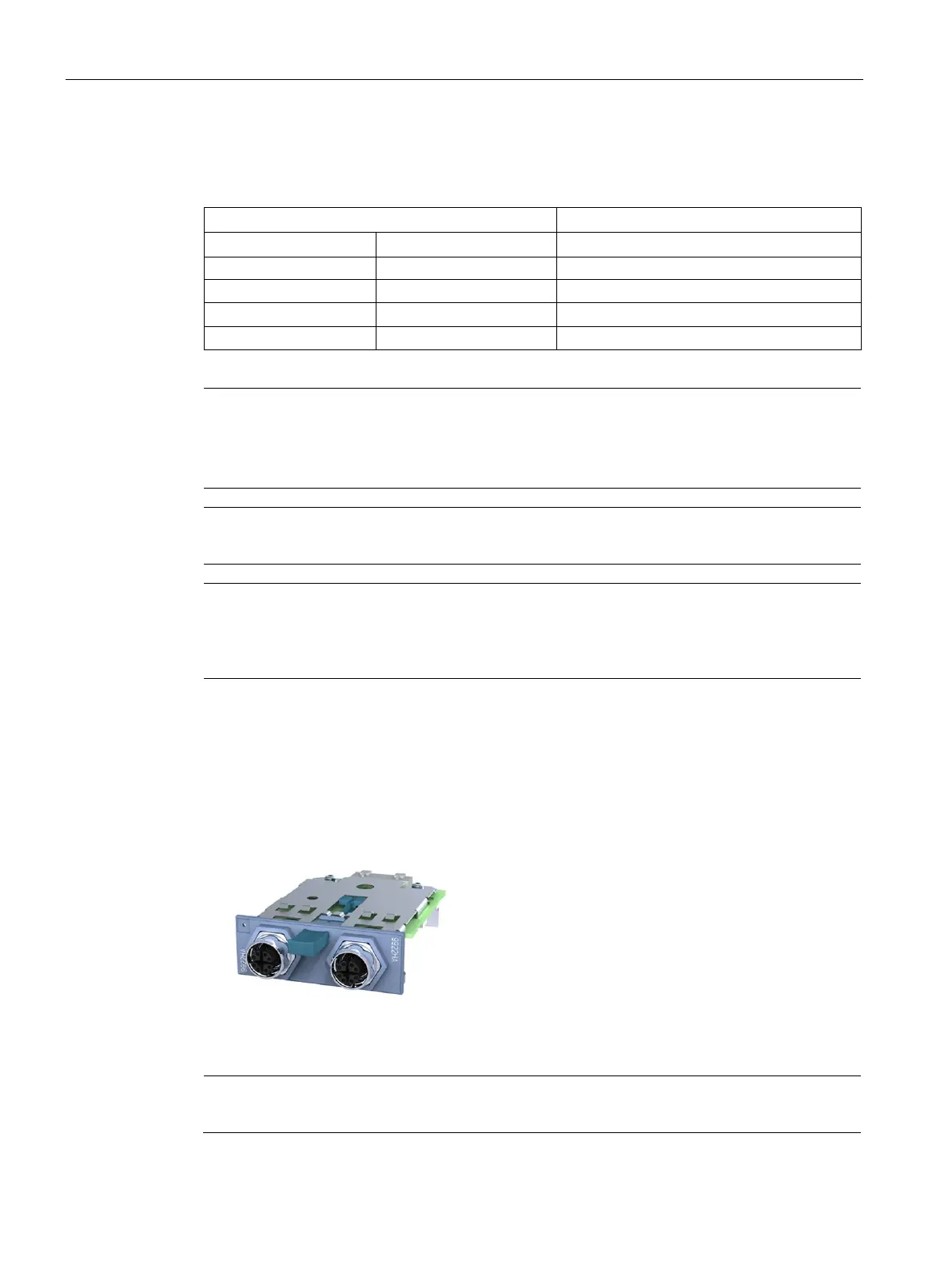

Image 4-28 MM992-2M12C [9922HA]
[Device labeling in square brackets]
Note
For connection to electrical networks note the information in
Appendix (A.1, A.2 and A.3)
