3.2.2 Spare parts
Spare parts
The following spare parts are available for SCALANCE XB-100:
Component Description Article number
Spring-loaded terminal
block, 3-pole
3-pole spring-loaded terminal block to
connect the power supply (24 V AC/DC),
pack of 5
6GK5 980-1CB10-0CA5
3.3 Device views
3.3.1 Device view of a SCALANCE XB108-2

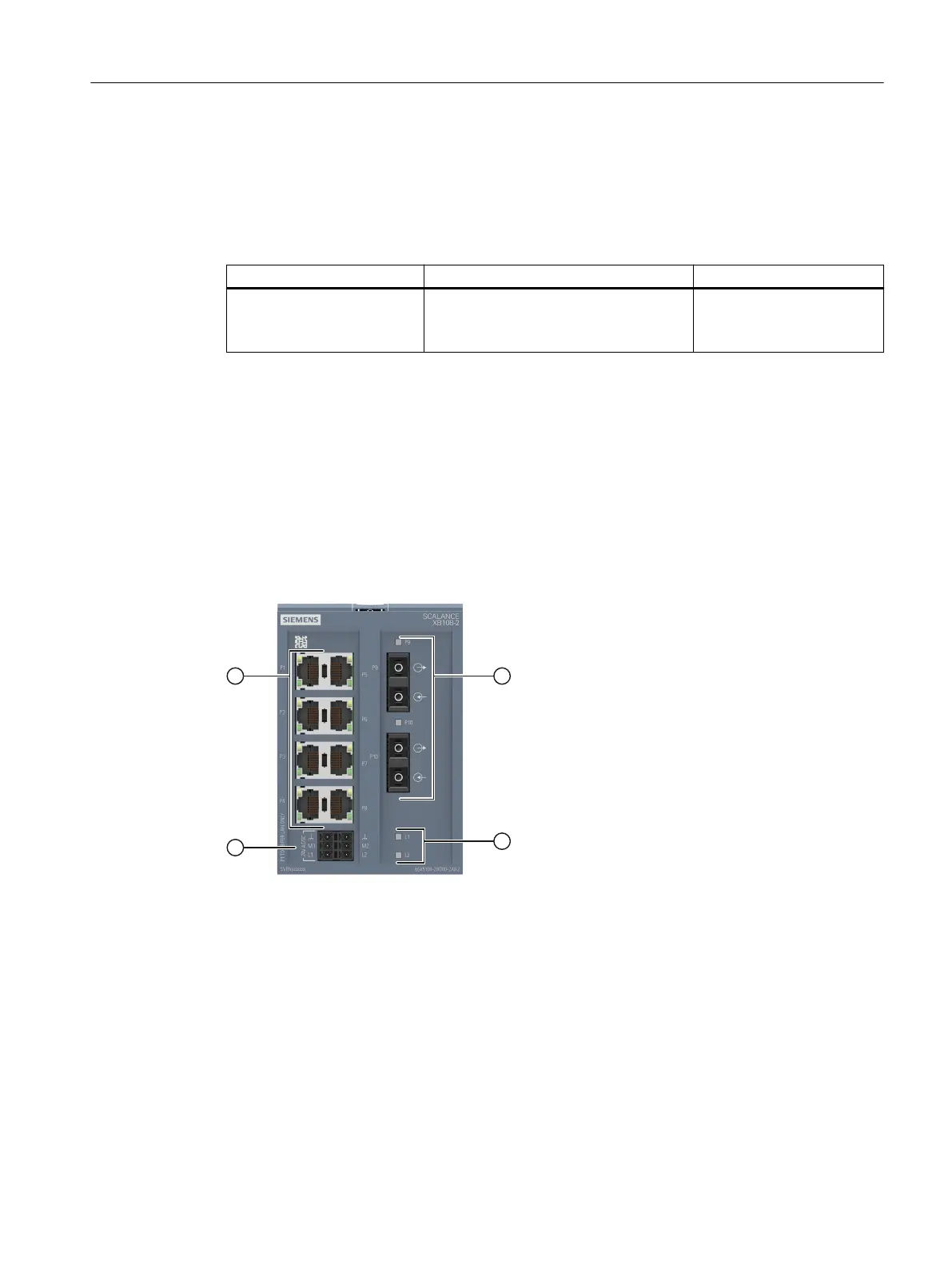

The following figure shows an overview of the components of the SCALANCE XB108-2 using
the SCALANCE XB108-2(SC) as an example. The SCALANCE XB108-2(ST) only differs in the
optical interfaces.
① Optical ports with port LEDs
② Power LEDs
③ Redundant power supply with connector for grounding
④ Electrical ports with port LEDs
Description of the device
3.3 Device views
SCALANCE XB-100
Operating Instructions, 02/2019, C79000-G8976-C473-03 13
