Siemens SCALANCE XR328-4C WG User Manual

Description of the device
3.1 Product overview
SCALANCE XR-300WG
18 Operating Instructions, 05/2017, C79000-G8976-C454-01
Device
Properties
Article number
24 VDC variant (GE)
1)
• 24 x 10/100/1000 Mbps RJ-45 ports
• 4 x combo ports (4 x 10/100/1000 Mbps RJ-45 ports/4 x pluggable
transceiver slots with 1000 Mbps)
• 2 x 24 VDC, connector for the power supply on the front
6GK5 328-4SS00-2AR3
240 VAC variant (GE)
1)
• 24 x 10/100/1000 Mbps RJ-45 ports
• 4 x combo ports (4 x 10/100/1000 Mbps RJ-45 ports/4 x pluggable
transceiver slots with 1000 Mbps)
• 1 x 100 to 240 VAC, power supply connector at rear
6GK5 328-4SS00-3AR3
1)
variant SCALANCE XR328-4C WG (GE): With the variant SCALANCE XR328-4C WG
(GE), all ports are capable of Gigabit Ethernet.
Factory settings: Industrial Ethernet profile
● Industrial Ethernet protocol: PROFINET
● Base bridge mode: 802.1Q VLAN bridge
● Redundancy mechanism: RSTP
● Trust mode: Trust COS-DSCP

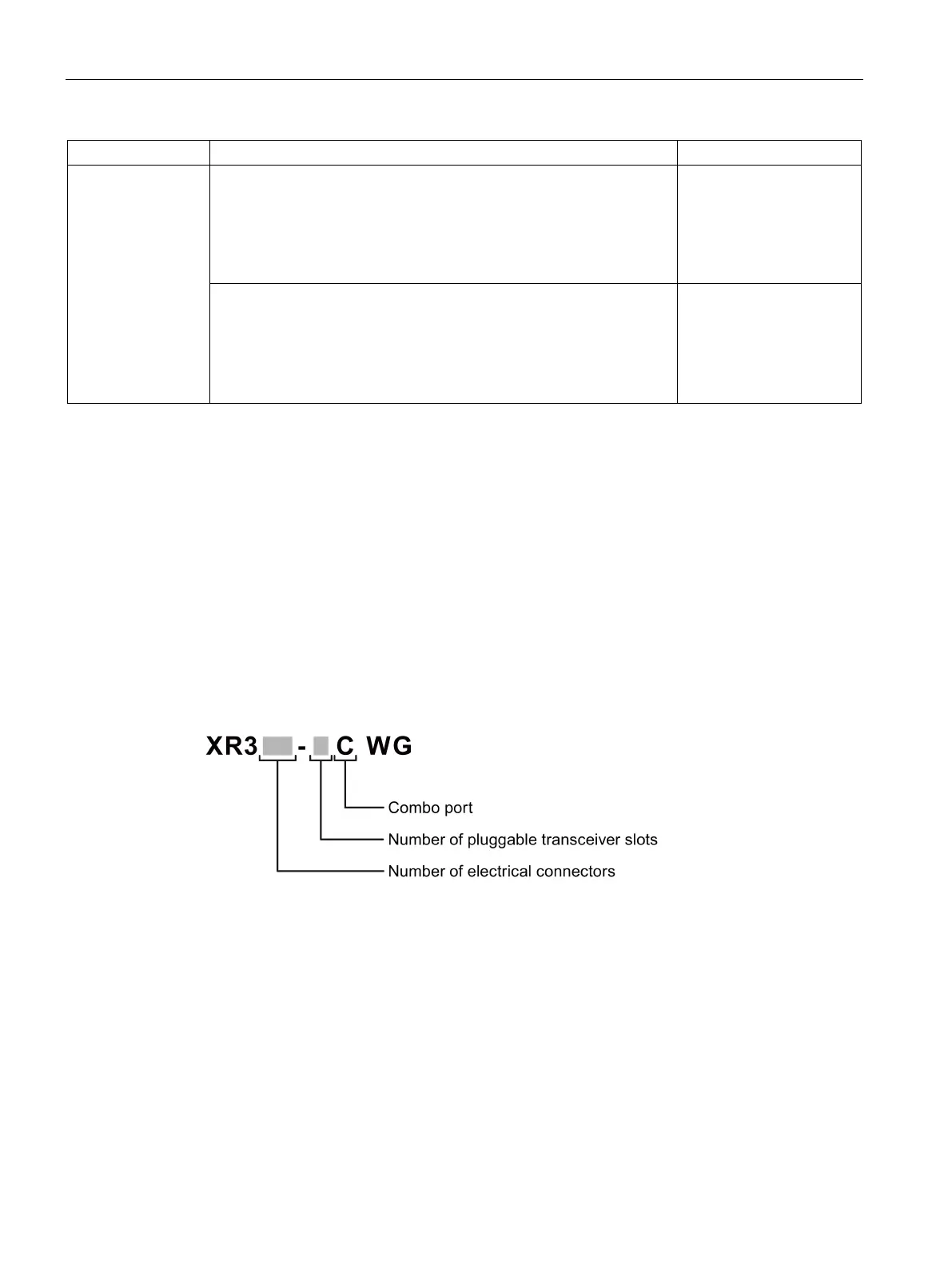

Type designation
The type designation of a SCALANCE XR-300WG is made up of several parts that have the
following meaning:
Components of the product
The following components are supplied with a SCALANCE XR-300WG:
● One device
● One product DVD with documentation and software
The following components are also supplied with a 24 VDC variant:
● Two 2-terminal blocks for the power supply 24 V DC
The following components are also supplied with a SCALANCE XR328-4C WG:
● 4 covers for the pluggable transceiver slots
