Siemens SED2 Commissioning Manual

16/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 5 Electrical installation 26.02.2003
5.2.4 Power and motor terminals: Frame sizes A to F

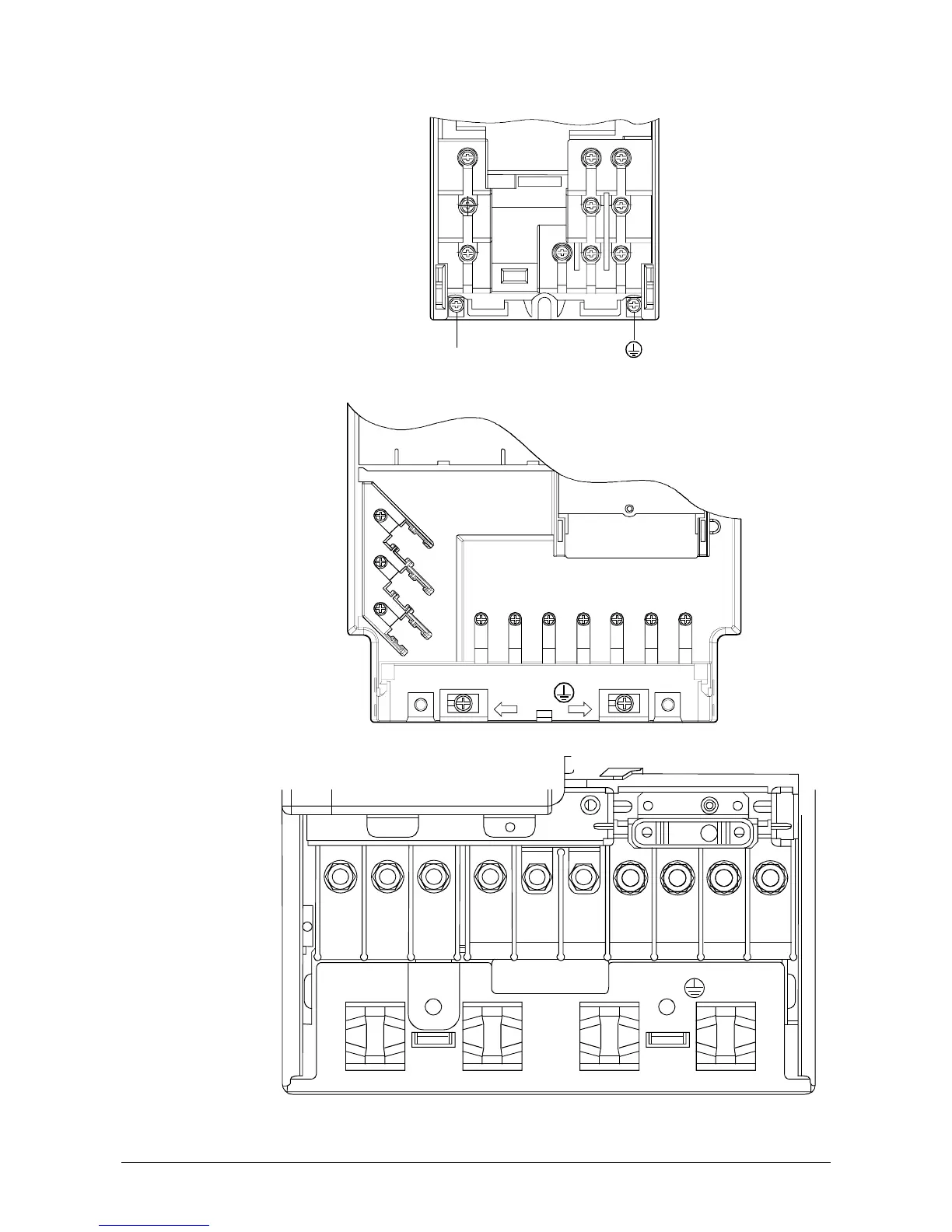

Terminal layout:
Frame size A
(Ground)
PE
(Ground)
L1
L2
L3
DC+ DC-
UVW
5192Z05
DC
R+
B-
Terminal layout:
Frame sizes B and C
UV WDC- DC+
B+
DC
R+
B -
L3
L2
L1
PE
5192Z06
Terminal layout:
Frame sizes D and E
L1 L2 L3 DC- DC+
B+
DC
R+
B- U V W
PE
5192Z07

Siemens SED2 Specifications

General

Input Voltage	380-480V AC
Current Rating	Depends on model
Control Type	Digital
Communication	PROFIBUS, PROFINET, Ethernet
Communication Interface	RS485
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Operating Temperature	0 to +45 °C
Storage Temperature	+70 °C
