Siemens SED2 Commissioning Manual

21/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 5 Electrical installation 26.02.2003

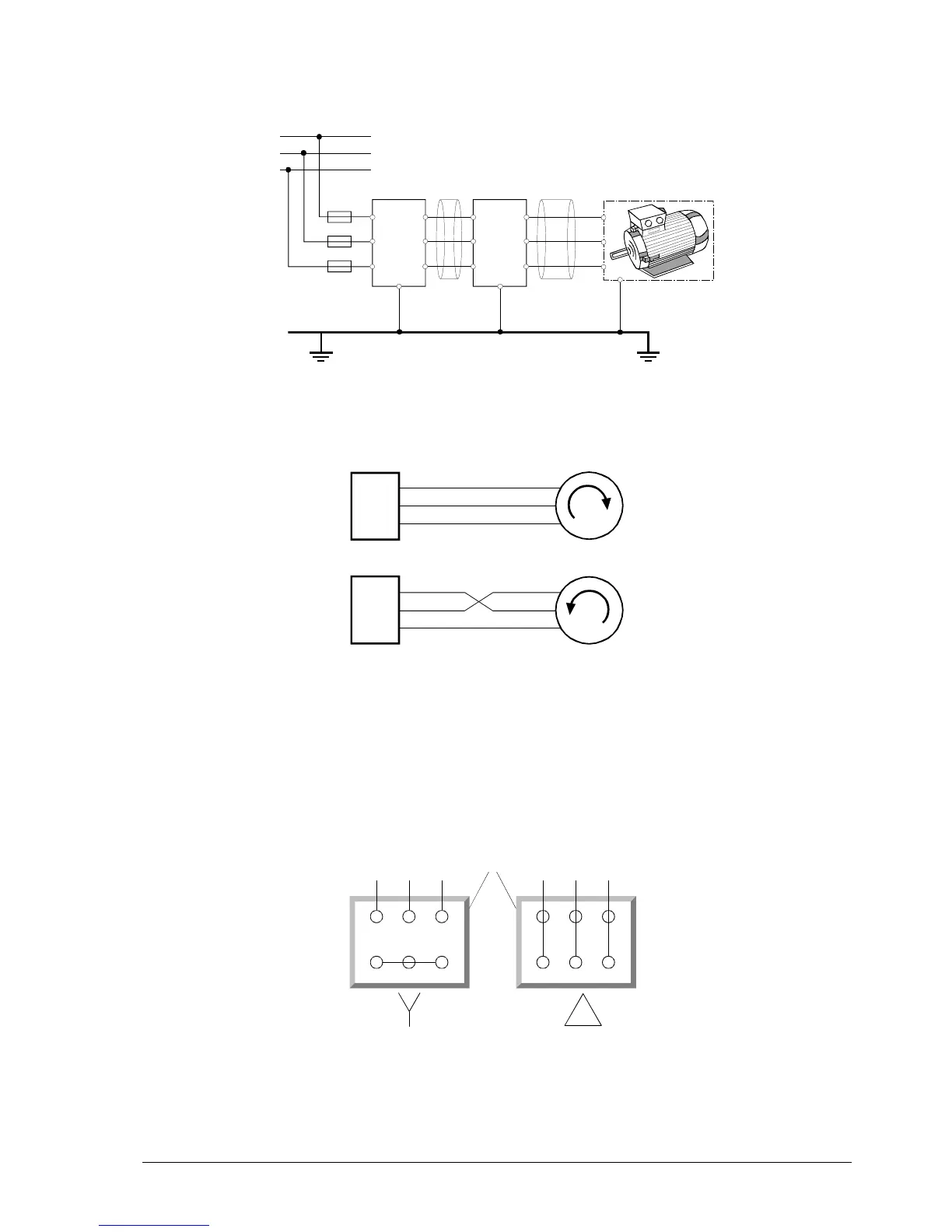

5.3 Connection of the motor
Connect the motor terminals U, V, W of the VSD to the motor.
L1
L2
L3
PE PE
L1
L2
L3
U
V
W
U
W
V
SED2
5.3.1 Direction of rotation
You can change the direction of rotation of the motor by cross-connecting 2 of the output conductors at the VSD or
the motor.
5192V01
M
M
SED2
U
V
W
U
V
W
SED2
U
V
W
U
V
W
The direction of rotation can also be reversed via parameter P1820 (see system parameter list on page 66).
Note: If the VSD is reset to factory defaults, parameter P1820 will be reset.
5.3.2 Star or delta connection
The required supply voltage and method of connection are indicated on the motor rating plate. In general, larger
motors (AC 400 / 690 V) are connected in a delta configuration and smaller motors (AC 230 / 400 V) in a star con-
figuration.
U
1
V
1
W
1
W
2
U
2
V
2
U
1
V
1
W
1
W
2
U
2
V
2
Motor terminal board
5192Z30en

Siemens SED2 Specifications

General

Input Voltage	380-480V AC
Current Rating	Depends on model
Control Type	Digital
Communication	PROFIBUS, PROFINET, Ethernet
Communication Interface	RS485
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Operating Temperature	0 to +45 °C
Storage Temperature	+70 °C
