Siemens SED2 Commissioning Manual

18/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 5 Electrical installation 26.02.2003
Power connection at the
integrated EMC filter for
frame sizes D…F
Access to the mains
connection of the EMC
filter for frame sizes
D…F

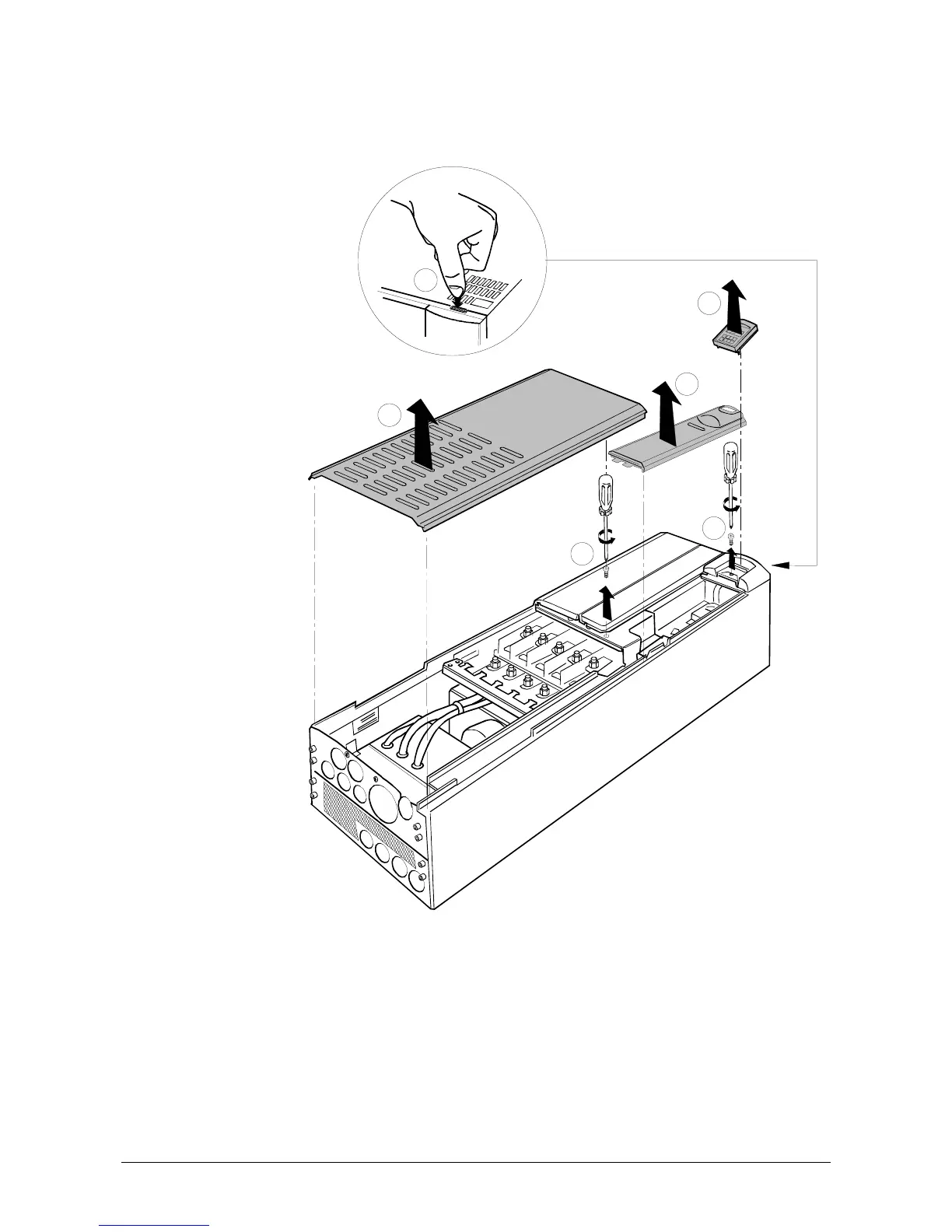

SED2 with frame sizes D, E, and F are delivered with built-in ready wired EMC
filters. Wire the power supply to the connections of the built-in filter. The diagram
below show how to access the mains connections of the built-in filter.
2
3
4
1
5
1
9
2
J
1
4
5
6

Siemens SED2 Specifications

General

Input Voltage	380-480V AC
Current Rating	Depends on model
Control Type	Digital
Communication	PROFIBUS, PROFINET, Ethernet
Communication Interface	RS485
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Operating Temperature	0 to +45 °C
Storage Temperature	+70 °C
