4

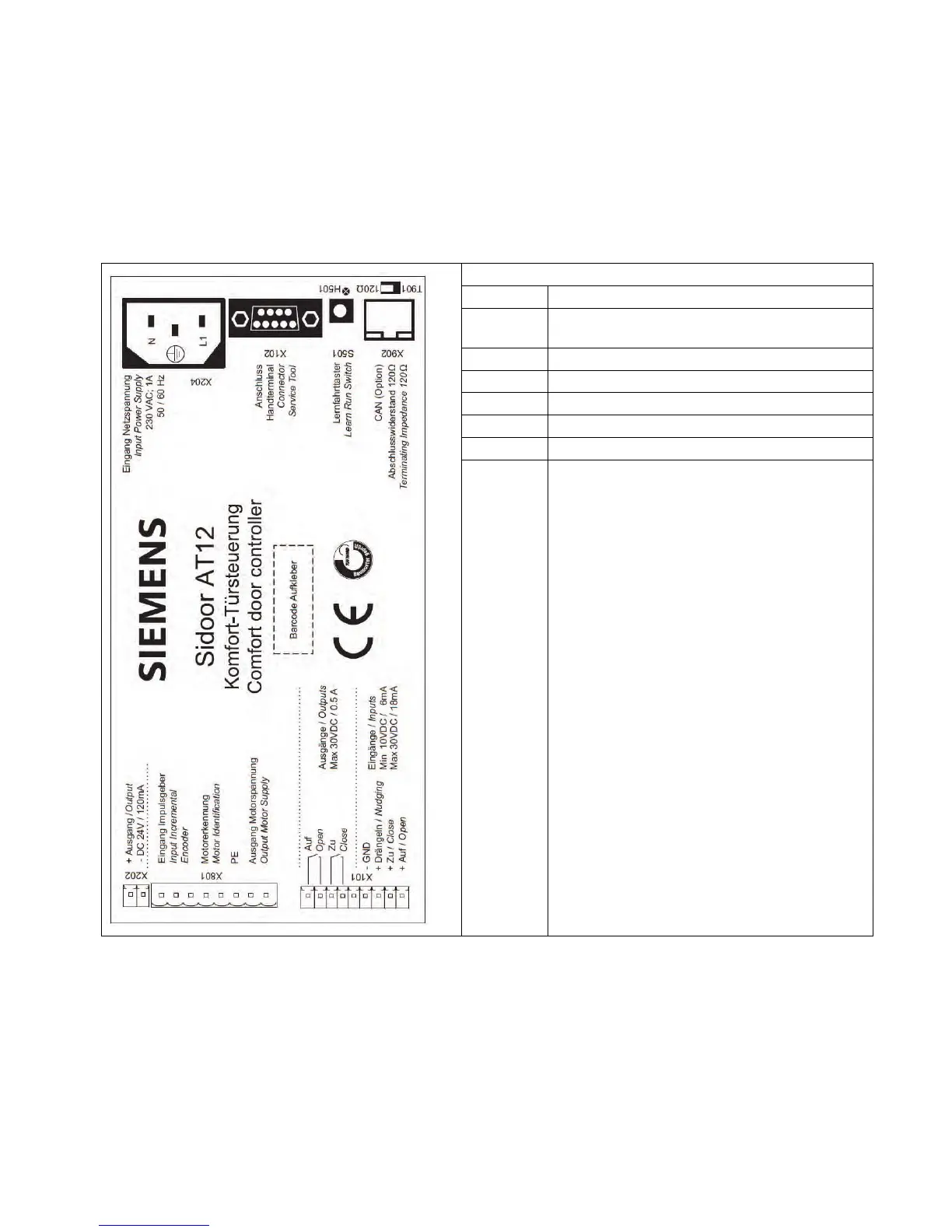

Overview of controls
Sidoor AT12:
X204: Mains connection 230 V (1 A, 50 / 60 Hz)
X102: Connector for Service Tool and USB adapter
(Software Kit)
S501: Learn run button
X902: CAN connector (CAN OPEN RJ45)
T901: Switchable CAN terminating resistor 120 ohms
X202: Voltage output 24 VDC / 120 mA
X801: Motor plug
X101: Connector for output signals
• Open
• Closed
Connector for input signals:
• Nudge
• Close
• Open
Elevator door drive AT12
Manual, 02/2012, A2B00086683A-04
13
