Installation
2-7
SIMATIC 505–2556 Installation and Operation Guide

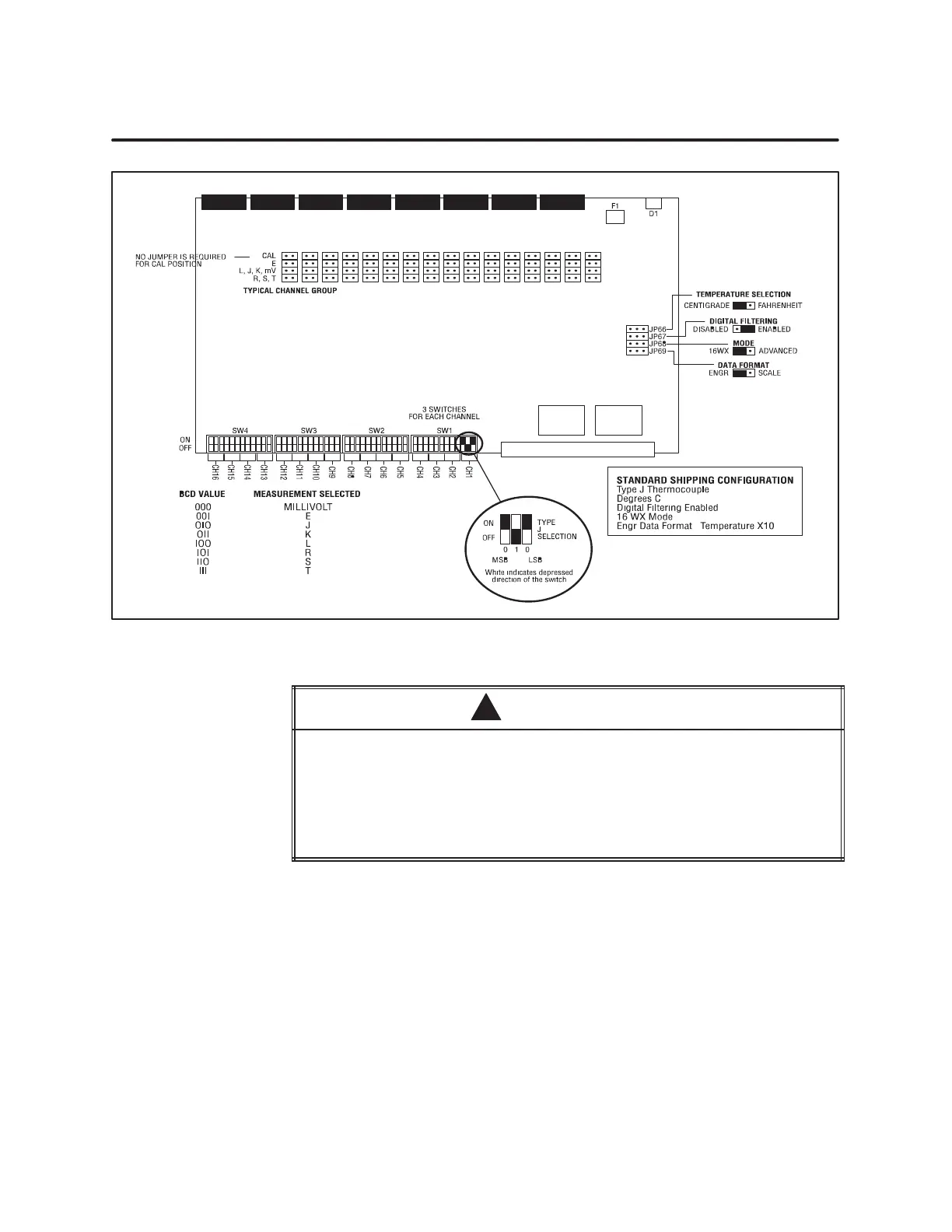

Figure 2-2 Configuration
Jumper Location
!
WARNING
Inserting
or removing a module while the system unit is connected to AC power
could result in death or serious injury to personnel, and/or damage to
equipment.
Ensure that the system unit is unplugged—that it is NOT connected to AC
power—before attempting to insert or remove a module. Do not attempt these
procedures unless you are thoroughly familiar with precautions required when
working around high voltage equipment. Follow appropriate safety precautions.
Insert
the module into the I/O base by carefully pushing the module into the
slot. When the module is fully seated in the slot, tighten the captive screws
at the top and bottom to hold the module in place. T
o remove the module
from the I/O base, loosen the captive screws, then remove the module from
the I/O base. Be careful not to damage the connector card at the back of the
module when inserting or removing the module.
Inserting the
Module Into the
I/O Base
