Siemens Simatic 6ES7132-4HB01-0AB0 User Manual

Properties
1.1 Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Digital electronic module 2RO NO DC24..120V/5A, AC24..230V/5A (6ES7132-4HB01-0AB0)
Manual, 04/2007, A5E01077282-01
9
Block diagram






/
0
3
3
)URPSURGXFWOHYHORIWKH52129'&9$&$WKHLQWHUQDO
EULGJHEHWZHHQWHUPLQDOVDQGLVQRWLQVWDOOHG,I\RXUHTXLUHWKLVEULGJHLWFDQEH
UHSODFHGE\DQH[WHUQDOEULGJHEHWZHHQWHUPLQDOVDQG
(76
EDFNSODQH
EXV
FLUFXLW
%DFNSODQHEXV
3RODULW\UHYHUVDO
SURWHFWLRQ

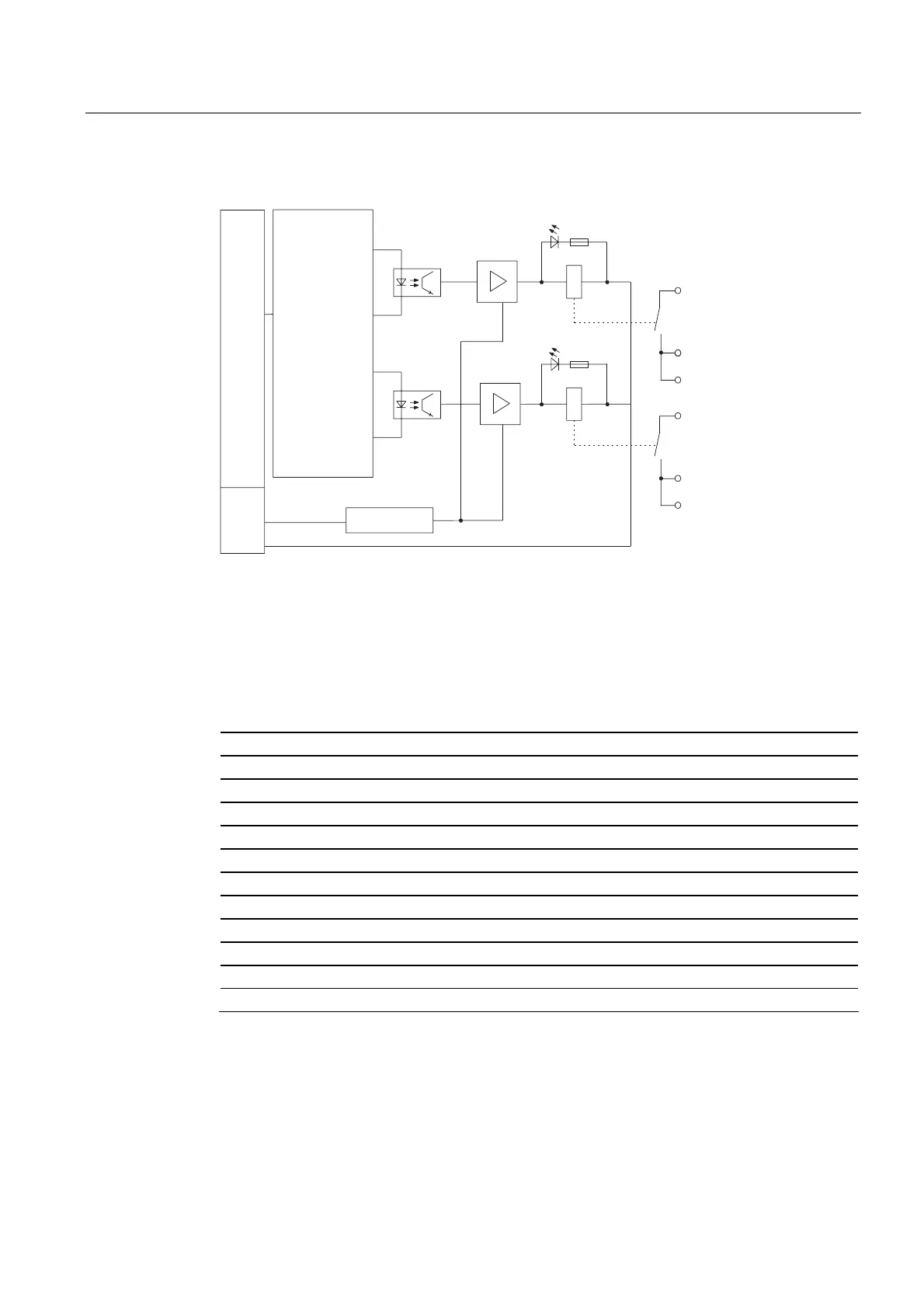

Figure 1-1 Block diagram of the 2RO NO DC24..120V/5A, AC230V/5A
Technical data 2RO NO DC24..120V/5A, AC230V/5A (6ES7132-4HB01-0AB0)
Dimensions and weight
Width (mm) 15
Weight Approx. 50 g
Module-specific data
Supports isochronous operation No
Number of outputs 2
Length of cable
• Unshielded
Max. 600 m
• Shielded
Max. 1,000 m
Parameter length 3 bytes
Address space 1 byte
Address space (packed) 2 bits

Siemens Simatic 6ES7132-4HB01-0AB0 Specifications

General

Brand	Siemens
Model	Simatic 6ES7132-4HB01-0AB0
Category	Control Unit
Language	English
