BusAdapter BA 2xSCRJ
6.2 Connecting
BusAdapter
30 Equipment Manual, 08/2020, A5E41449003-AB
BusAdapter BA 2×SCRJ installed
PROFINET connecting cable (fiber-optic cable)

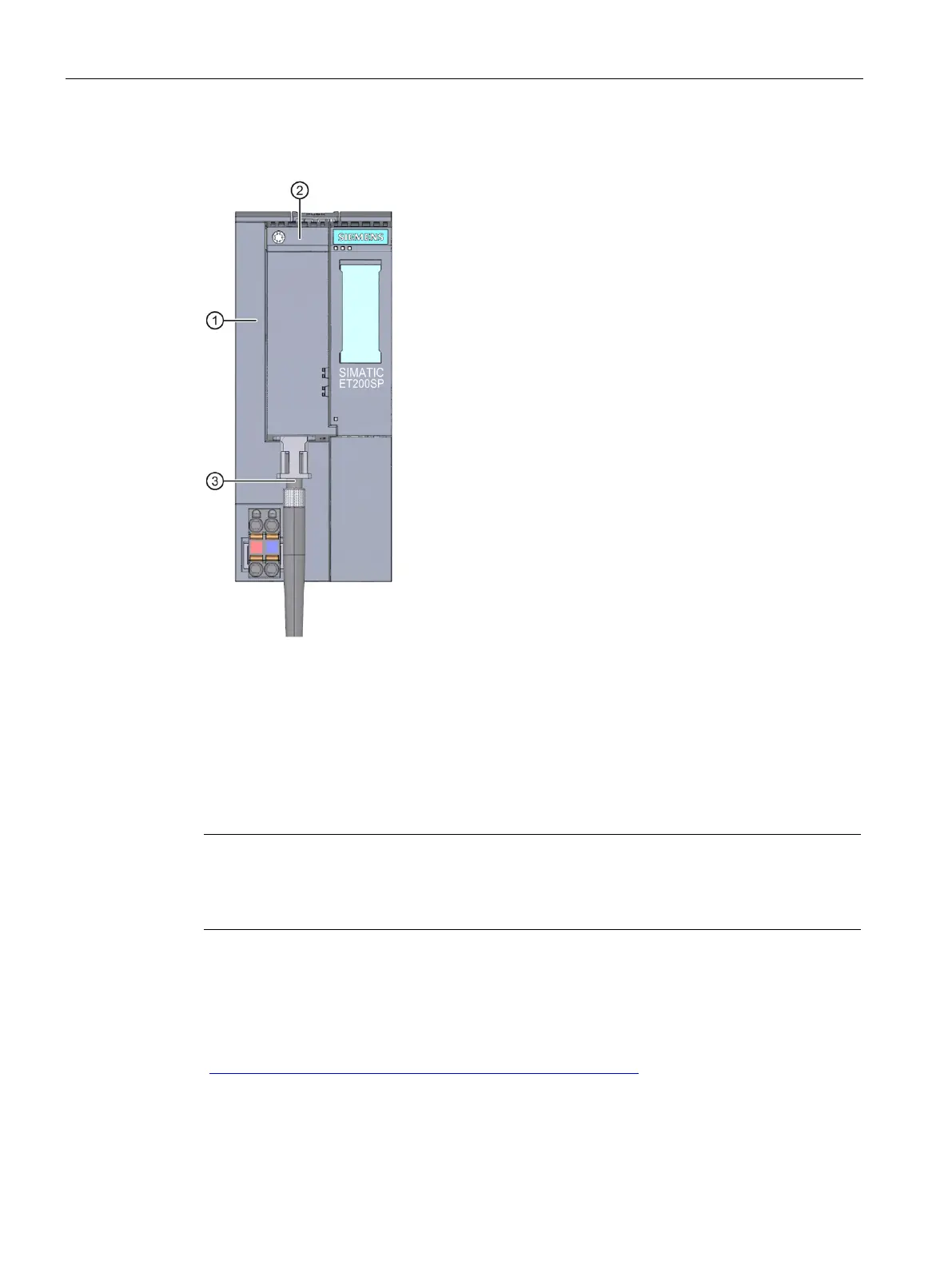

Figure 6-2 BusAdapter BA 2×SCRJ connected to interface module (using ET 200SP interface module
as an example)
Reusing used fiber-optic cables
-optic cores by the amount of the curved lengths and reassemble the
connectors. This will prevent any attenuation losses caused by re
-bent, heavily stressed
portions of the fiber-optic cores.
Reference
For more information on the installation guidelines for fiber-optic cables, refer to the SIMATIC
NET PROFIBUS Network Manual
(https://support.industry.siemens.com/cs/de/de/view/1172302).
