BusAdapter BA 2xM12
8.2 Connecting
BusAdapter
Equipment Manual, 08/2020, A5E41449003-AB
43
• Siemens pre-assembled connector/cable M12 D-coded without push/pull up to a
maximum length of 15 m:
– IE Connecting Cable M12-180/M12-180 0.3M (6XV1870-8A E30)
– IE Connecting Cable M12-180/M12-180 0.5M (6XV1870-8A E50)
– IE Connecting Cable M12-180/M12-180 1M (6XV1870-8A H10)
– IE Connecting Cable M12-180/M12-180 1.5M (6XV1870-8A H20)
– IE Connecting Cable M12-180/M12-180 2M (6XV1870-8A H30)
– IE Connecting Cable M12-180/M12-180 3M (6XV1870-8A H30)
– IE Connecting Cable M12-180/M12-180 5M (6XV1870-8A H50)
– IE Connecting Cable M12-180/M12-180 10M (6XV1870-8A N10)
– IE Connecting Cable M12-180/M12-180 15M (6XV1870-8A N15)
• Siemens pre-assembled connector/cable M12 D-coded without push/pull up to a
maximum length of 100 m:
– Currently only available as a custom made solution. Mr. Hertlein (Tel.: +49 (172)
3172810, juergen.hertlein@siemens.com) is the main contact person for passive
components that are not available as standard equipment in the catalog. He
implements all custom-made solutions.
Please refer to the specifications in the PROFINET Installation Guide
(https://www.profibus.com/).

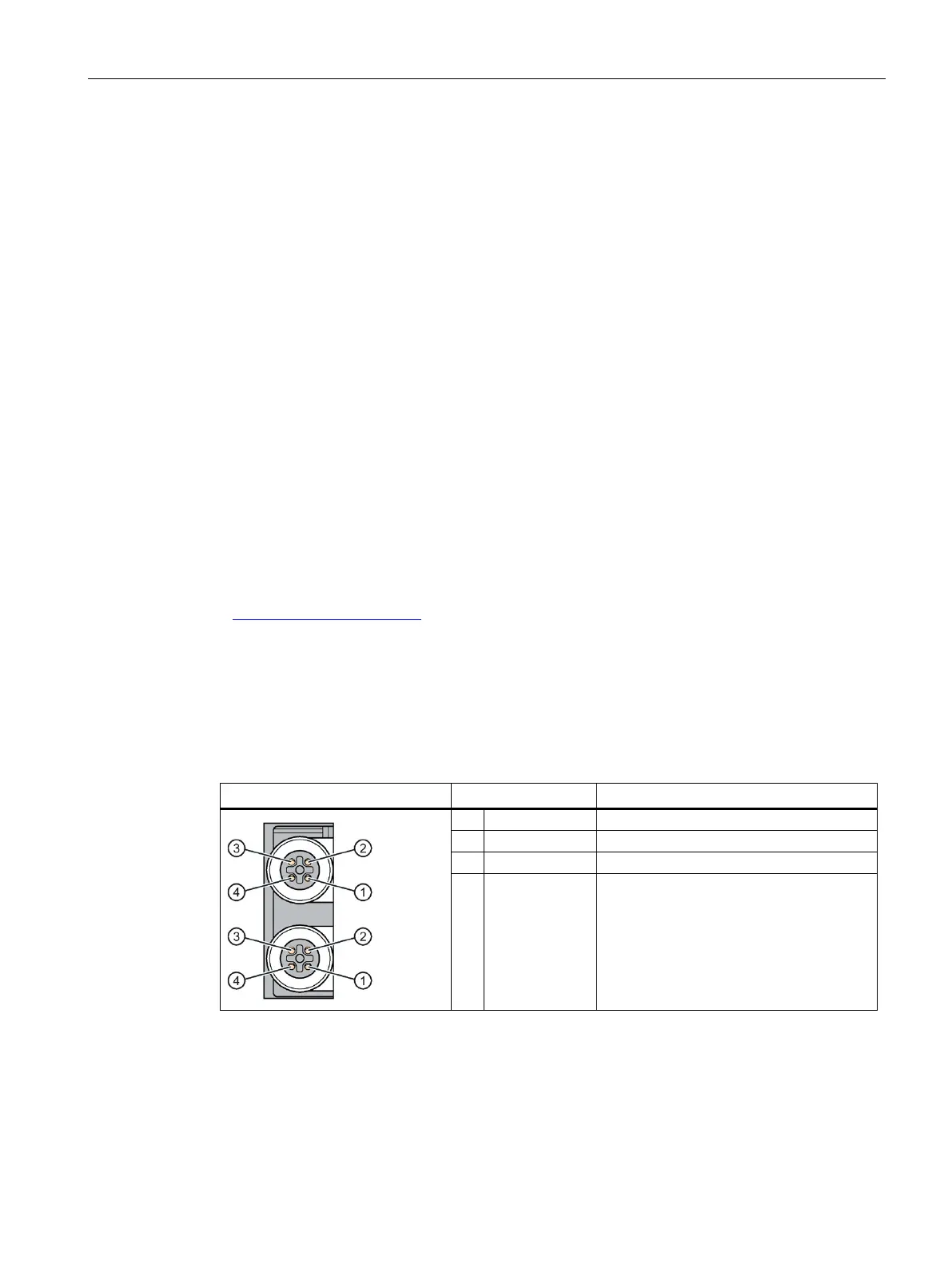

Pin assignment
The following table shows the signal name and description of the pin assignment of the
BusAdapter BA 2×M12.
Table 8- 1 Pin assignment PROFINET IO with BusAdapter BA 2×M12
