Connecting Cables
B.1 RS 232C interface of the CP 340–RS 232C
PtP coupling and configuration of CP 340
170 Manual, 04/2011, A5E00369892-03
RS 232C Connecting Cable (S7 (CP 340) - DR 2xx)

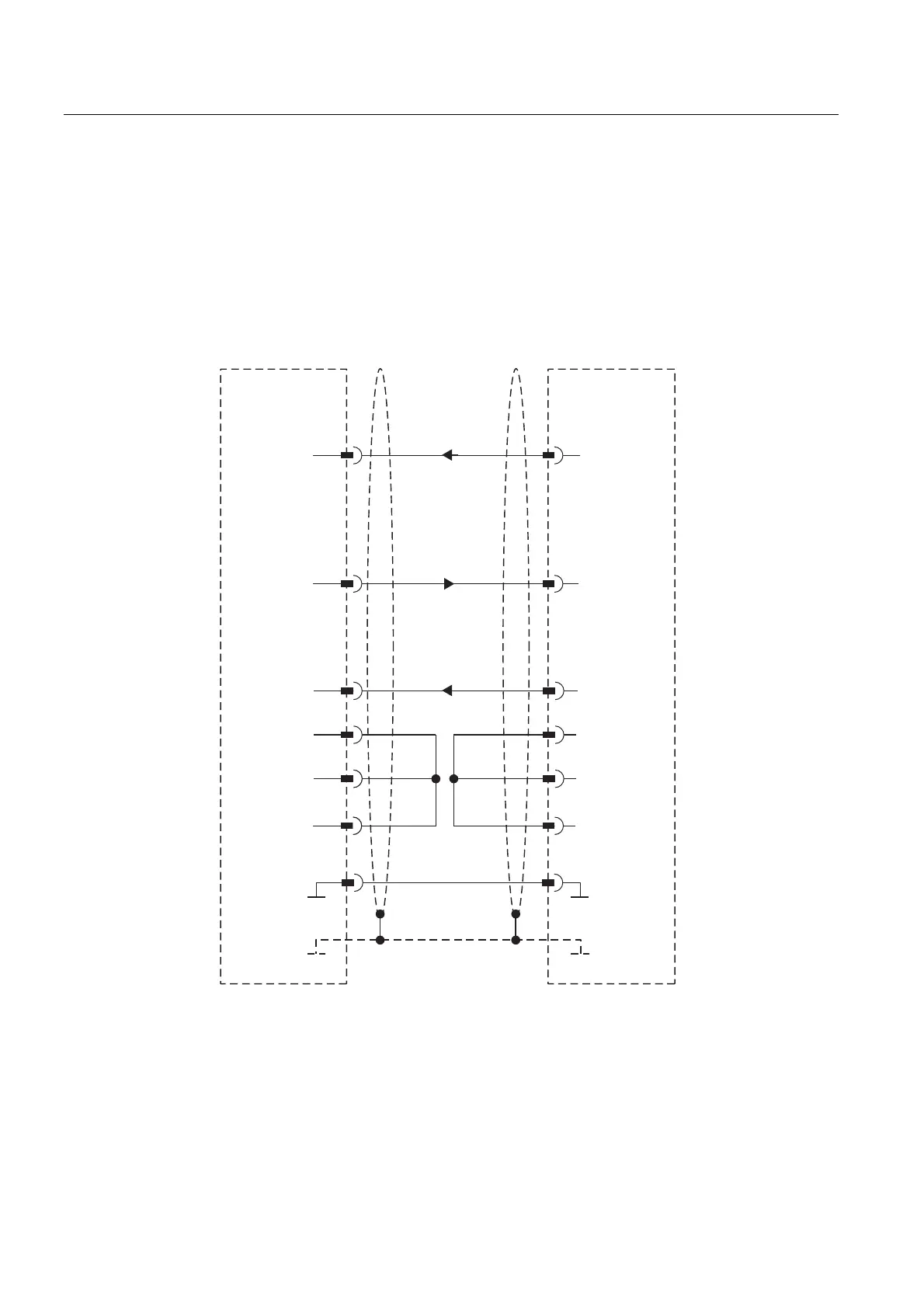

The figure below illustrates the connecting cable for a point-to-point connection between a
CP 340 and a printer DR 2xx with serial interface.
For the connecting cable you will require the following female/male connectors
● At the CP 340 end: 9-pin sub D socket
● With DR 2xx: 25-pin sub-D male connector
5[' 7['
7[' 5['
&76 5($'<
'65 '75
'75 '65
'&' '&'
*1' *1'
&3
&DEOHW\SH
/,<&<[
3ULQWHU
5HFHLYHU
6HQGHU
6HQGHU
5HFHLYHU
&DVLQJVKLHOG &DVLQJVKLHOGG
Figure B-5 RS 232C Connecting Cable CP 340-DR2xx
