Connecting Cables
B.1 RS 232C interface of the CP 340–RS 232C
PtP coupling and configuration of CP 340
Manual, 04/2011, A5E00369892-03
171
RS 232C Connecting Cable (S7 (CP 340) - IBM-Proprinter (PT 88))
The figure below illustrates the connecting cable for a point-to-point connection between a
CP 340 and an IBM-Proprinter with serial interface (PT 88 or IBM compatible printer).
For the connecting cable you will require the following female/male connectors
● At the CP 340 end: 9-pin sub D socket
● With IBM Proprinter: 25-pin sub-D male connector
5[' 7[' 
7[' 5[' 
&76 5($'< 
'65 '75 
'75 '65 
'&' '&' 
*1' *1' 
&3
&DEOHW\SH
/,<&<[
3ULQWHU
5HFHLYHU
6HQGHU
6HQGHU
5HFHLYHU
&DVLQJVKLHOG &DVLQJVKLHOGG

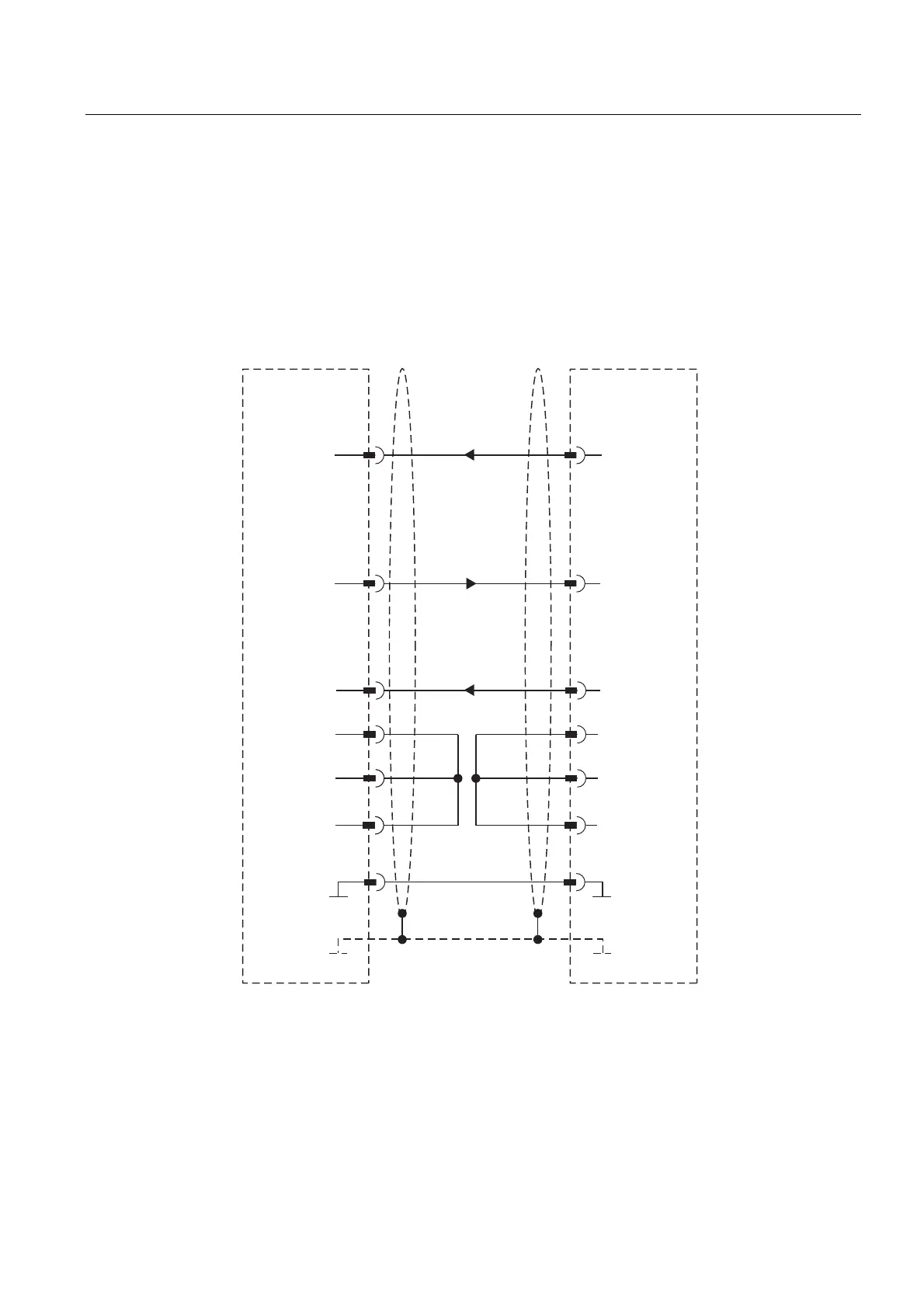

Figure B-6 RS 232C connecting cable CP 340 - IBM Proprinter
