Connecting Cables
B.1 RS 232C interface of the CP 340–RS 232C
PtP coupling and configuration of CP 340
172 Manual, 04/2011, A5E00369892-03

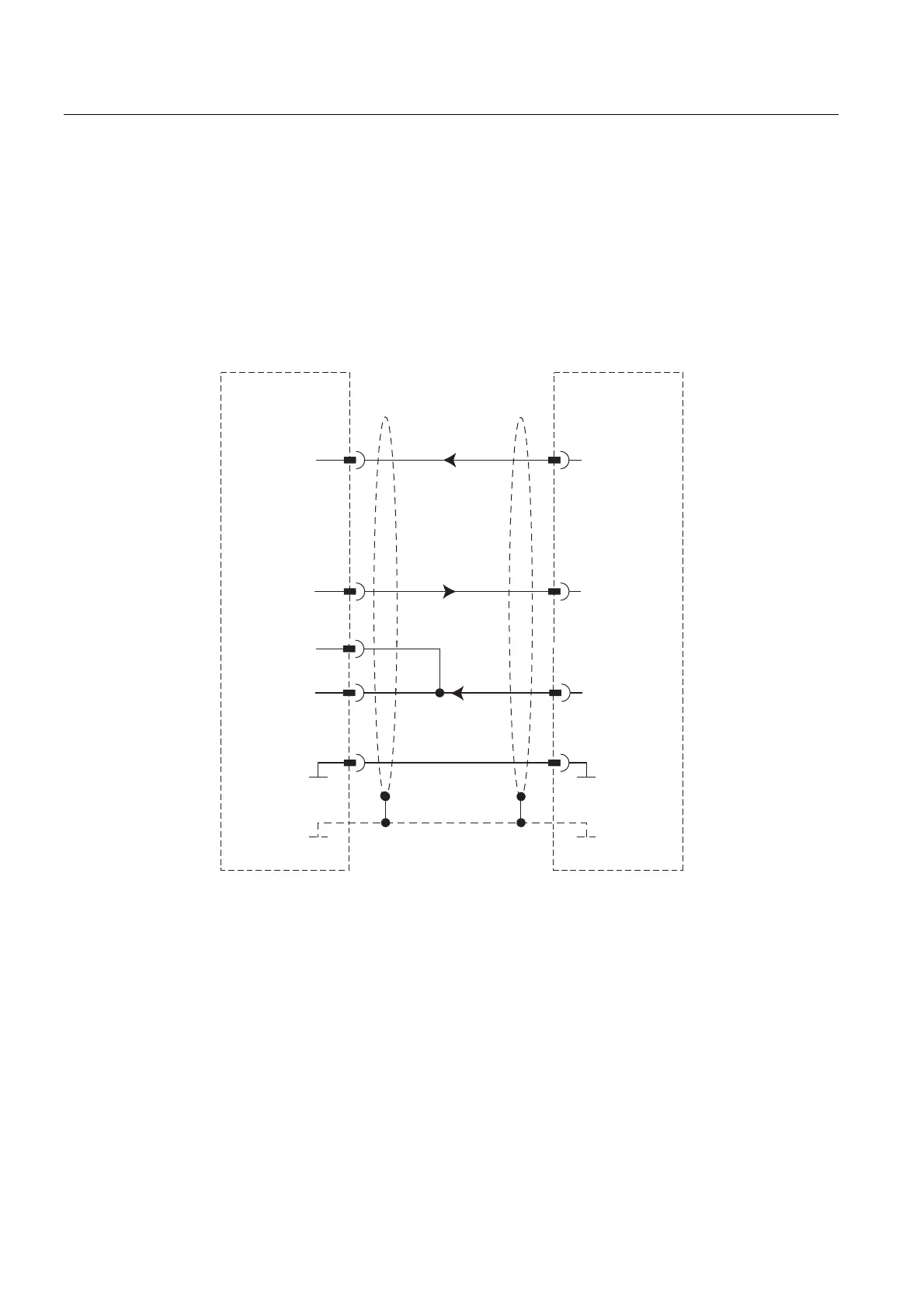

RS 232C connecting cable (S7 (CP 340) - laser printer)
The figure below illustrates the connecting cable for a point-to-point connection between a
CP 340 and a laser printer with a serial interface (PT 10 or Laserjet series II).
For the connecting cable you will require the following female/male connectors
At the CP 340 end: 9-pin sub D socket
With IBM Proprinter: 25-pin sub-D male connector
&3
5['7['
7['5['
*1'*1'
&76
'65'75
3ULQWHU
5HFHLYHU
5HFHLYHU
6HQGHU
6HQGHU
&DVLQJVKLHOG &DVLQJVKLHOG
&DEOHW\SH
/,<&<[
Figure B-7 RS 232C connecting cable CP 340 - laser printer
