3. For every IO controller that has access to modules of the “Shared Device”, you
need to set the same send clock:
a. In project 1 / project 2, mark the interface of the IO controller in the network
view.
b. In the inspector window, navigate to:
“PROFINET interface” > “Advanced options” > “Real time settings” > “IO
communication”.
In the field “Send clock” of the IO controller, enter the shared send clock
with the IO device (see Fig. 3-8).

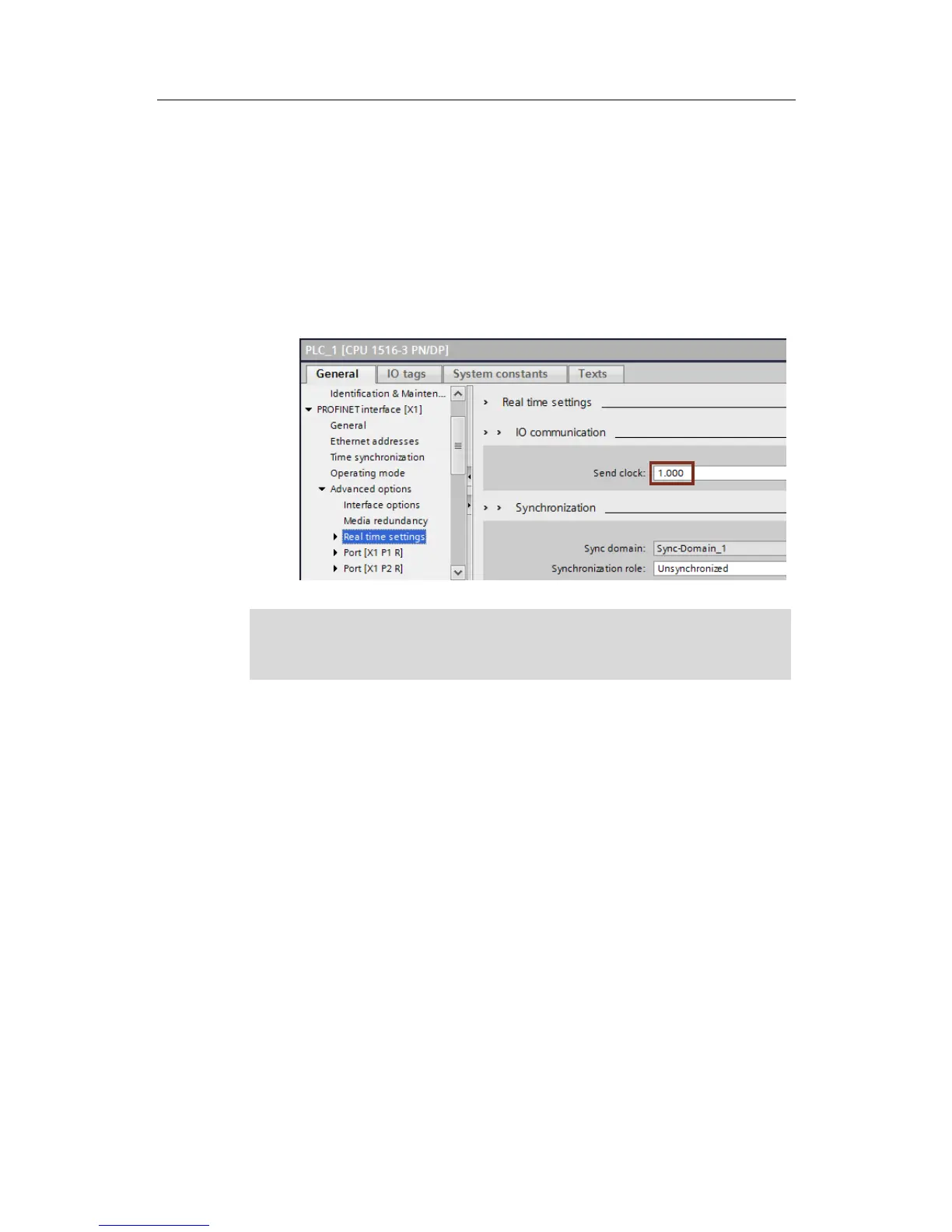

Figure 3-8
Note
If you configure all IO controllers that have access to the “Shared Device” in
STEP 7, then shorter send clocks than supported by the “Shared Device” can be
set at the IO controller (send clock adaption).

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
