3.2.3 Adjusting the real time settings
To make sure that all IO controllers and “Shared Devices” are operated with the
appropriate send clock and the update times are correctly calculated due to the
communications burden, you need to adjust and check the following settings.
Proceed as follows:
1. In project 1 / project 2, mark the interface module of the “Shared Device” in the
network view.
2. In the inspector window, navigate to:
“PROFINET interface” > “Advanced options” > “Real time settings” > “IO cycle”.
In the “Shared Device” area, set the number of project-external IO controllers.

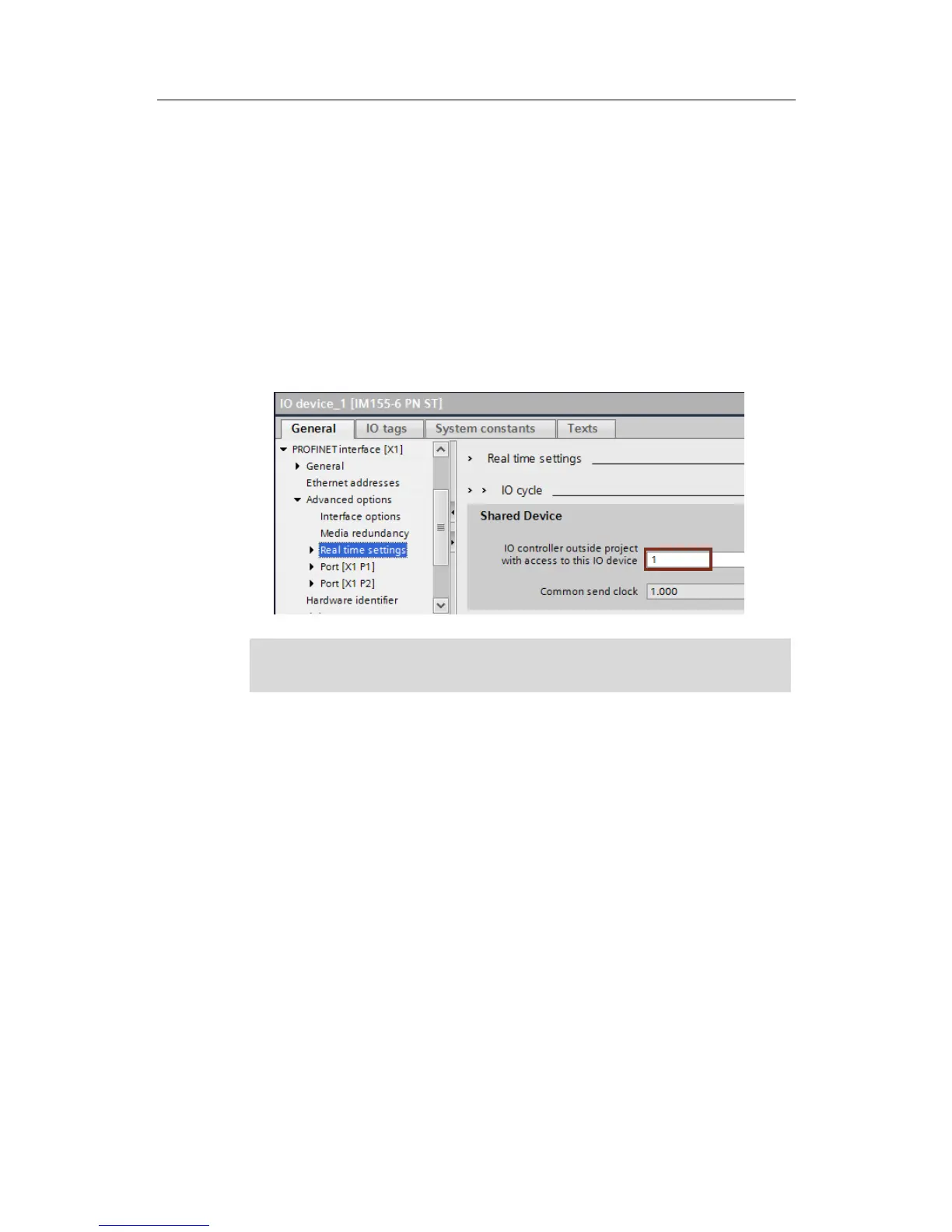

Figure 3-7
Note
The maximum possible number of IO controllers depends on the IO device and
is store in the GSD file.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
