Siemens SIMATIC ET 200SP Configuration Manual

3 Configuration
SharedDeviceKonfig
Entry ID: 109741600, V1.0, 11/2016
8
 Siemens AG 2016 All rights reserved
3 Configuration
3.1 Infrastructure information
Required components
For the use of the “Shared Device” function, the following components are
required:
 A CPU 1516-3 PN/DP (Project 1)
 A CPU 1511-1 PN (Project 2)
 Two SIMATIC MEMORY CARDs
 AN ET 200SP station as IO device with “Shared Device” function with the IM
155-6PN ST interface module and any modules (DI, DO, AI, AO, ...)
 A 24V power supply with cable connector and terminal block plug (the modules
can also be operated with a shared power supply)
 DIN rail with mounting accessories for the S7-1500
 A PG/PC with the configuration tool “STEP 7 V13 SP1” installed
Software package
Install STEP 7 V13 SP1 on your PC/PG.
Setting up the infrastructure
Connect all the components involved in this solution via the integrated PROFINET
interface.

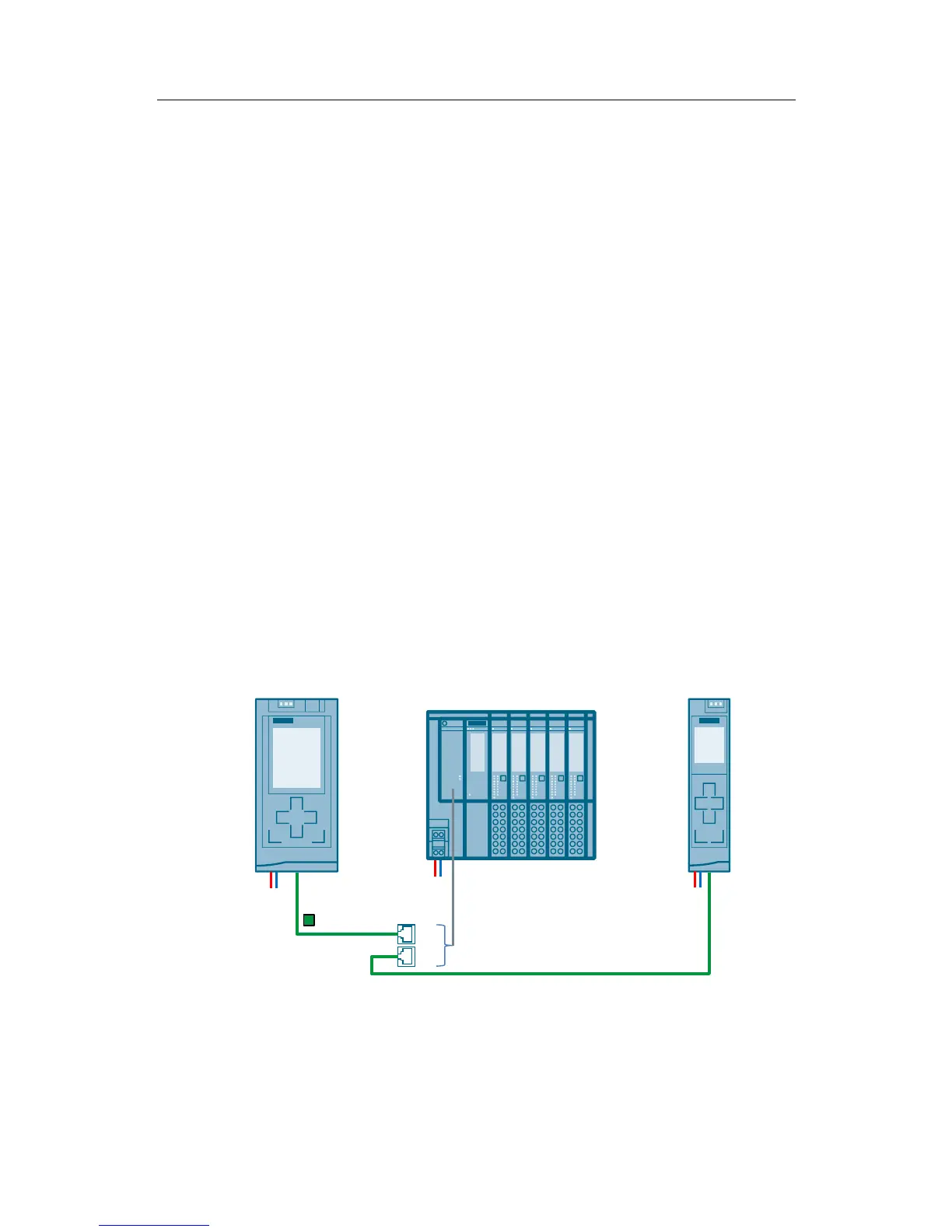

Figure SharedDeviceKonfig-109741600
P1R
P2R
PROFINET
S7-1516-3 PN/DP S7-1511-1 PN
ET 200SP with IM 155-6PN ST
24 V
24 V
24 V

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
