Mounting and connection
4.3 Mounting and connecting the TP 177micro
OP 73micro, TP 177micro (WinCC flexible)
56 Operating Instructions, 09/2007, 6AV6691-1DF01-0AB0
The HMI device automatically switches to "Transfer" mode during initial startup if no
project is already loaded on the device. The following dialog appears:

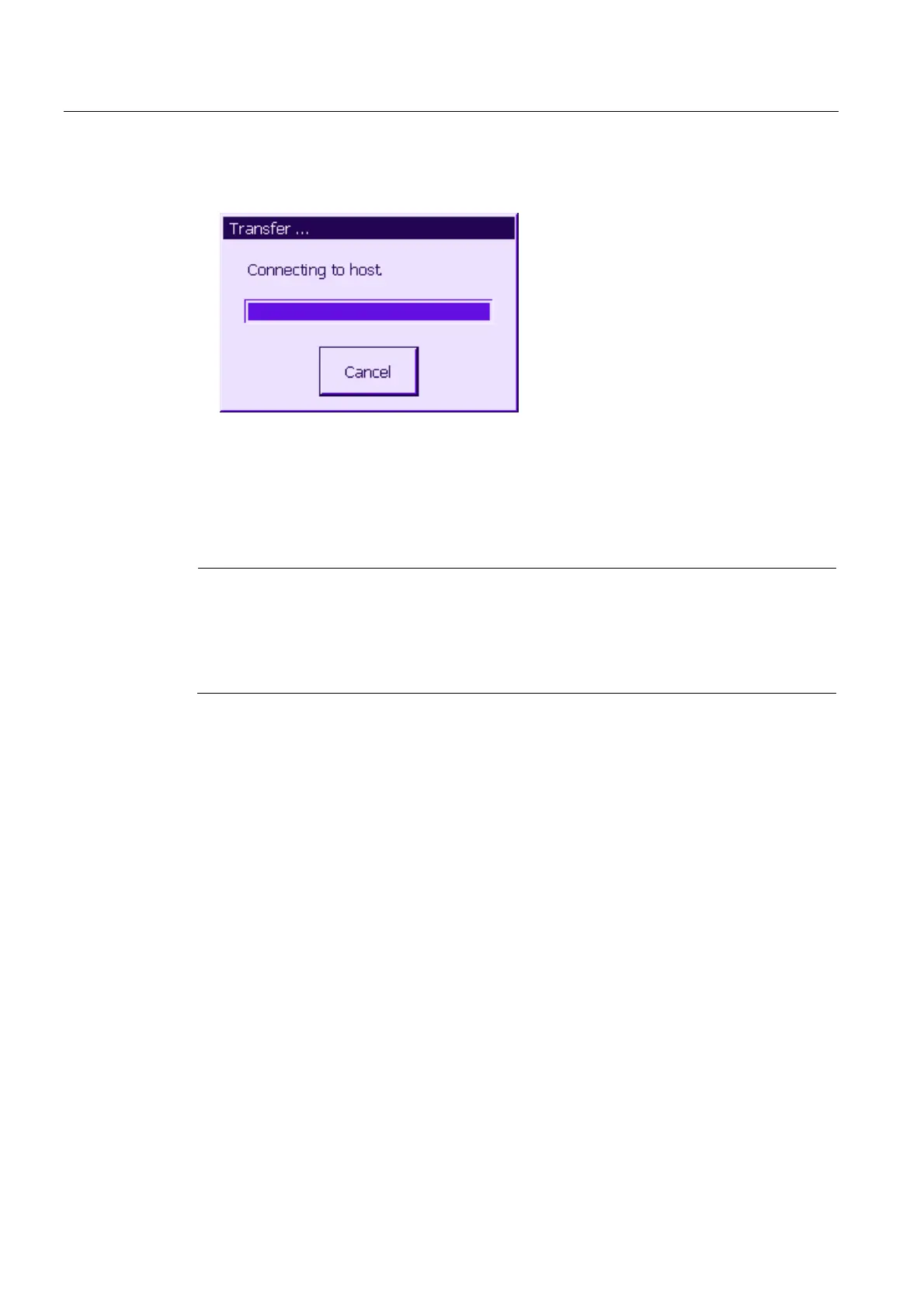

Figure 4-19 "Transfer" dialog
3. Touch "Cancel" to stop the transfer.
Result
The Loader appears again.
Note
When restarting the system, a project may already be loaded on the HMI device. The system
then skips "Transfer" mode and starts the project.
Use the relevant operator control object to close the project.
Further information on this may be available in your plant documentation.
Function test
Perform a function test following commissioning. The HMI device is fully functional when one
of the following states is indicated:
● The "Transfer" dialog is displayed.
● The Loader is displayed.
● A project is started.
Switching off the HMI device
Options for switching off the HMI device:
● Switch off the power supply.
● Disconnect the terminal block from the HMI device.
