Siemens SIMATIC HMI series Getting Started

Replacing an HMI device
2.3 Interfaces
Migration Guide Comfort Panels
Getting Started, 03/2011, A5E03478626-01
17

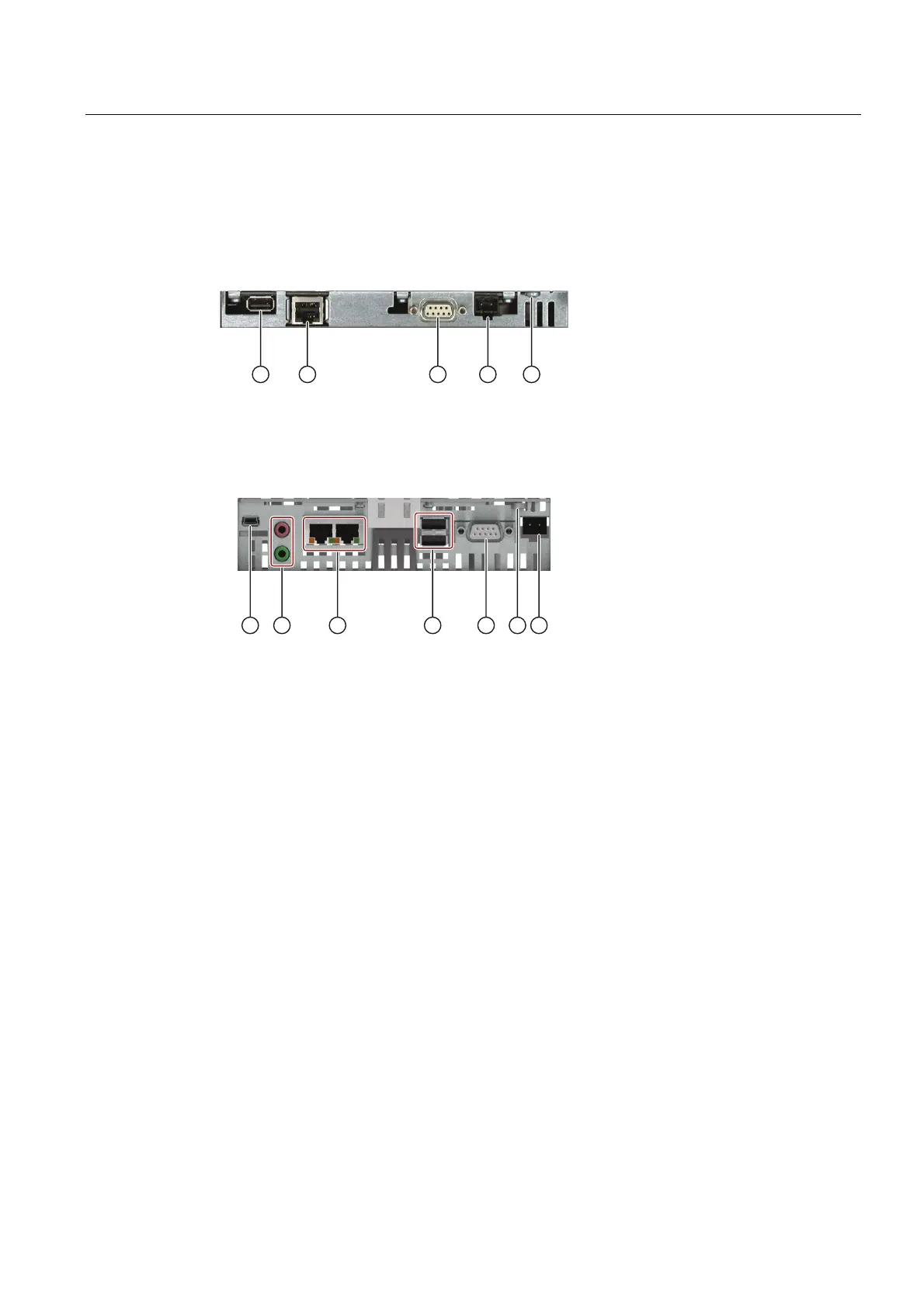

The following figure shows the interfaces on the predecessor devices of the Comfort HMI
devices KP/TP700 Comfort to KP/TP1200 Comfort.

   
   
03
03.H\7RXFK
03.H\7RXFK
73%
73
23%
23
73&RPIRUW
73&RPIRUW
73&RPIRUW
.3&RPIRUW
.3&RPIRUW
.3&RPIRUW
① USB type A
The predecessor devices MP 277 8" and MP 277 10" have two USB type A connectors
② PROFINET (Ethernet)
③ PROFIBUS (Sub-D RS 422/485)
④ Mains
⑤ Connection for equipotential bonding (grounding)
⑥ USB type mini B
⑦ Audio Line IN / OUT

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
