Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
108 Operating Instructions, 07/2017, A5E36770603-AB

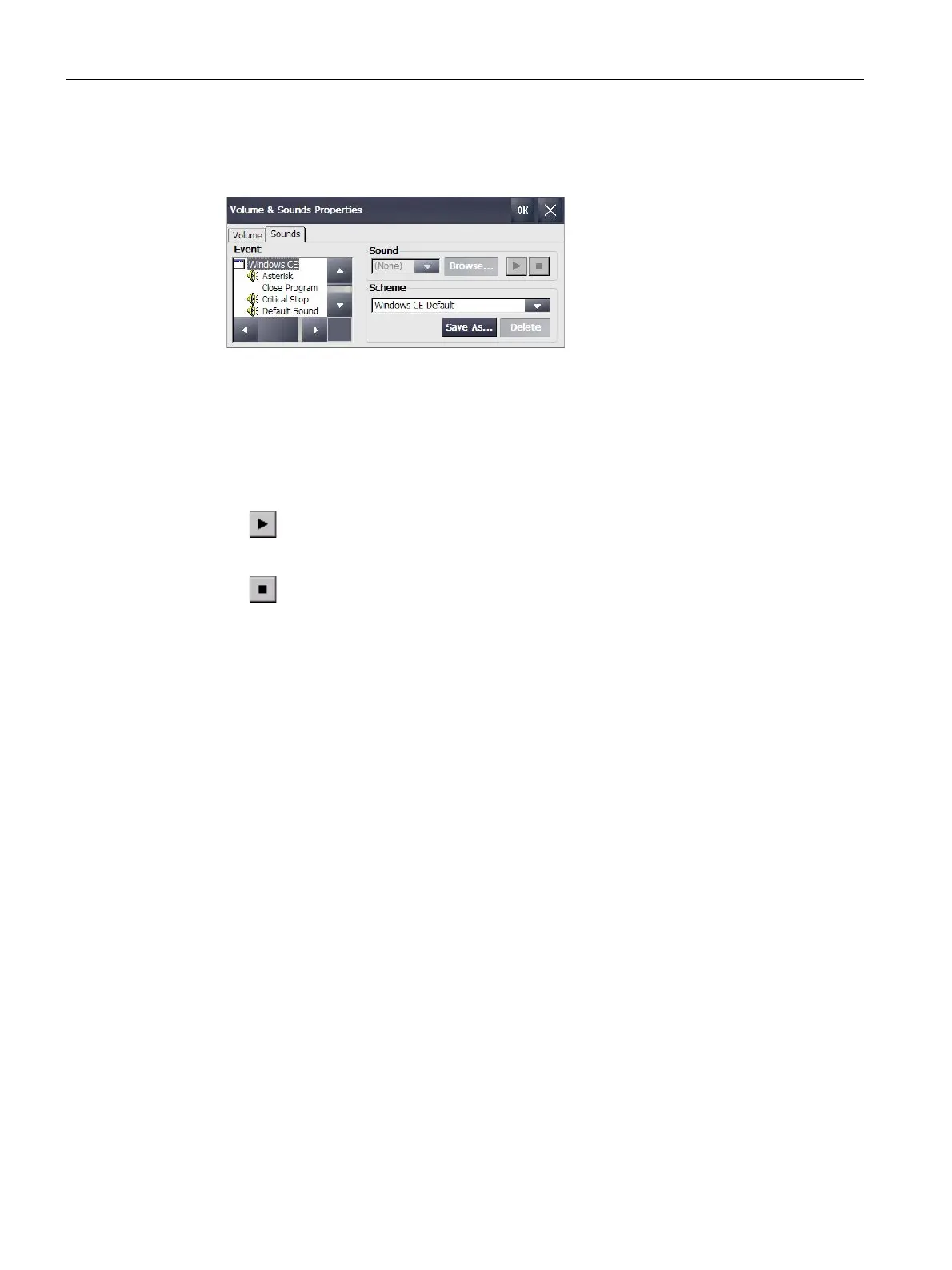

Assigning sounds and events
1. Change to the "Sound" tab.
2. Under "Event", select the event to which you want to assign a sound.
Events to which a sound is already assigned are marked with a loudspeaker symbol.
3. Select the desired sound for the event under "Sound":
– Select either a standard sound or use "Browse" to select a "*.WAV" file from the file
system.
– Test the sound with "Play", if required.
– Stop the output with "Stop", if required.
4. Confirm your entries with "OK".
Sounds and properties of acoustic signals are set.

Siemens SIMATIC HMI TP1200 Comfort Specifications

General

Display Size	12.1 inches
Resolution	1280 x 800 pixels
Power Supply	24 V DC
Display Type	TFT LCD
Brightness	400 cd/m²
Operating Temperature	0 to 50 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	USB, RS422/RS485
Protection Class	IP65 (front)
Touch Technology	Projected capacitive touch (PCAP)
